Connecting up 03
13
En
Engli
sh
Françai
s
E
spañol

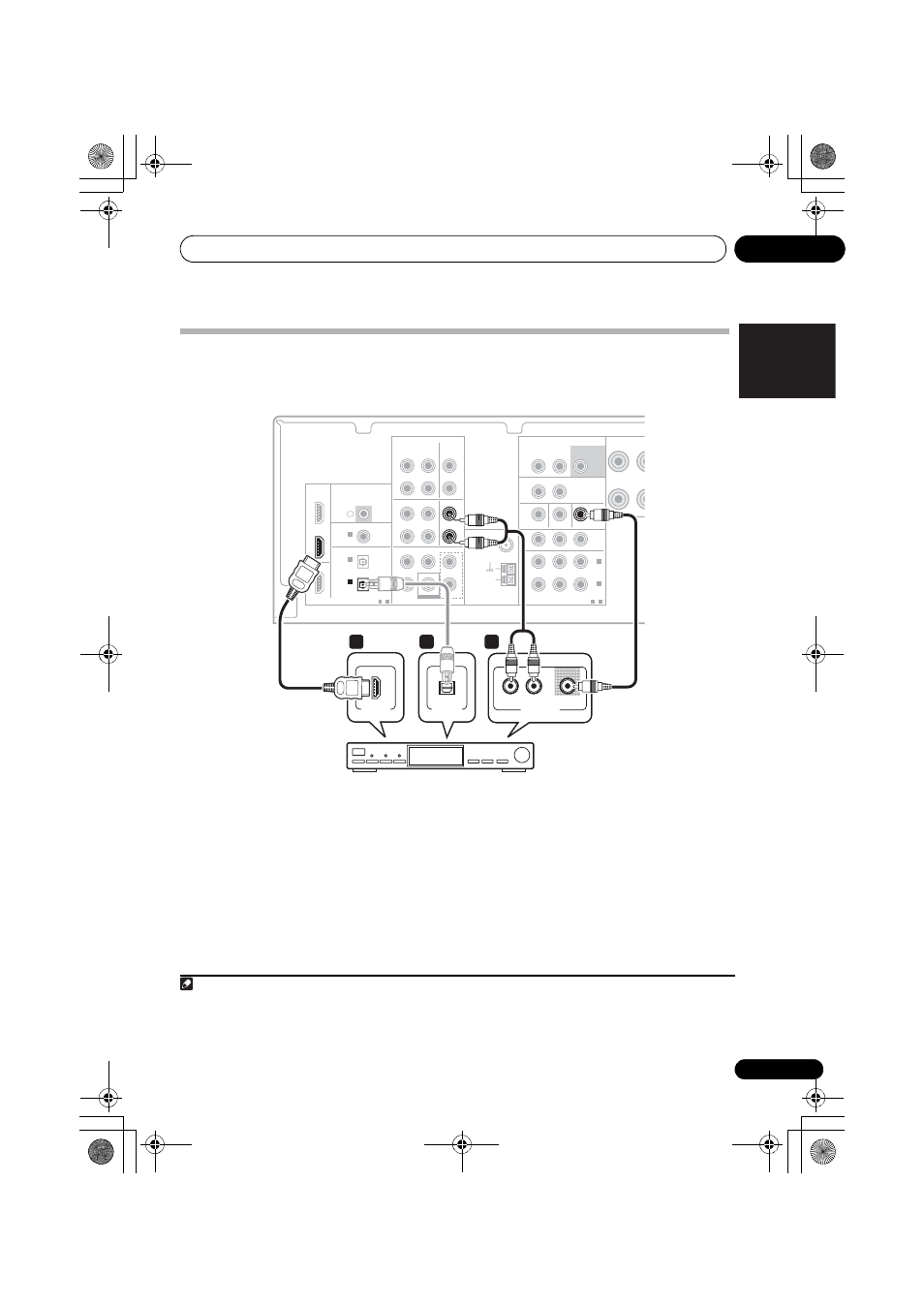

Connecting a satellite receiver or other digital set-top box
Satellite and cable receivers, and terrestrial digital TV tuners are all examples of so-called ‘set-top
boxes’.
1 If your set-top box has an HDMI output,
connect it to an HDMI TV/SAT IN on this
reciever.
If your set-top box does not have an HDMI
output but a digital output, connect it to a
digital input on this receiver.
The example shows an optical connection to
the DIGITAL OPTICAL IN 1 (CD-R/TAPE)
input.
1
2 Connect a set of audio/video outputs on
the set-top box component to the TV/SAT
AUDIO and VIDEO inputs on this receiver.
2
Use a stereo RCA phono cable for the audio
connection and a standard RCA video cable for
the video connection. 3
AUDIO AUDIO
DIGITAL COMPONENT VIDEO BD/DVD MULTI CH IN
BD/DVD IN
HDMI
ANTENNA
FM
UNBAL
75 Ω
AM
LOOP
FRONT
L
R
L
R
CENTER SURROUND
COAXIAL
(CD)
IN 1
(CD-R/TAPE)
IN 1
1 - 2
(DVR/VCR)
IN 2
(BD/DVD)
IN 1
(TV/SAT)
IN 2
OPTICAL
ASSIGNABLE
IR
ASSIGNABLE
1 - 2
ASSIGNABLE
OUT
OUT
Y P B P R
IN
FRONT
ZONE2 OUT
MONITOR OUT BD/DVD IN TV/SAT IN
R SUBWOOFER
PRE OUT
L R
DVR/VCR TV/SAT
OUT IN DVR/VCR VIDEO
L
R
OUT
TV/SAT
IN
OUT
IN IN
IN
CD-R/TAPE CD
SUBWOOFER
IN L
R
HDMI
BD/DVD
IN
(CD-R/TAPE)
IN 1
TV/SAT IN
TV/SAT IN
DIGITAL OUT AUDIO/VIDEO OUT
VIDEO AUDIO R L
HDMI OUT
OPTICAL
1 1 2
STB
This receiver
Note
1 In this case, you’ll need to tell the receiver which digital input you connected the set-top box to (see Choosing the input signal
on page 34).
2 If you’ve already connected your TV to the TV/SAT inputs, simply choose another input. However, you’ll need to remember
which input you connected the set-top box to.
3 See Using the component video jacks on page 16 if your set-top box also has a component video output.
