How to mount the AW-RP400 in a rack
AW-RP400
320mm
1

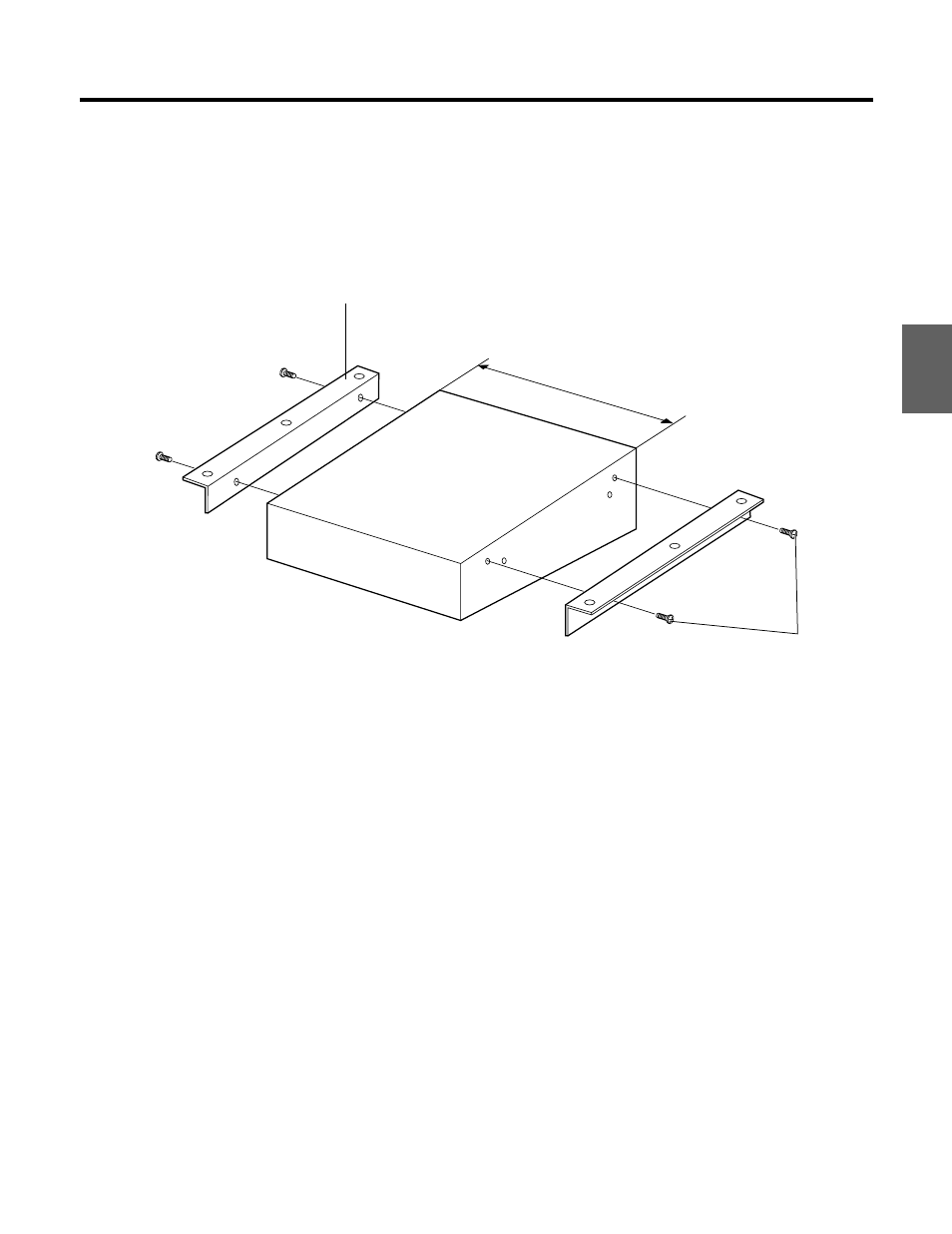

Use the accessory mounting screws (M4
!
8 mm) to attach the rack-mounting adaptors.
Rack-mounting adaptor
Accessory mounting
screws (M4
!
8 mm)
4 pcs
≥
The AW-RP400 is 320 mm wide. If it is to be installed in a full-size rack (which accommodates units totaling
420 mm in width), provide panels or other parts to supplement the AW-RP400’s width so that it will fill the
rack width-wise.
≥
If the AW-RP400 is joined to the AW-CB400, the resulting width will be equivalent to that of the full width of
the rack (which accommodates units totaling 420 mm in width).
