ParaBody Hip Sled System - Manual (Page 6)

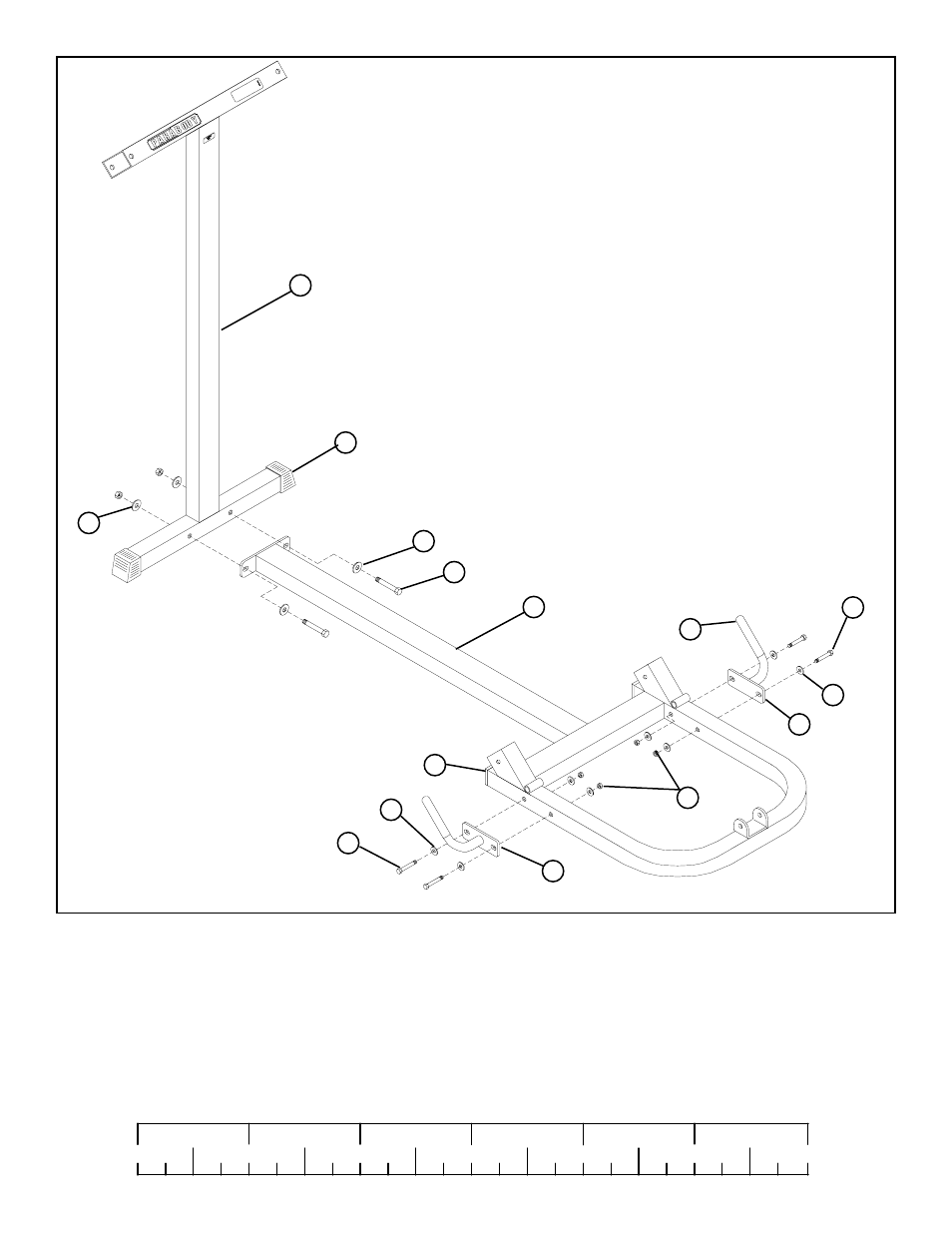

FIGURE 1
STEP 1:
• LOOSELY assemble the RIGHT (4) and LEFT HANDLES (5) to the BASE (1) on their respective sides using four 3/8 X 3” BOLTS (37),
eight 3/8” WASHERS (29), and four 3/8” LOCK NUTS (31) (DO NOT SECURELY TIGHTEN AT THIS TIME)
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
• SECURELY assemble the REAR UPRIGHT (6) to the BASE (1) as shown in FIGURE 1 using two 1/2 X 3-1/4” BOLTS (41), four
1/2” WASHERS (32), and two 1/2” LOCK NUTS (33).
6
6
33
31
5
29
26
23
28
32
1
4
3/8 X 3” 37
3/8 X 3” 37
29
41 1/2 X 3-1/4”
DO NOT SECURELY TIGHTEN
AT THIS TIME *
*
*
