Figure 12, Step 12 – ParaBody Hip Sled System User Manual
Page 16
FIGURE 12
STEP 12:
16
0
1
2
3
4
5
6
1/2
1/2
1/2
1/2
1/2
1/2

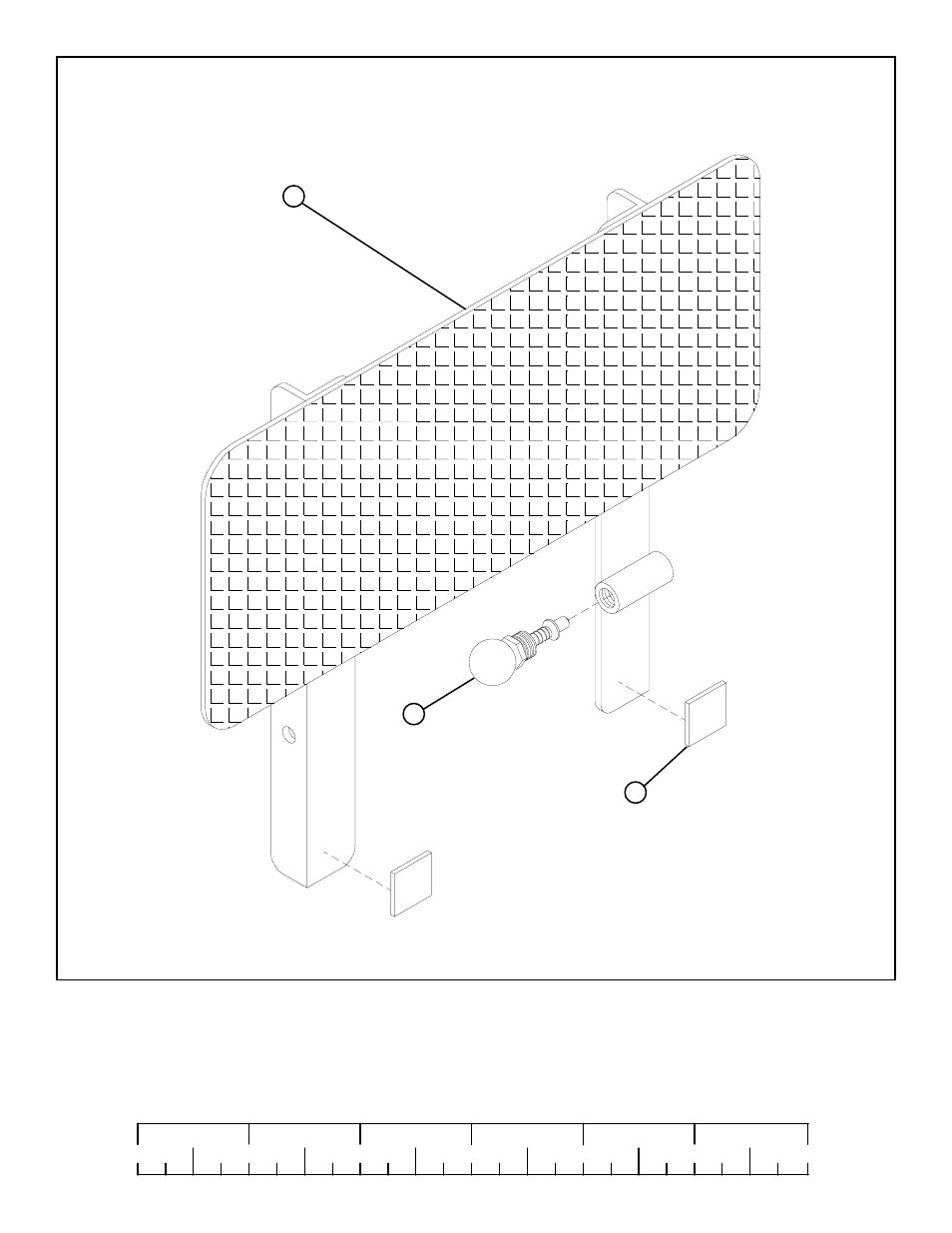

• Attach two 1-1/4” SQ. RUBBER BUMPERS (24) to the ends of the ANGLES of the FOOT PLATE (10) as shown in FIGURE 12.
• SECURELY assemble one 1/2” DIA. SPRING PIN (47) to the SPRING PIN HOUSING on the FOOT PLATE (10) as shown in
FIGURE 12. (!!! IMPORTANT !!! TIGHTEN THE NUT OF THE SPRING PIN SECURELY)
10
47
24
