STEP 10:
14
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
• SECURELY assemble both WEIGHT SUPPORT (13) and PAD SUPPORTS 93)to the CARRIAGE (16) as shown in FIGURE 10 using
two 1/2 X 4-1/2” BOLTS (43), two 1/2 X 3-1/4” BOLTS (41), eight 1/2” WASHERS (32), and four 1/2” LOCK NUTS (33).

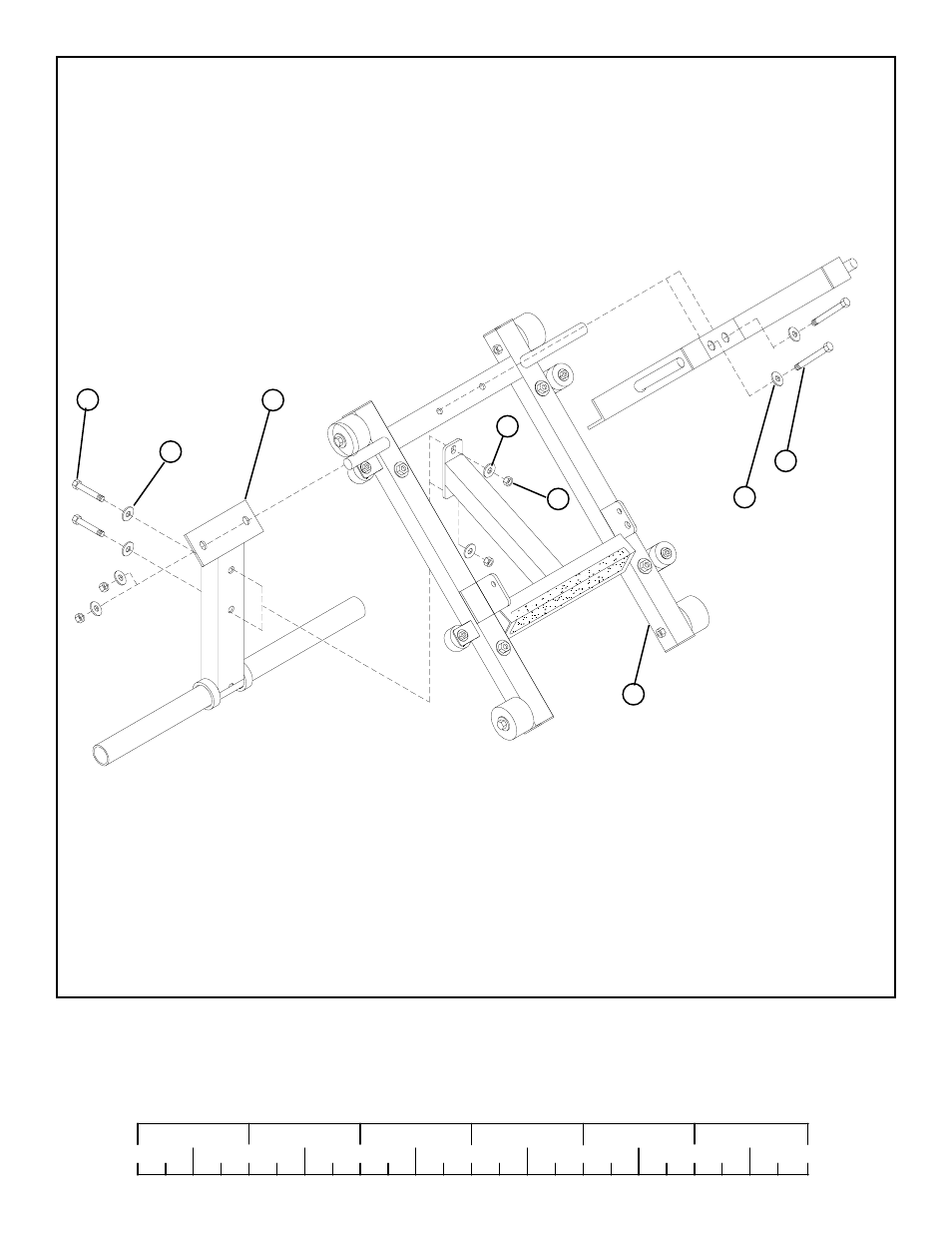

FIGURE 10
43 1/2 X 4-1/2”
41 1/2 X 3-1/4”
16
13
32 33
32
33
