Controls and their Functions

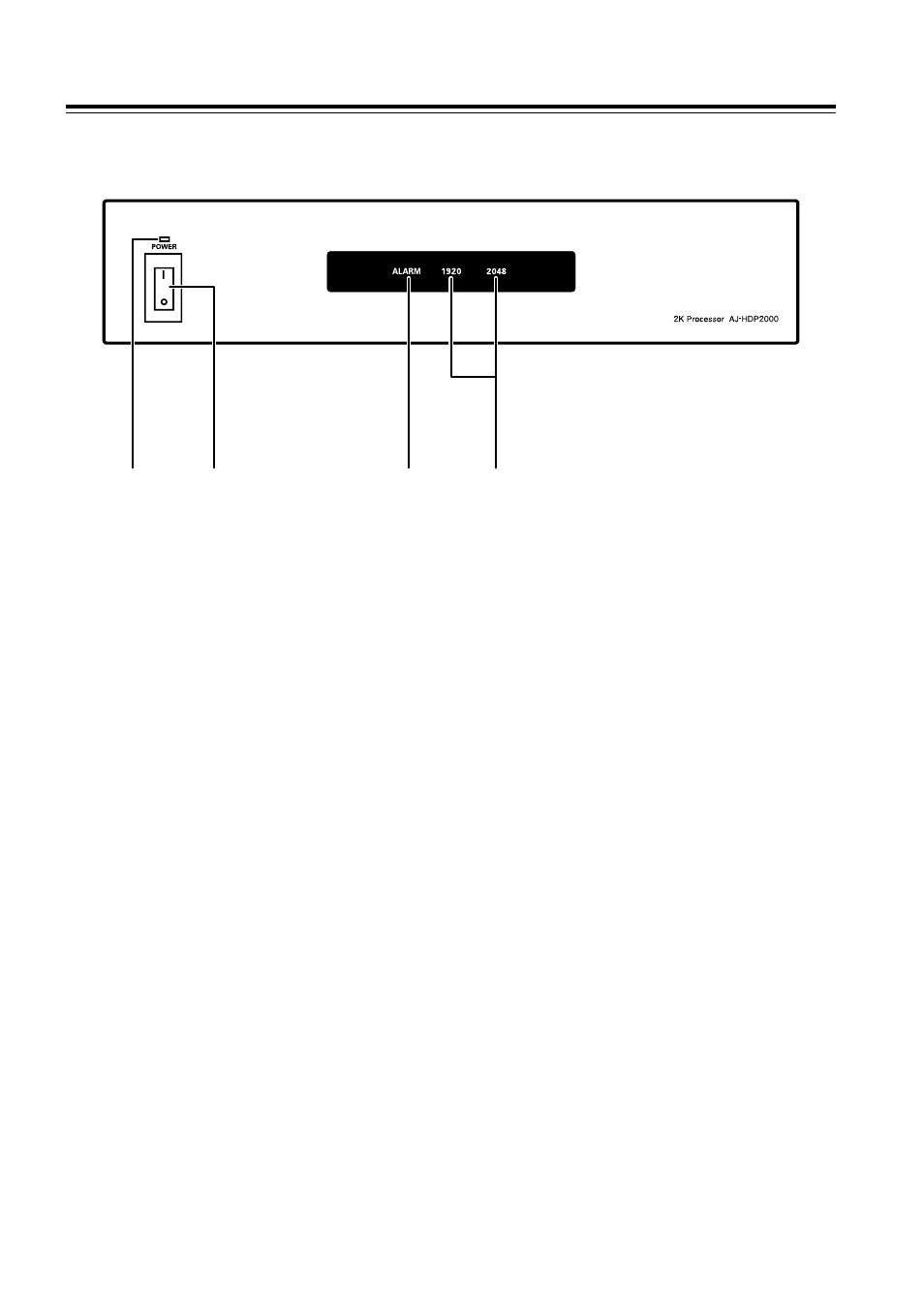

1. Front Panel

!1" Power Lamp

This lights when the power is turned on.

!2" Power Switch

When the ON side is pressed, the power is turned on; when
the OFF side is pressed, the power is turned off.

| : Press the “ | ” side of the power switch to turn the power

on.

±: Press the “ ± ” side of the power switch to turn the power

off.

!3" Alarm Lamp

This lights when a problem has occurred in the main unit,
making it impossible to guarantee operation. (Refer to the
messages on page 13.)

!4" Horizontal Sample Display Lamp

This displays the H sample of the video signal that is system
setting.

!2"

!1"

!3"

!4"
