Connection Check

After the regular system is connected, it is possible to
check which devices are connected to each other by
executing CONNECTION CHECK in the Front Panel
MENU of the HD-D5 VTR when you own more than
one unit of the 2K Processor and HD-D5 VTR.

All three LEDs of “ALARM”, “2048” and “1920”
repeatedly blink during the operation described on the
left. (For the regular system connection)

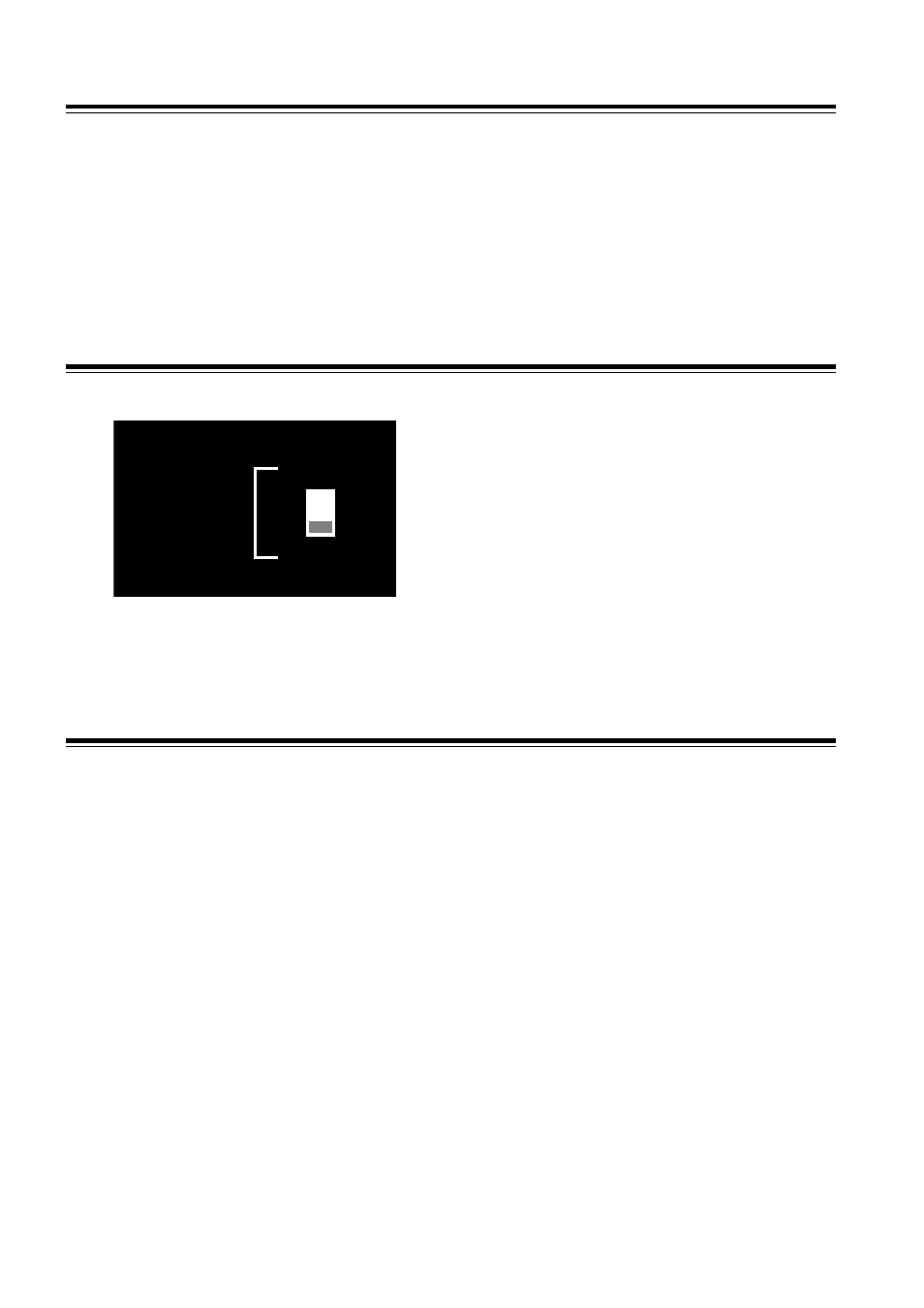

Service Switch (Rear)

Service Switch (only Use Service Maintenance)
This slide switch is only for service mode.
Please make sure slide OFF for Normal Operation.

Power On

For the power supply to each unit, construct 2K
SYSTEM and then turn on the power to the 2K
Processor, before turning on the power to the HD-D5
VTR.

SERVICE

OFF
