ENGLISH – 29
Getting Started

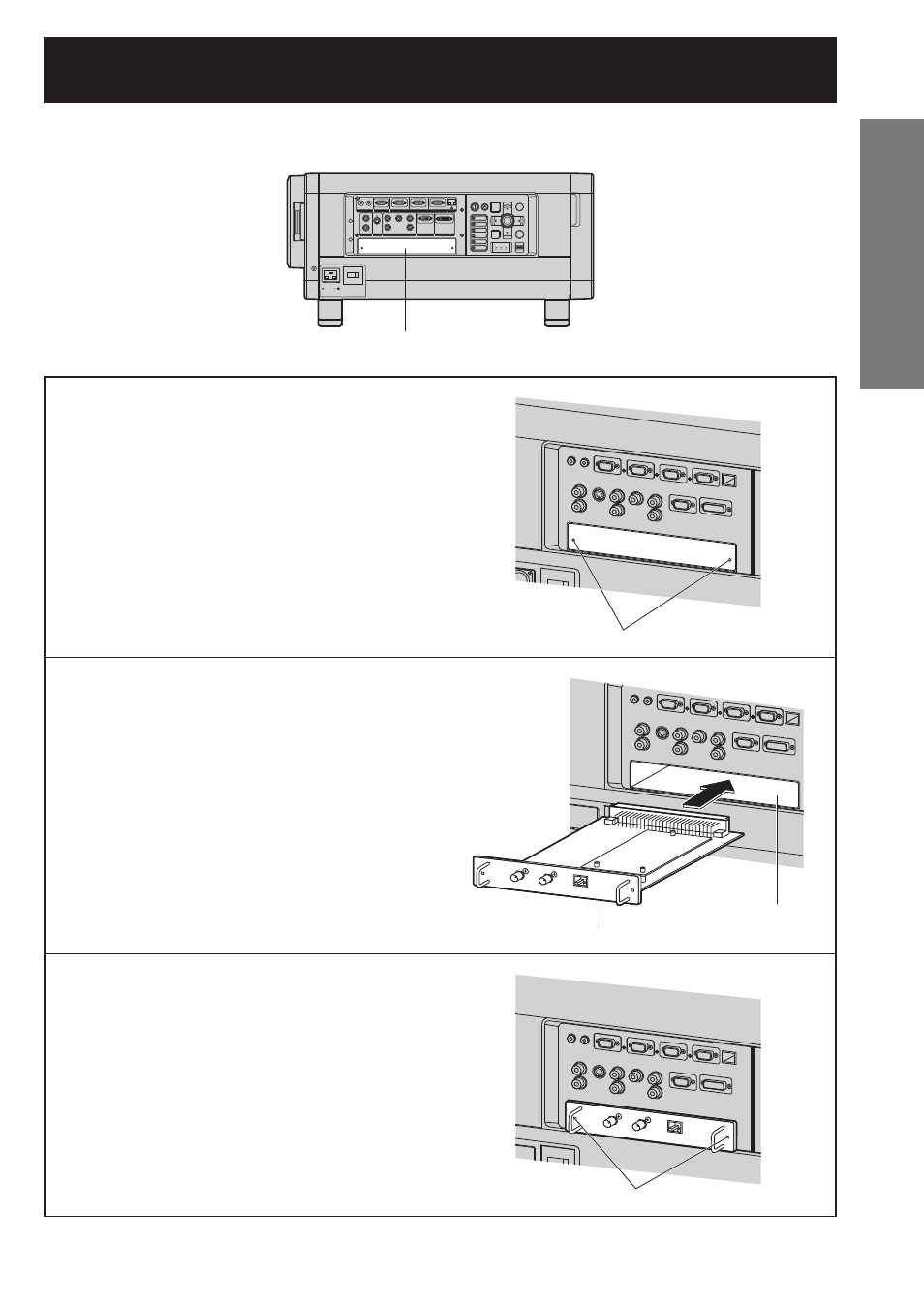

Procedure of installation
„
Disconnect the power before installing the input module.
Slot Cover
MAIN POWER AC IN OFF ON
IN OUT RS-232C IN RS-422 IN RS-422 OUT SERIAL LAN REMOTE 1 REMOTE 2 IN
OUT
IN
SYNC/HD VD
B/P B G/Y R/P R
S-VIDEO IN VIDEO RGB 2 IN DVI-D IN RGB 1 IN
AUX
DVI-D
RGB2
RGB1
S-VIDEO
VIDEO
AUTO
SETUP
MENU LENS
SHUTTER
LIGHT
POWER ON STANDBY
ON
OFF
ENTER
Remove the slot cover. 1.
Remove 2 screws.
Insert the input module. 2.
Slot
Input module
Fix the input module. 3.
Register the input signal. 4.
This projector needs to register the type of input •
signal after the installation of the input module.
For details on the registration of the input •
signals, refer to pages 43-45.
Tighten the two screws.
