ENGLISH – 27
Getting Started

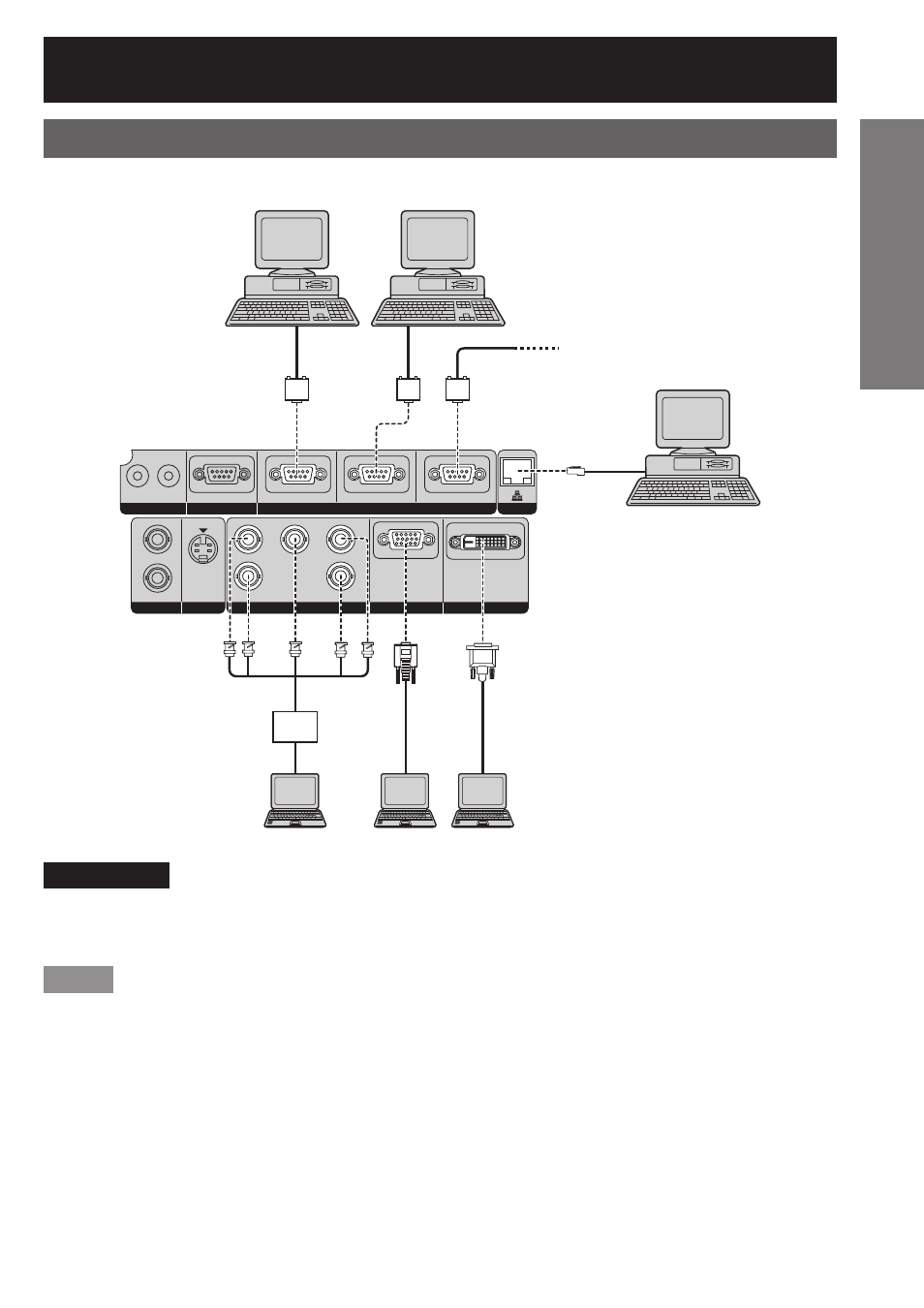

Example of connecting with personal computers
IN OUT RS-232C IN RS-422 IN RS-422 OUT
SERIAL REMOTE 1 REMOTE 2 IN
OUT
IN
SYNC/HD VD
B/P B G/Y R/P R
S-VIDEO IN VIDEO RGB 2 IN DVI-D IN RGB 1 IN
LAN
To 2nd projector
(SERIAL IN terminal)
I/F
PC
Control PC
Control PC Control PC
PC PC
Attention
When the main power of the main unit is turned off, also turn off the power of the PC. •
When the length of the cable from a PC to the projector is long or when there are many relay devices such as •
switches, the video may be interrupted or fuzzy. In such a case, use a cable compensator.
Note
For the specifications of the RGB signals that can be applied from the PC, see the data sheet on pages •
120-121.
If your PC has the resume feature (last memory), the computer may not function properly until the resume •
capability is disabled.
When using the DVI-D input, EDID settings may be required for the connected device. (pp. 71, 72) •
