Page 17
SmartNode 5200 overview
17
SmartNode 5200 Getting Started Guide
1 • General information

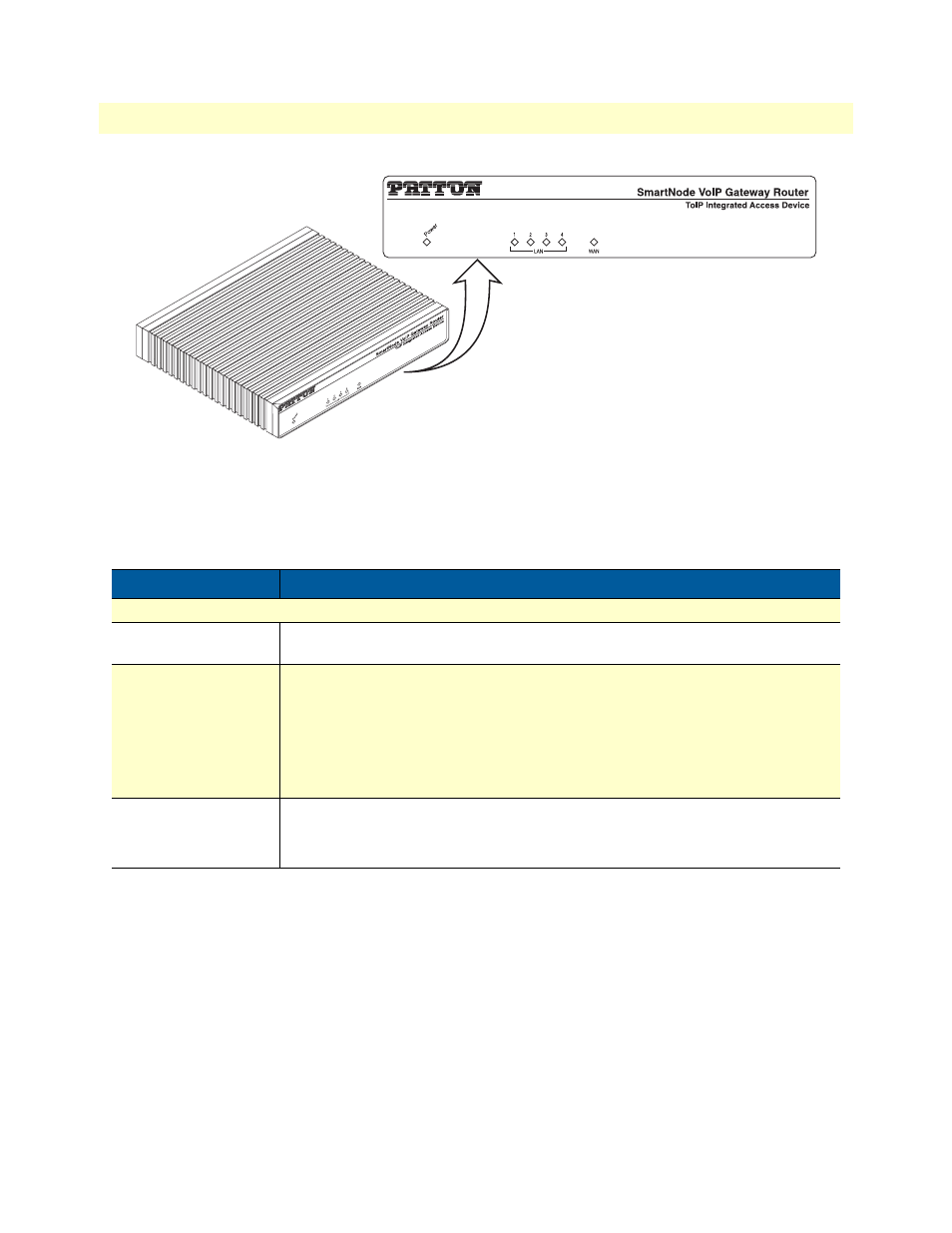

Figure 3. SmartNode 5200 front panel
SmartNode 5200 front panel
Figure 3
shows SmartNode 5200 LEDs, the LED definitions are listed in
Table 3. SmartNode 5200 LED definitions
LED
Description
Note
If an error occurs, all LEDs will flash once per second.
Power
When lit, indicates power is applied and the unit is in normal operation. Off indi-
cates no power applied. Flashes once per second during boot (startup).
VoIP Link
•
On indicates the gateway is registered to an H.323 gatekeeper/SIP server, or,
in the case of direct routing, has at least one active VoIP connection.
•
Off indicates the unit is not configured or registered, or has no active direct-
routed VoIP connection.
•
Flashing green indicates that the unit is attempting to register or has failed
to register.
Ethernet
(LAN 1–4 and WAN)
•
On when the Ethernet connection on the corresponding port has a
link indication.
•
Flashes when data is received or transmitted at the corresponding Ethernet port.
