SmartNode 5200 overview 16
SmartNode 5200 Getting Started Guide 1 • General information
SmartNode 5200 rear panel
The SmartNode 5200 is a compact VoIP Gateway Router that supports 32 simultaneous SIP sessions. The
SmartNode 5200 rear panel ports are described in
table 2 .

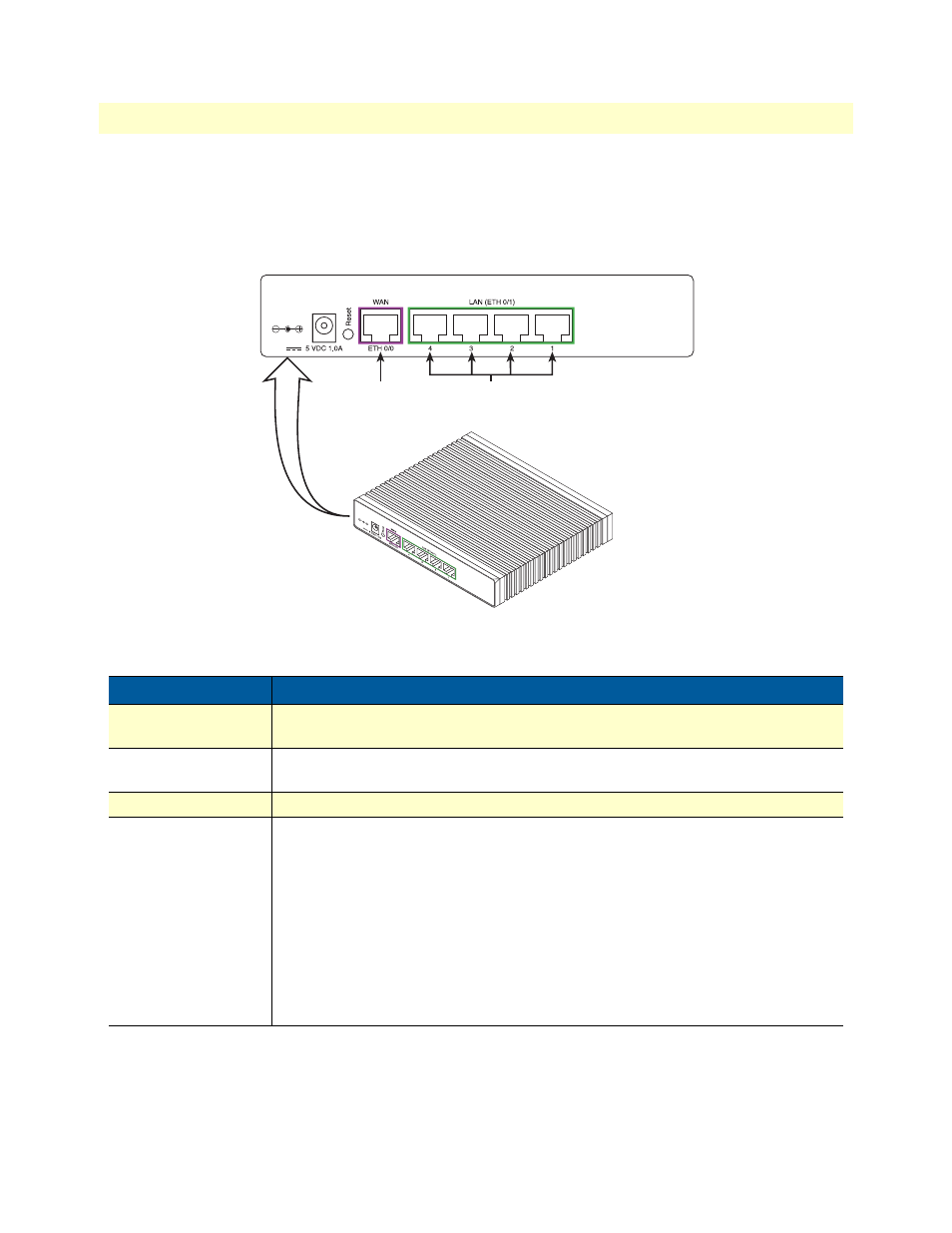

Figure 2. SmartNode 5200 rear panel
Table 2. Rear panel ports
Port Description
WAN ETH 0/0 Auto-MDX Fast-Ethernet port, RJ-45 (see figure 2 ), connects the unit to an Ethernet WAN
device (for example, a cable modem, DSL modem, or fiber modem).
LAN (ETH 0/1) 1–4 Switched Auto-MDX Fast-Ethernet ports, RJ-45 (see figure 2 ), connect the unit to an Ether-
net LAN (for example, a PC, printer, or wireless bridge).
5V DC, 1.0A The Model 5200 has a 5V DC power input (see figure 2 ).
Reset The reset button (see figure 2 ) has three functions:
• Restart the unit with the current startup configuration—Press (for less than 1 second)
and release the Reset button to restart the unit with the current startup configuration.
• Restart the unit with factory default configuration—Press the Reset button for
5 seconds until the Power LED (see
figure 3 on page 17) starts blinking to restart
the unit with factory default configuration.
• Restart the unit in bootloader mode (to be used only by trained SmartNode tech-
nicians)—Starting with the unit powered off, press and hold the Reset button as
you apply power to the unit. Release the Reset button when the Power LED starts
blinking so the unit will enter bootloader mode.
Model SN5200
LAN (ETH 0/1)
Ethernet ports 1–4
WAN ETH 0/0
Ethernet port
