Applications
36
Basic Leased Line Configuration
The P1705 & P1730 establishes PPP (Point to Point Protocol) WAN connections to other
PPP Leased Line routers or to other vendors PPP leased line routers via direct leased line
connections. Either 1 or 2 links may be used to connect to other PPP routers.
Configuration: The default configuration for P1705 & P1730 shipped within North
American with at least one non-ISDN interface module, is to have frame relay
enabled on that interface. To run PPP leased line, frame relay must be disabled.
Selecting the Frame Relay option will toggle the setting from enabled to disabled.
Frame Relay disable
Location: Main
ª
Configuration
ª
WAN Set-up
ª
Link Set-up
ª
Frame Relay
disabled
The router will request confirmation of the change, enter “yes”.
Quick Start PPP Leased Line Connections
A Quick Start minimal configuration may be used to initially establish a connection to
another vendors PPP router. Once the connection is established and is working properly,
the router should be configured with a remote site profile entry for that vendors router.
Before the P1705 & P1730 can establish a link connection to another PPP router, the link
speed information must be defined. Refer to the following diagram that shows two routers
and another vendors unit connected together with direct leased line connections.

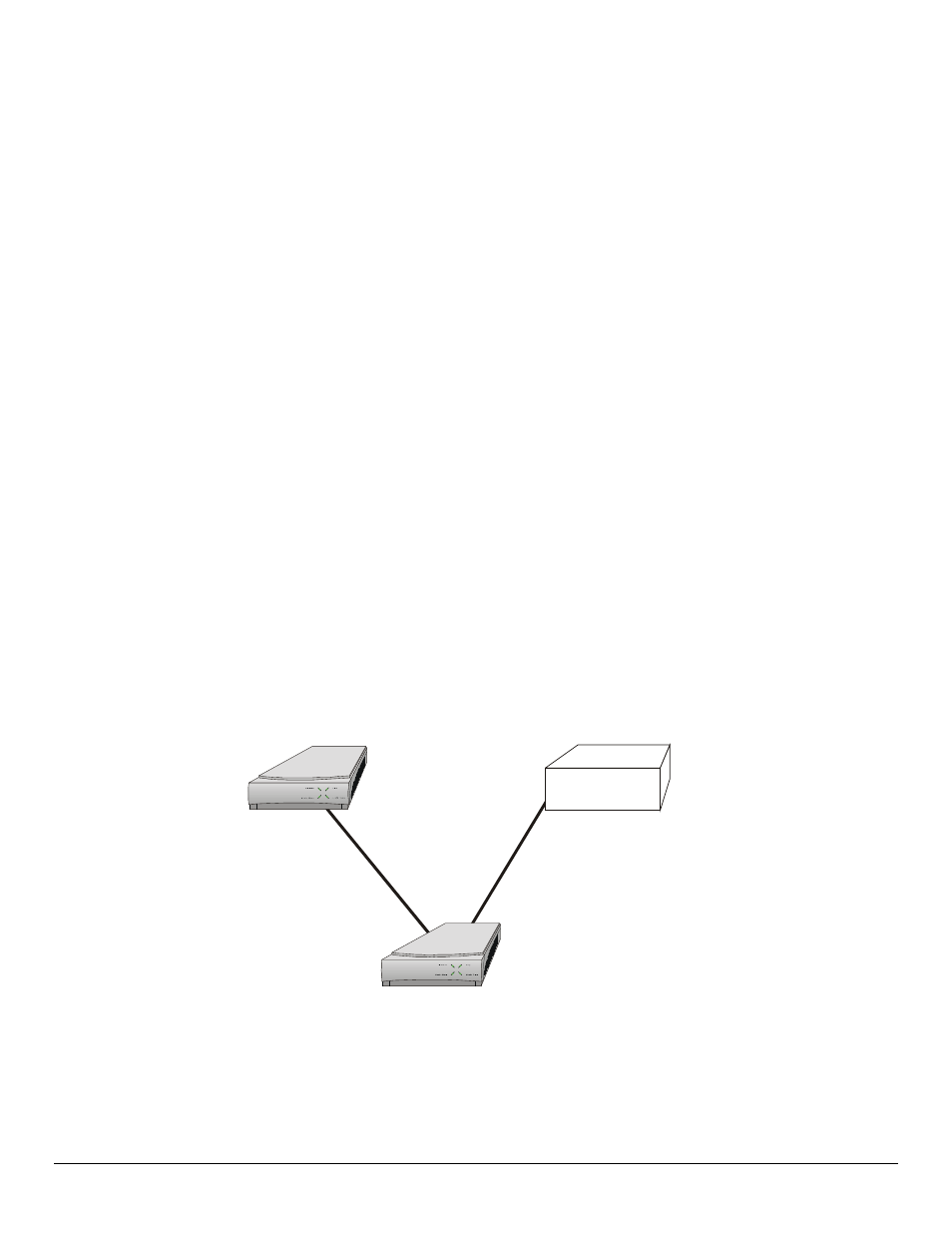

Figure 2 -9 Basic PPP Leased Line Configuration
PPP IP Router
