9
1. Functions in each area

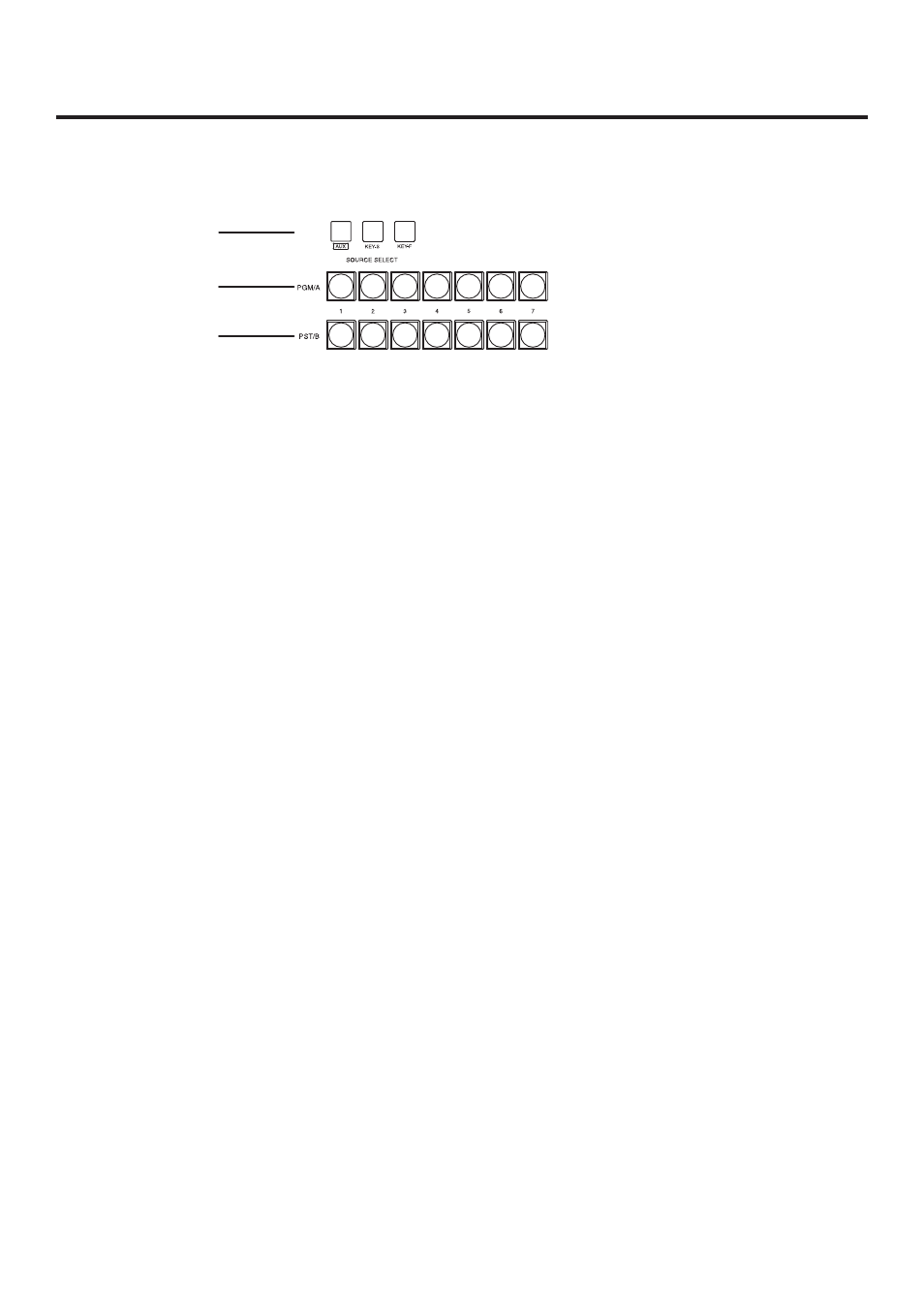

1-2. Crosspoint area




PGM/A bus crosspoint switches [PGM/A 1 to 7]
These are used to select the PGM/A bus video signals. In the case of the flip-flop system, the main line video
(PGM) signals are always selected.

PST/B bus crosspoint switches [PST/B 1 to 7]
These are used to select the PST/B bus video signals. In the case of the flip-flop system, the images inserted
next (PST) are always selected. When a B bus crosspoint switch is pressed while one of the source selector
switches (6) is held down, key signals or AUX signals are selected.
6
Source selector switches [SOURCE SELECT/AUX, KEY-S, KEY-F]
When a B bus crosspoint switch () is pressed while the [AUX] source selector switch is held down, the AUX
signals are selected, and when a B bus crosspoint switch () is pressed while the [KEY-S] or [KEY-F] source
selector switch is held down, the key signals are selected.
While a switch is held down, its indicator lights in amber.
In addition, if the [CLN], [PVW] or [PGM] wipe pattern selector switch (7) is pressed while the [AUX] switch is
held down, the switch will operate as an AUX bus selector switch.
[CLN]: Clean signals are output to the AUX bus.  See 3--
[PVW]: PVW signals are output to the AUX bus.  See 3--
[PGM]: PGM signals are output to the AUX bus.  See 3--
