13
1. Functions in each area

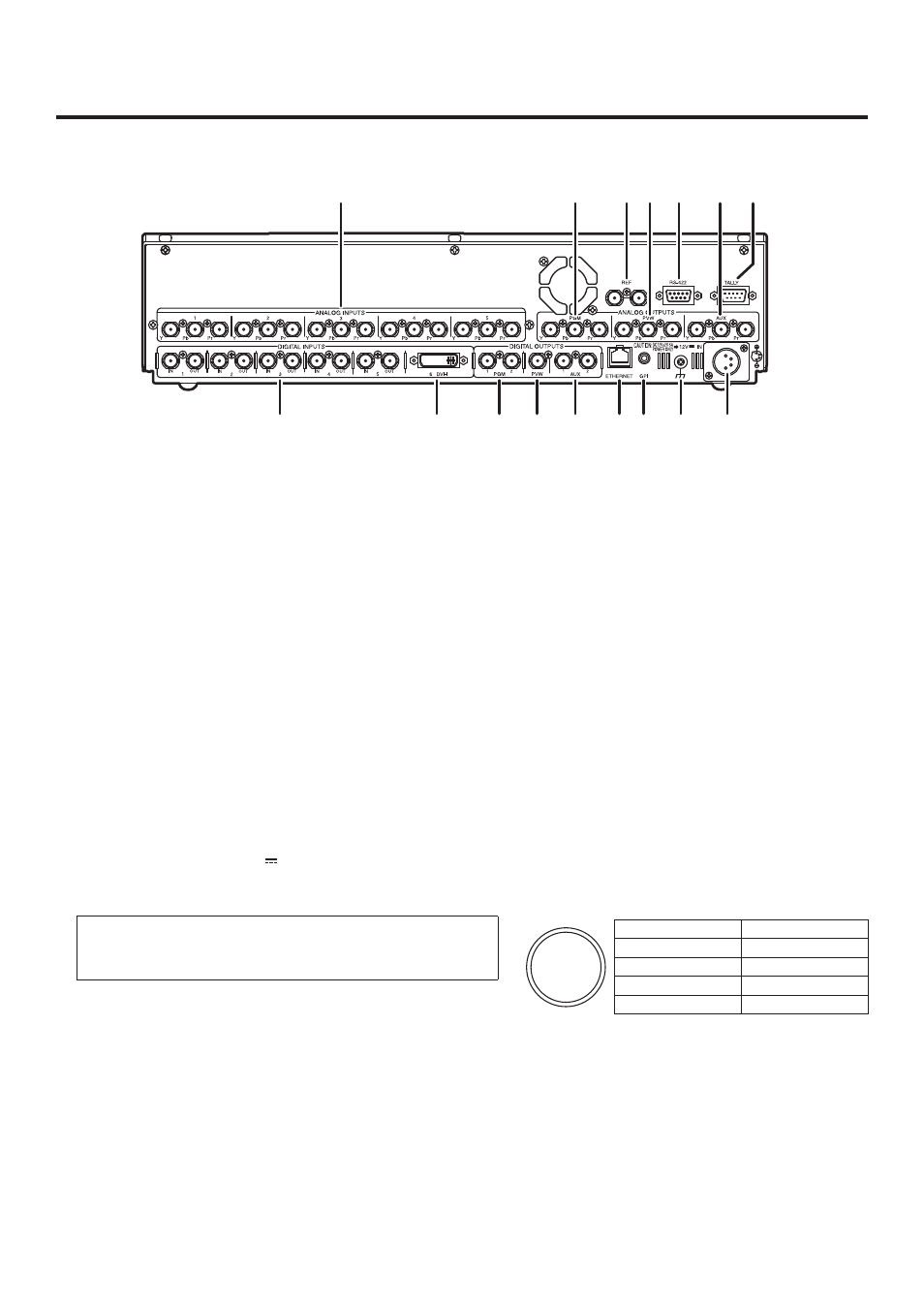

1-6. Rear panel connections area
       
      


SDI signal input connectors [DIGITAL INPUTS 1 to 5]
IN: SDI signal input; OUT: active through output

DVI-I signal input connector [DIGITAL INPUTS 6 DVI-I]

Analog HD component input connectors [ANALOG INPUTS 1 to 5] (optional)
 PGM output connectors [DIGITAL OUTPUTS PGM 1, 2] (SDI)

PVW output connector [DIGITAL OUTPUTS PVW 1] (SDI)

AUX output connectors [DIGITAL OUTPUTS AUX 1, 2] (SDI)

PGM output connector [ANALOG OUTPUTS PGM 1] (analog HD component)

PVW output connector [ANALOG OUTPUTS PVW 1] (analog HD component)

AUX output connector [ANALOG OUTPUTS AUX 1] (analog HD component)

Ethernet port [ETHERNET] (10BASE-T, 100BASE-TX)

GPI input connector [GPI] (auto take)
 For details on connection, refer to “6. External interfaces”.

DC power socket [12V IN]
The DC 1 V voltage is supplied to this socket.
Use the AW-PS505A AC adaptor.
Note
When using other power sources, make sure the output
is DC 1 V  V, 5 A.

Reference input connector/BB output connector [REF]
Loop-through output in the external sync mode.
BB signals output from both connectors in the internal sync mode.

RS-422 interface connector [RS-422]
 For details on connection, refer to “6. External interfaces”.

Tally output connector [TALLY]
 For details on connection, refer to “6. External interfaces”.

Ground connector
Connect to the system’s earth ground.
Pin No. Signal name
1 GND
NC
3 NC
4 DC1V




