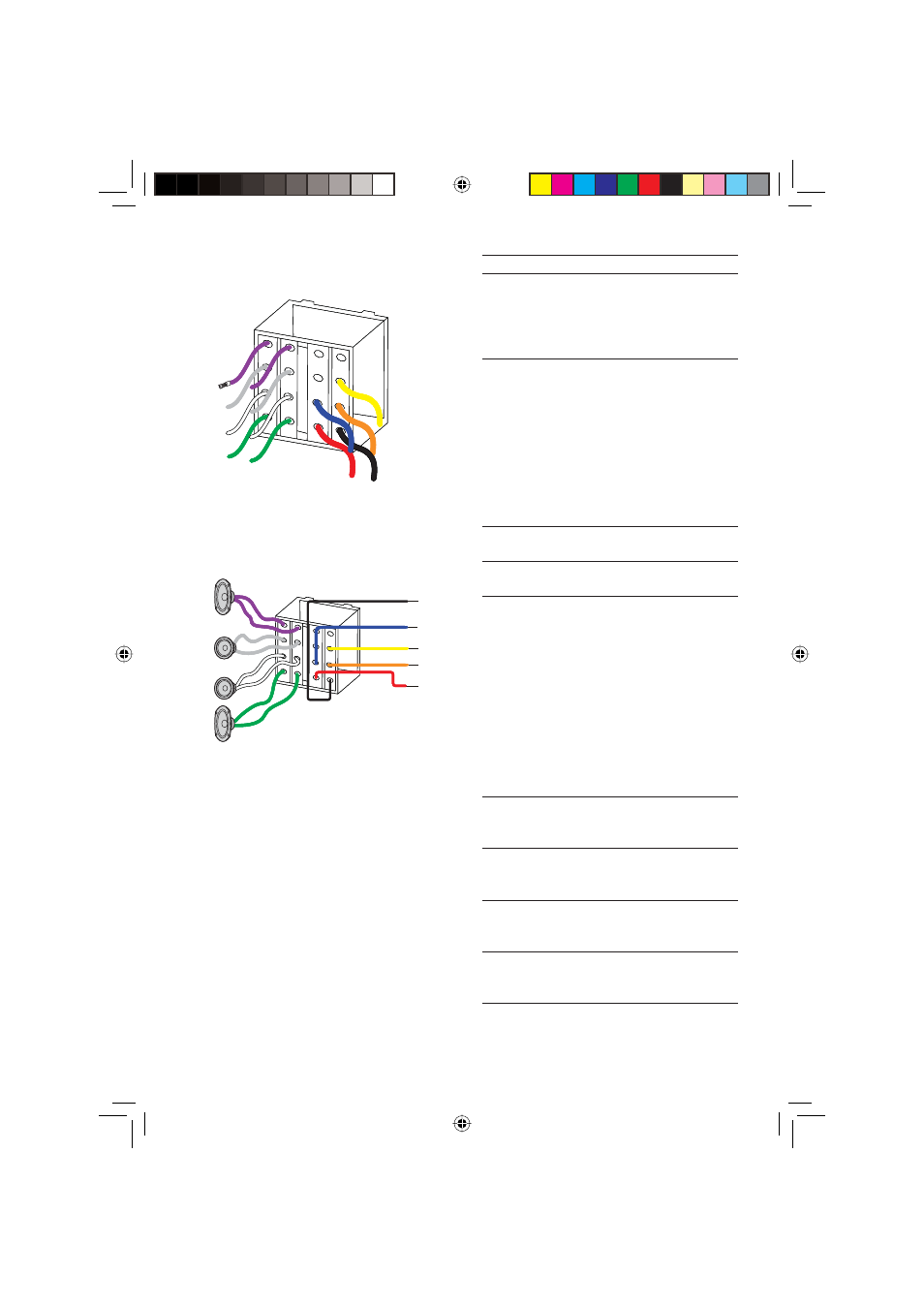

Connector

Connect to

1 Black wire

A metal surface of the car
First connect the black
ground (earth) lead, then
connect the yellow and red
power supply leads.

2 Blue wire

The electric antenna
control lead or power
supply lead of the antenna
booster
If there is no electric
antenna or antenna booster,
or it is manually operated
telescopic antenna, it is not
necessary to connect this
lead.

3 Yellow wire

The +12V car battery
which is live at all times .

4 Orange/

White

illumination switch .

5 Red wire

The +12V power terminal
which is live in the
accessory (ACC) position
of the ignition switch
If there is no accessory
position, connect to the
+12V car battery terminal
that is always live. Be
sure to connect the black
ground (earth) lead to a
metal surface of the car
fi rst.

6 Green and

green/black
wires

Left speaker (Rear)

7 White and

white/black
wires

Left speaker (Front)

8 Gray and

gray/black
wires

Right speaker (Front)

9 Purple and

purple/black
wires

Right speaker (Rear)

Check the car’s wiring carefully and

connect them to the supplied standard
connector.
