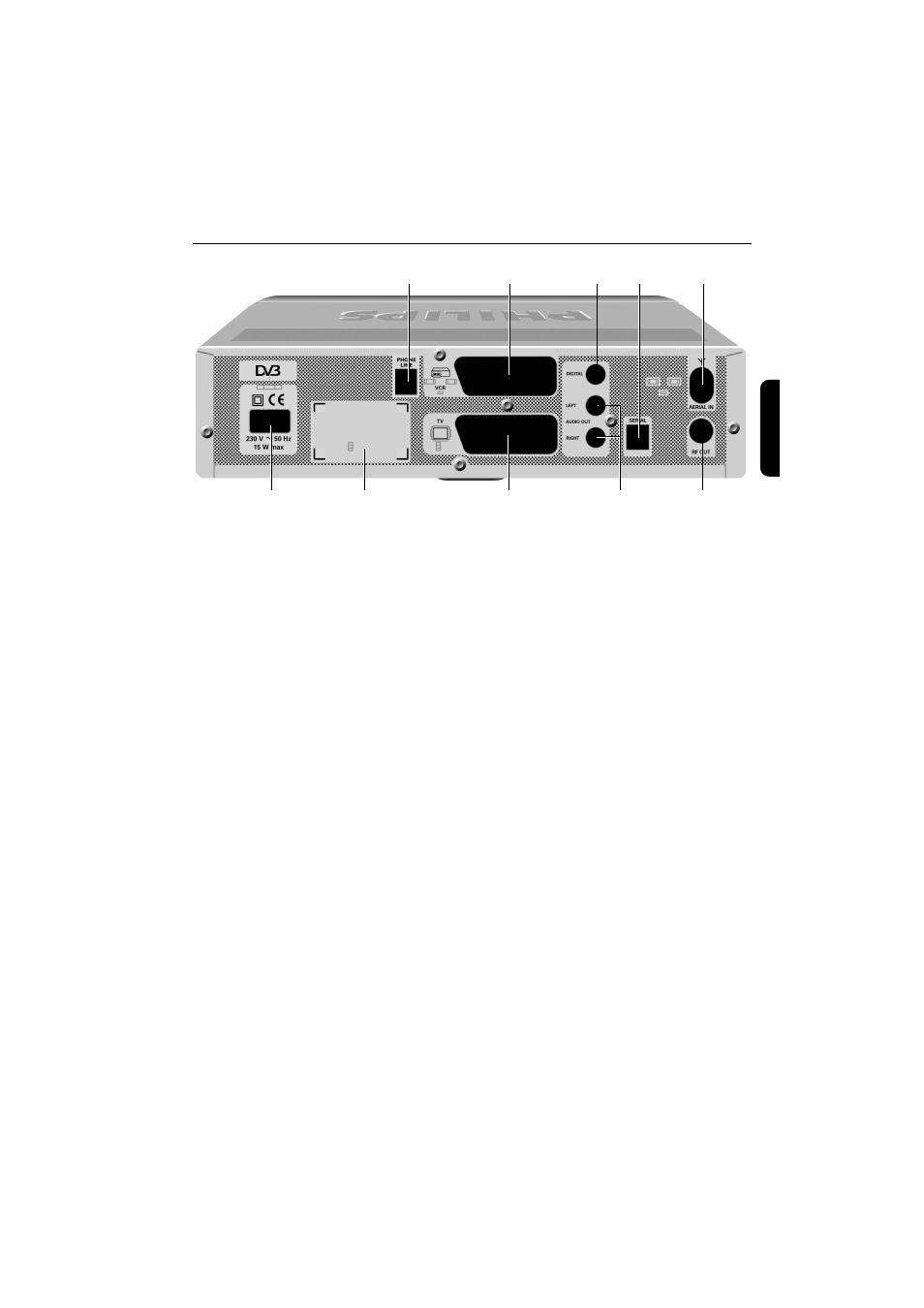

3.2 Rear view
1 Telephone Line*** (3) To connect the supplied telephone cord to be connected to
your telephone line using the appropriate adapter (adapter not
supplied).
2 VCR SCART* (1) To connect a SCART lead to be connected to the SCART
socket input (EXT1) of your VCR or DVD Recorder.
3 Digital Audio* To connect to one of the digital audio input of your HiFi /audio
receiver system.
4 Serial* Data interface used during servicing.
5 Aerial In* To connect the plug of your aerial cable.
6 230V~50Hz 15W max** To connect the supplied mains cord to be connected to the
power socket.
7 Label Type and serial number of your receiver.
8 TV SCART* (1)(2) To connect the supplied SCART lead to be connected to the
SCART socket input of your TV set.
9 L/R Audio Output* To connect to the Left/Right audio Cinch inputs of your
HIFI/audio receiver system.
10 RF Out* To connect the supplied RF coaxial cable to be connected to
the aerial input socket of your TV or VCR.
* Safety Extra Low Voltage
** Hazardous Voltage
*** Telecommunication Network Voltage 3
(1) SCART is also called Euroconnector or Peritel.
(2) The supplied SCART lead is suited for RGB format, which allows the best picture quality. Consult
the user manual of your TV set to select its RGB capable SCART socket input.
(3) This equipment has been approved pursuant to Commission Decision 99/303/EC for pan-
European connection to the public switched telephone network (PSTN). However, due to
differences between the individual PSTNs provided for in different countries, the approval does
not, of itself, give an unconditional assurance of successful operation on every PSTN network
termination point. In the event of problems, you should contact your equipment supplier in the
first instance.
En
gl
is
h
PRODUCT DESCRIPTION 7
6 7 8 9 10
1 2 3 4 5
