Touch Screen Options

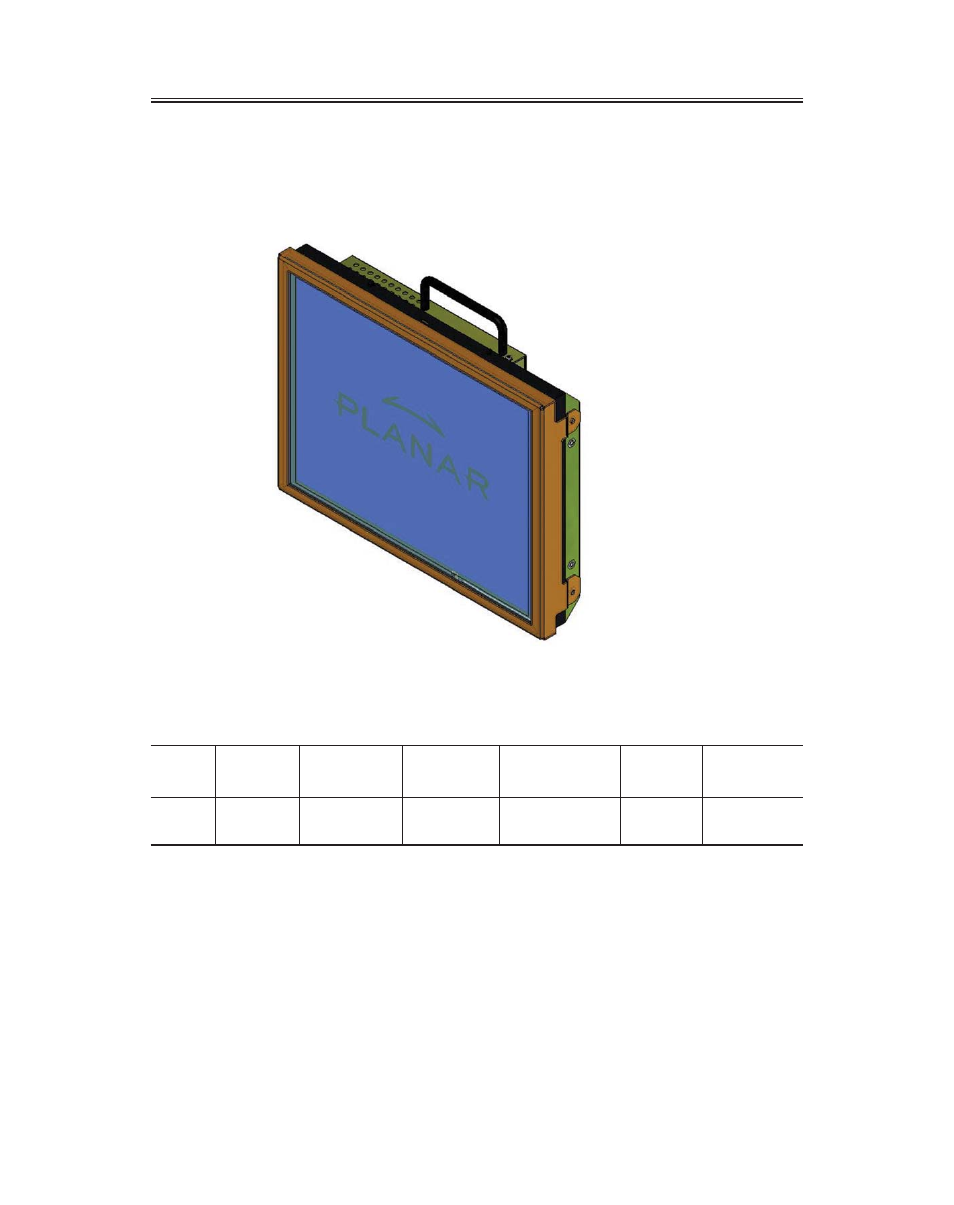

LC1502R with Capacitive or Infrared (IR) Touch Screens
The LC1502R can be ordered with two touch screen technologies: Capacitive (model LC1502RTC) and
IR (model LC1502RTI). The technologies respective benefits and drawbacks are explained below.
Set Up:
1. Refer to Planar mechanical outline drawing for the mounting hole locations.
2. Connect the USB cable from display to USB port on computer.
3. Power on computer and install the touchscreen driver found on the provided CD. Follow
instructions to calibrate the touch screen.
For more information on 3M touch products, visit 3Mtouch.com.
Capacitive
Indoor Use
Occasional
Any size Stylus
Excellent Optical
USB
Scratch
(3M*)
Recalibration or
finger
Clarity
Interface
Resistant
Required
IR
Indoor/
No recalibration
Stylus must
Best in class
USB
Impervious
Outdoor
Required
be larger
optical clarity
Interface
to scratching
than 3mm
