Antenna Connection
VHF/UHF Cable In terminal on the
back of the Projection Display
Connecting the Antenna / Cable to the RF IN Terminal
When using “Nut type” RF coaxial cable, tighten with fingers only. Overtightening may damage terminal.
• Turn off the power supply for all com po nents before making any connections.
• Read the instruction manual for each system component care ful ly before connecting it.
• If there is a lot of jitter in the video signal input from the video source, the picture on the screen may flicker. In this case, it will
be necessary to connect a TBC (time base corrector).
Notes on con nec tions
Installation
For proper reception of digital and analog VHF/UHF channels, an external antenna is required. For best reception, an
outdoor antenna is recommended.
CAUTION

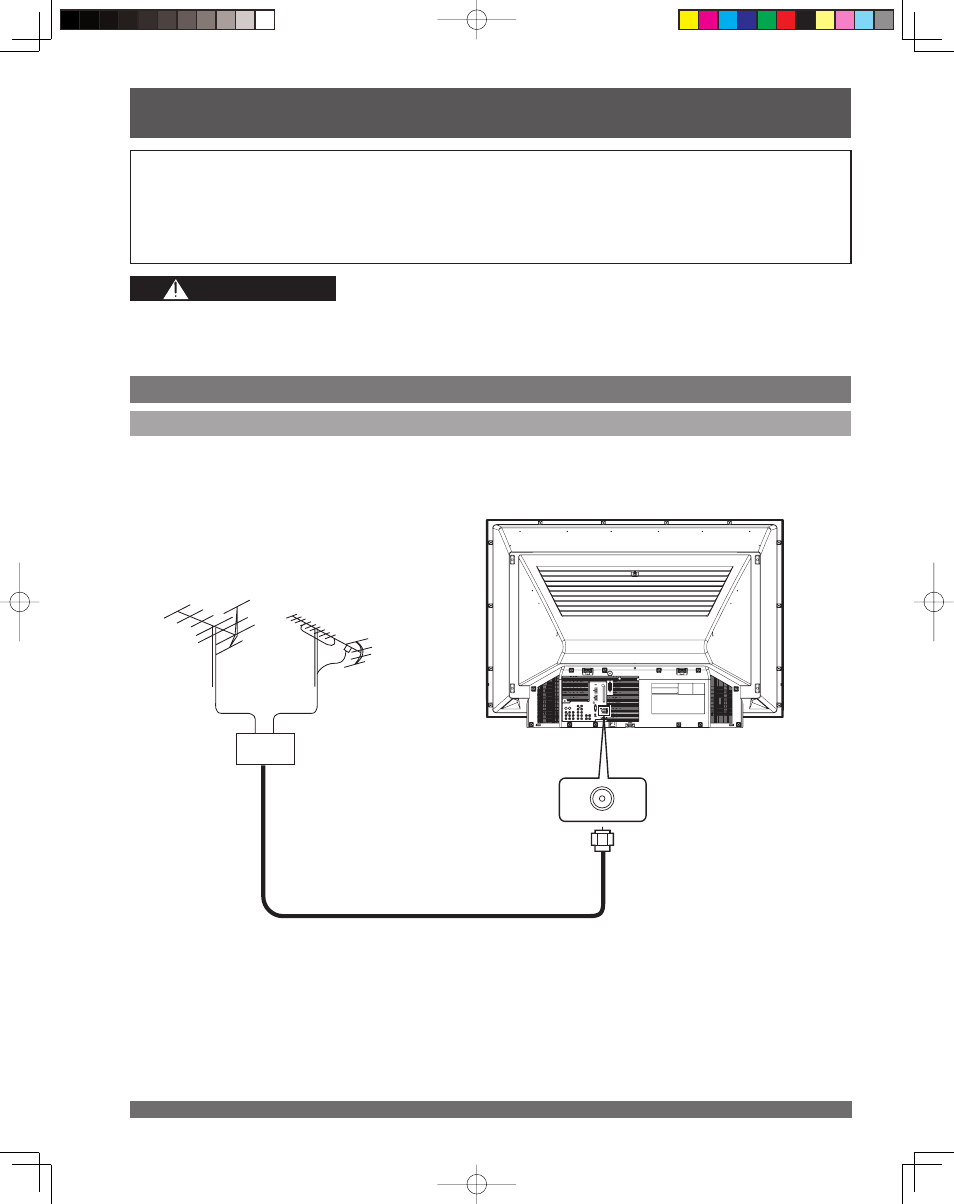

Mixer
VHF Antenna UHF Antenna
RF Coaxial Cable
