11
Getting Start
ed
Vent
Notes:
• Make sure the vents are not blocked. (This could cause damage.)
• Indication on the back panel may change without notice.
Vent

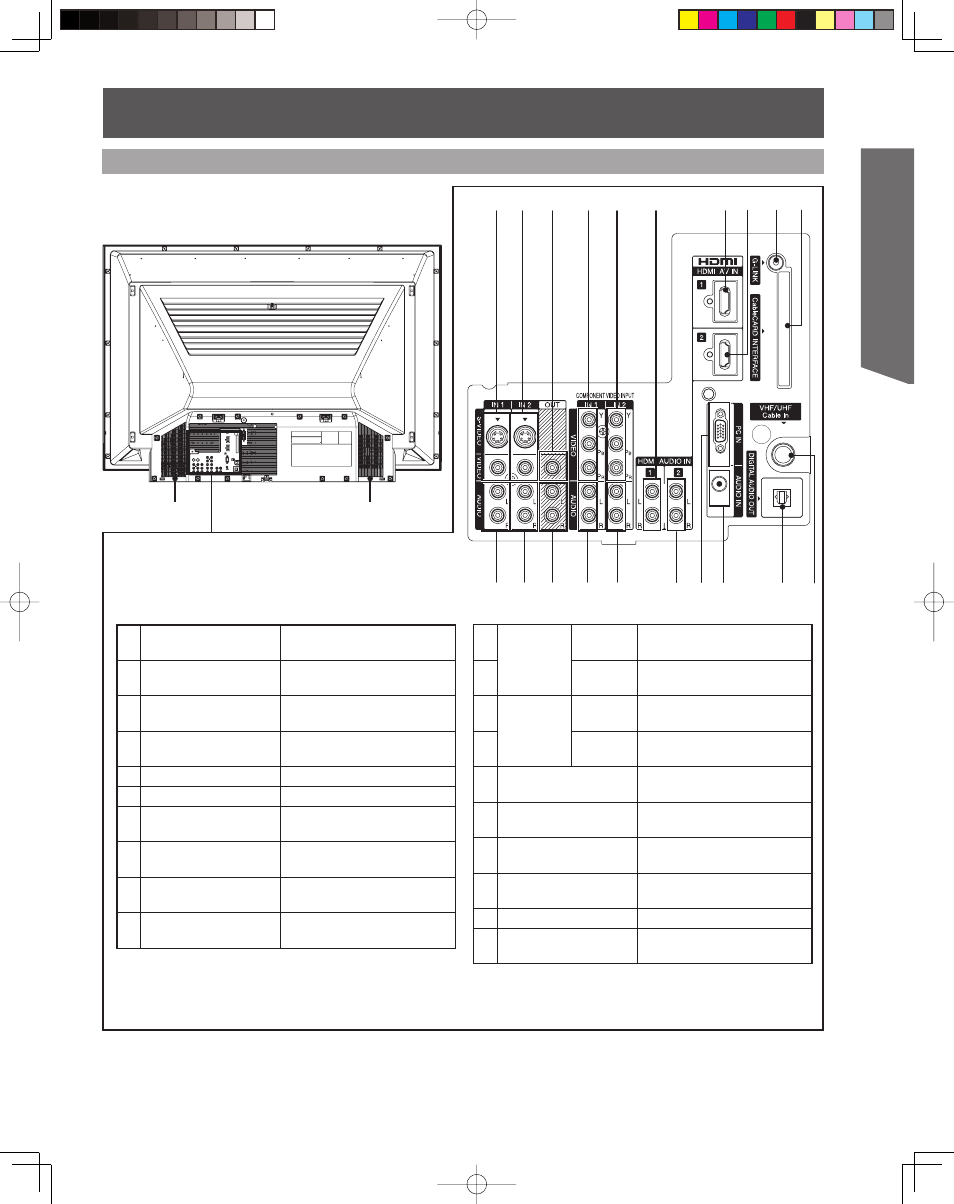

Rear View
1 3 5 7 9 11 12
2 4 6 8 10 15 16 19 13
14 17 18
20
1
S-Video/Video Input
Connector 1 Connect from other
component. (Video 1)
2
Audio Input
Connector 1 Connect from other
component. (Video 1)
3
S-Video/Video Input
Connector 2 Connect from other
component. (Video 2)
4
Audio Input
Connector 2 Connect from other
component. (Video 2)
5 Video Out Connector Output video signal.
6 Audio Out Connector Output audio signal. (Analog)
7
Component Video
Input Connector 1 Connect from other
component. (Component 1)
8
Audio Input
Connector 1 Connect from other
component. (Component 1)
9
Component Video
Input Connector 2 Connect from other
component. (Component 2)
10
Audio Input
Connector 2 Connect from other
component. (Component 2)
11
HDMI Input
Terminal 1
Audio 1
Connect from other
component. (HDMI 1)
12
Audio/
Video 1 Connect from other
component. (HDMI 1)
13
HDMI Input
Terminal 2
Audio 2
Connect from other
component. (HDMI 2)
14
Audio/
Video 2 Connect from other
component. (HDMI 2)
15
PC (RGB) Input
Connector
Connect from PC. (PC)
16
Audio Input
Connector
Connect from PC. (PC)
17 G-LINK Connector Connect the IR Blaster.
18
CableCARD™
INTERFACE
Insert CableCARD™.
19 DIGITAL AUDIO OUT Output audio signal. (Digital)
20 VHF/UHF Cable In
Input terminal for an antenna
or cable box signal.
