Philips 220-230-240V - Manual (Page 143)

OEM Catalogue 2009/2010 3.143
HID Gear
D1
A1
B1
C1
A2
BHL

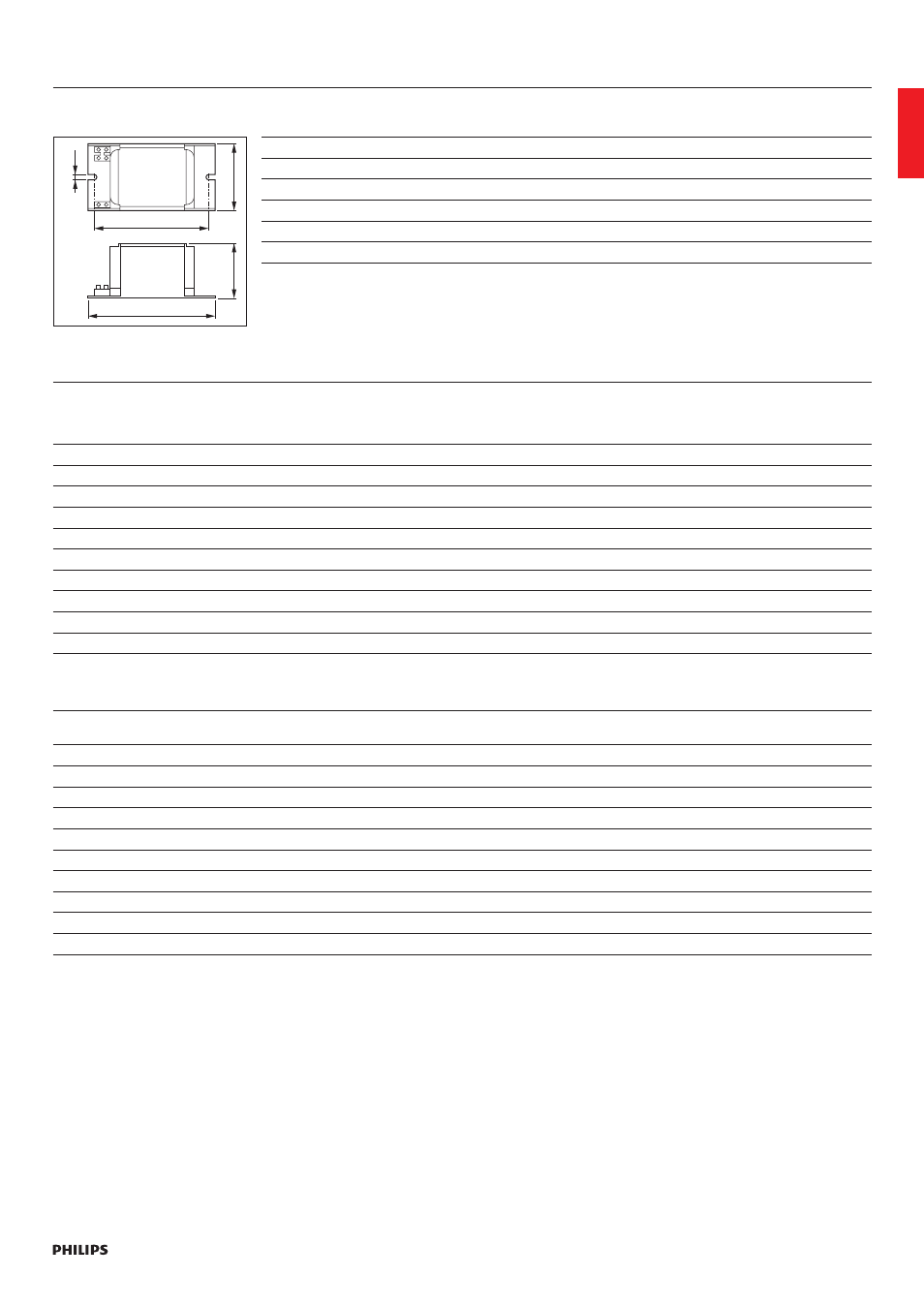

Type A1Nom A2Nom B1Nom C1Nom D1Nom
BHL 50/80/125 118.0 103.0 65.0 53.0 6.2
BHL 250 L32 134.0 115.5 81.0 66.0 6.2
BHL 250 L40 126.0 107.5 81.0 66.0 6.2
BHL 400 L32 160.0 141.5 81.0 66.0 6.2
BHL 400 L40 151.0 132.5 81.0 66.0 6.2
HID-HeavyDuty BHL (HPL/HPI)
Electrical data
Type Number
of
Lamps
(x)
Rated
Gear-
Lamp
Power
Power
losses
gear
(W)
Line
Frequency
(Hz)
Line
Voltage
(V)
T-winding Delta-T
normal
conditions
(ºC)
Input
current
with PF-correct.
(A)
BHL 50/80 L48 230V 50Hz 1 50/80 7.0/10.0 50 230 130 55 0.30/0.45
BHL 80 L32 240V 50Hz 1 80 10.5 50 240 130 60 0.45
BHL 80 L40 230V 50Hz 1 80 10.5 50 230 130 60 0.45
BHL 80/125 L48 230V 50Hz 1 80/125 9.6/12.2 50 230 130 75 0.45/0.70
BHL 125 L32 240V 50Hz 1 125 13.2 50 240 130 70 0.70
BHL 125 L40 230V 50Hz 1 125 12.7 50 230 130 70 0.70
BHL 250 L32 240V 50Hz 1 250 20.5 50 240 130 85 1.35
BHL 250 L40 230V 50Hz 1 250 19.5 50 230 130 85 1.35
BHL 400 L32 240V 50Hz 1 400 23.0 50 240 130 85 2.15
BHL 400 L40 230V 50Hz 1 400 22.0 50 230 130 80 2.15
Ordering and packing data
Type Weight Qty bulk
packing
Dimensions bulk packing EAN code
bulk packing
EOC
8711500
BHL 50/80 L48 230V 50Hz 1.25 kg 6 20.8 cm x 13.9 cm x 11.4 cm 8711500061768 919649 31
BHL 80 L32 240V 50Hz 1 kg 6 20.8 cm x 13.4 cm x 11.4 cm 8711500061690 919373 31
BHL 80 L40 230V 50Hz 1 kg 6 20.8 cm x 13.4 cm x 11.4 cm 8711500061683 919359 31
BHL 80/125 L48 230V 50Hz 1.25 kg 6 20.8 cm x 13.9 cm x 11.4 cm 8711500061782 919694 31
BHL 125 L32 240V 50Hz 1.26 kg 6 20.8 cm x 13.9 cm x 11.4 cm 8711500061720 919441 31
BHL 125 L40 230V 50Hz 1.26 kg 6 20.8 cm x 13.9 cm x 11.4 cm 8711500061744 915146 31
BHL 250 L32 240V 50Hz 2.1 kg 6 25.3 cm x 15 cm x 13.9 cm 8711500932709 944894 30
BHL 250 L40 230V 50Hz 1.84 kg 6 25.3 cm x 14.2 cm x 13.9 cm 8711500934604 919502 30
BHL 400 L32 240V 50Hz 3.05 kg 6 25.3 cm x 17.6 cm x 13.9 cm 8711500932440 919557 30
BHL 400 L40 230V 50Hz 2.75 kg 6 25.3 cm x 16.7 cm x 13.9 cm 8711500934703 919533 30
