A HARDWARE TOUR

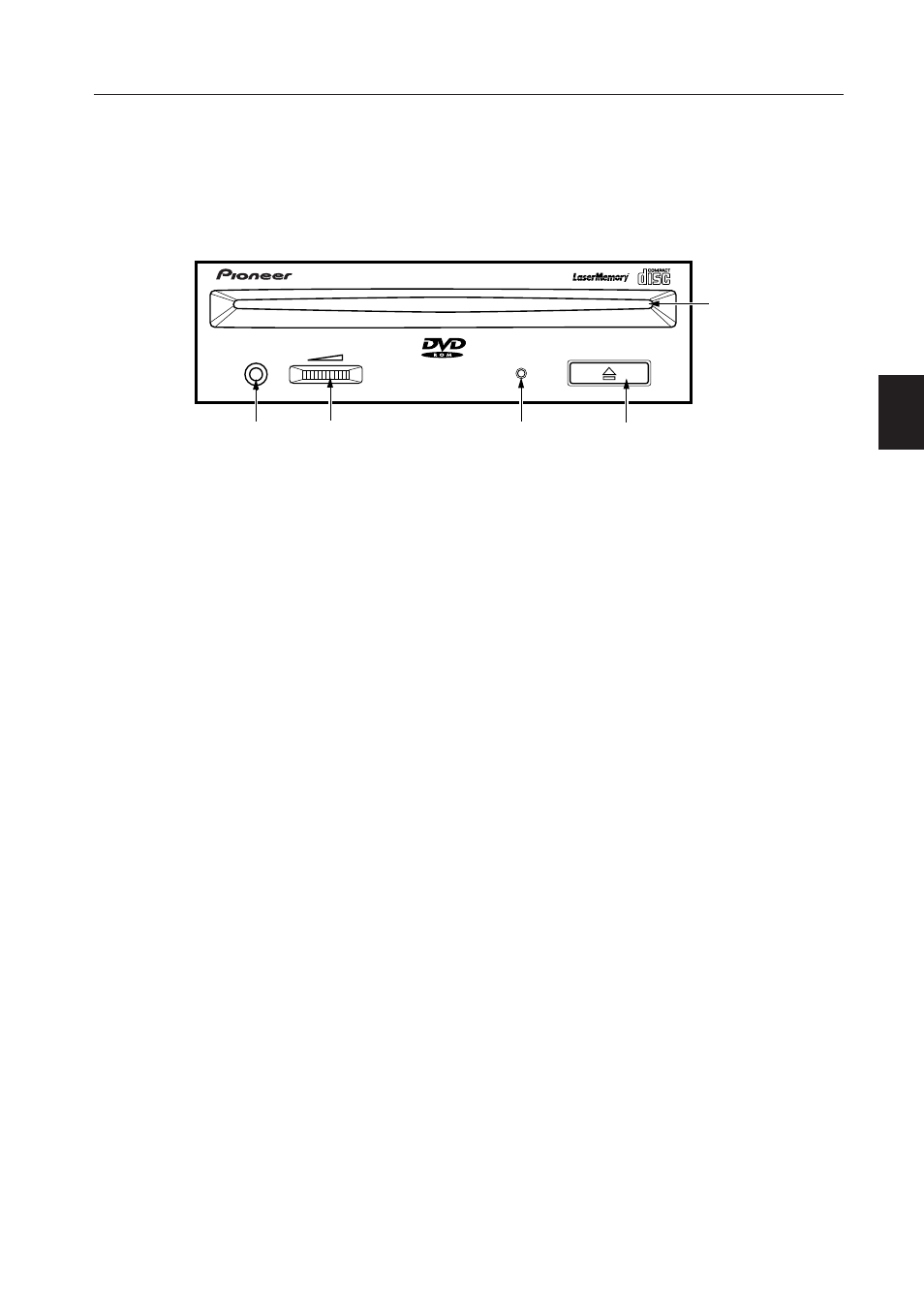

Fig. 1
Illustrations are provided in this chapter as a visual introduction of the Drive.
Please familiarize yourself with these illustrations and refer to them when necessary
to complete the installation and operation of the unit.
FRONT VIEW
DVD-ROM DRIVE
BUSY
PHONES
2
3
4
1
5
2 Eject (
0) button
This button is used to eject the disc.
3 BUSY indicator
Flashes during data access.
4 Volume Control (headphone level)
This is used to adjust the volume level of the headphone jack.
5 Headphone jack (PHONES)
This is a stereo minijack for headphones.
1 Disc loading slot
Insert the DVD-ROM or CD-ROM with the label facing up.
When using 8 cm (3.15-inch) discs, attach a CD adapter (available at stores) to the
disc, and insert the disc into the disc loading slot. (Refer to page 12.)
