6 - 7
LCD Unit
LCD Cable
LCD CN Cloth
LCD Cable
Cloth1
LCD Cable Tape
Figure 29
8. Peel the LCD cable cloth1, LCD cable cloth and the
LCD CN tape.
9. Remove the LCD cable to remove the LCD unit.
Inverter PCB Inverter Cable
Figure 28
6. Remove the inverter cable.
7. Remove the inverter PCB.

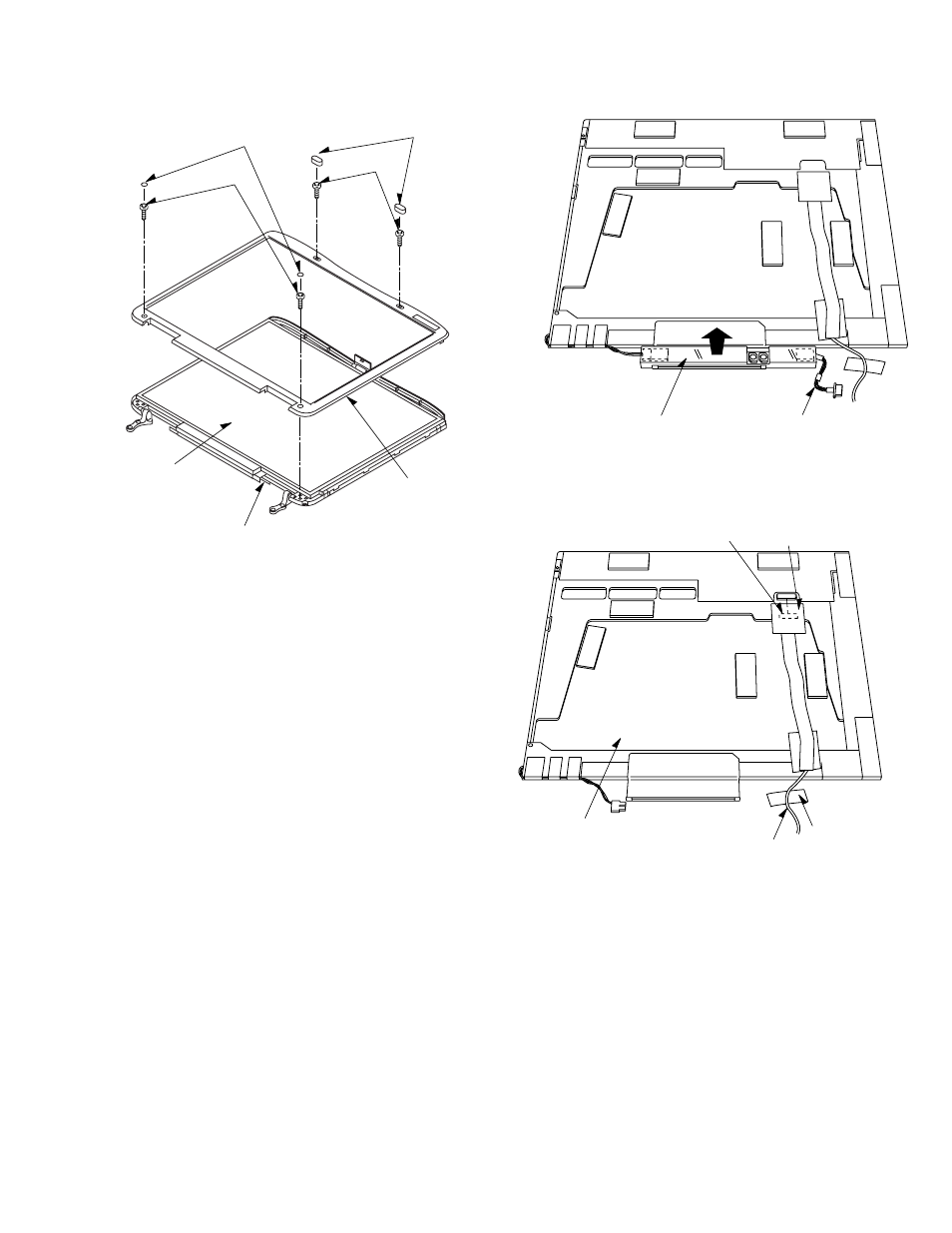

6.17 Removing the LCD Unit and the
Inverter PCB.
LCD Screw Sheets
LCD Unit
LCD Flont
Cabinet
Inverter Output Connector
LCD Leg Rubbers
Figure 27
1. Remove the two LCD leg rubbers and the two screws
.
2. Remove the two LCD screw sheets and the two screws
.
3. Remove the LCD front cabinet.
4. Disconnect the inverter output connector.
5. Lift up the LCD unit.
Screw : DFHE5025XA
Screw : DFHE5086ZA
