Main PCB
Modem Jack Cover Push in

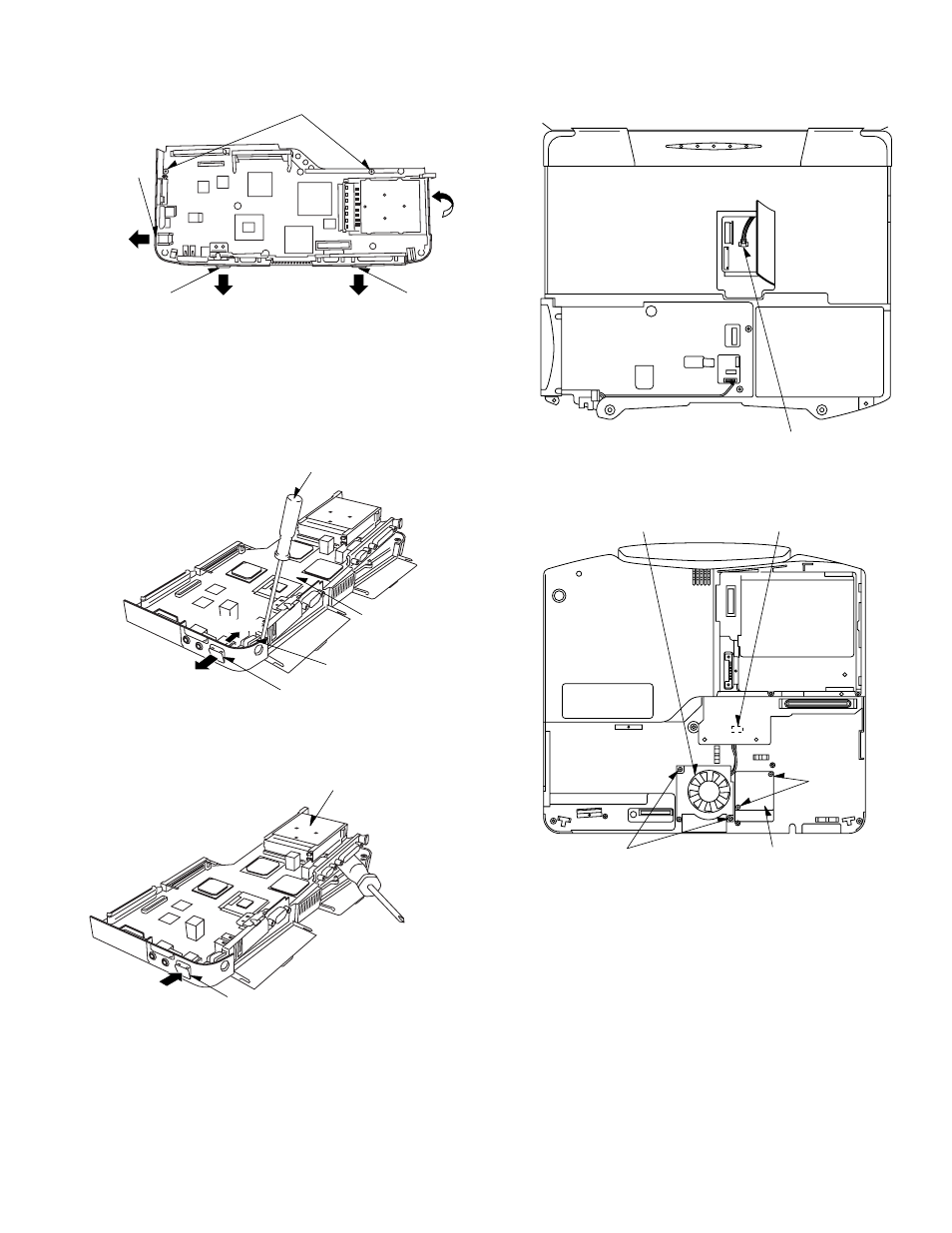

Figure 20
4. Push in the modem jack cover, and remove the main
PCB.
6.12 Removing the Fan and the Fan
Heat Angle.
CN811
Figure 21
1. Disconnect the connector CN811.
CN811 Fan
Fan Heat Angle
Figure 22
2. Remove the two screws , and remove the fan.
3. Remove the two screws , and remove the fan heat
angle.
Screw : XYN2+J6FN
Screw : DFHE5025XA
6.11 Removing the Main PCB.
Lift Up
Open Open
Open
Port
Cover R
Modem
Jack
Cover
Port
Cover L
Figure 18
1. Remove the two screws .
2. Open the modem jack cover , port cover R and the port
cover L.
Screw : XTB2+5GFN
Main PCB
DC Jack
Modem Jack Cover
Open
Minus Screw Driver
Release
Figure 19
3. Open the DC jack cover, and release the DC jack.
