31
(see Note 1)

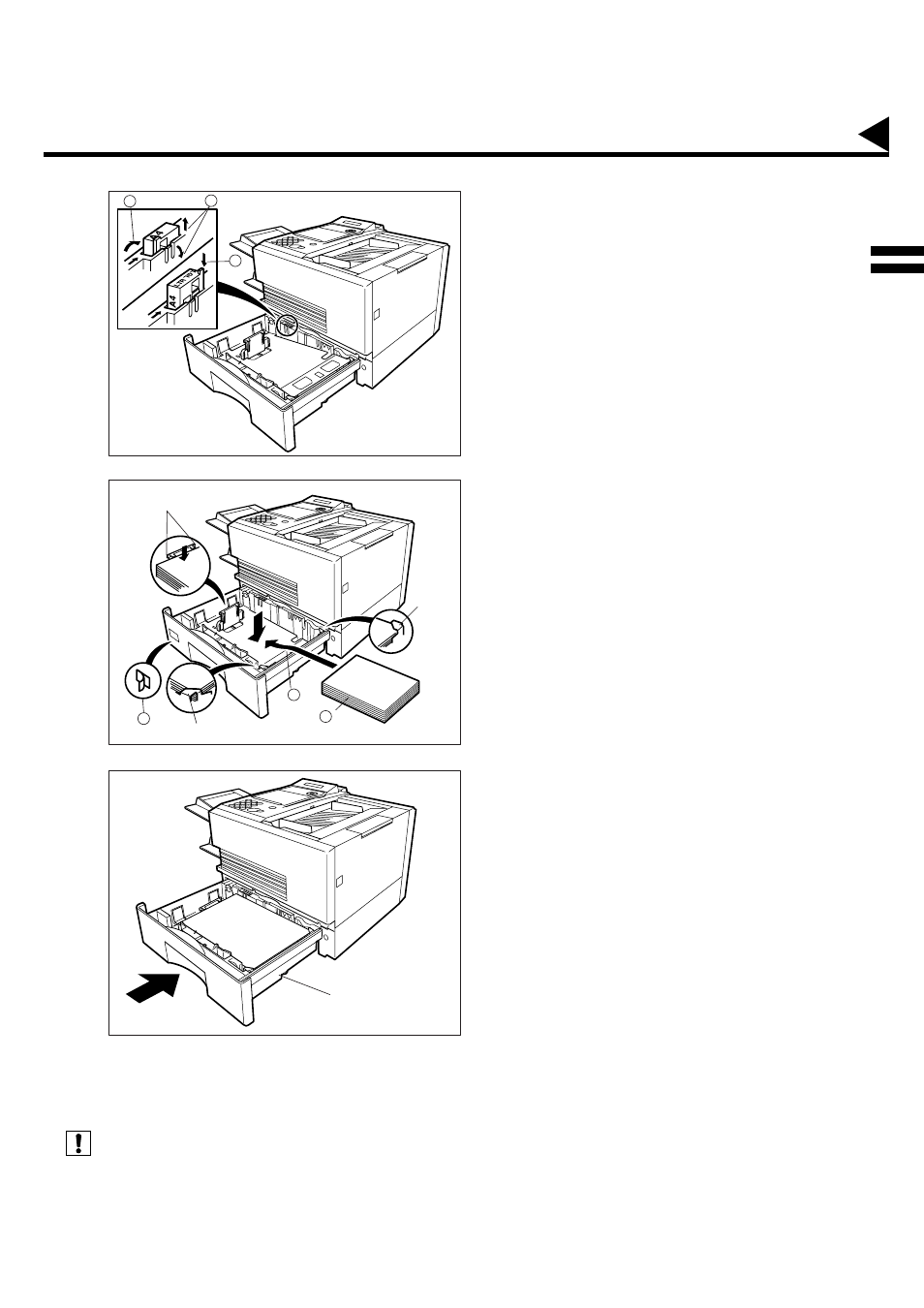

4 (1) Release the hook and remove the Paper
Size Selector.
(2) Rotate the Paper Size Selector until the
appropriate setting marked on the Selector
is facing upward and the wording is upright.
(3) Reinstall the Paper Size Selector.
5 (1) Push the Pressure Plate until it is locked
down.
(2) Load the paper into the Paper Cassette.
Caution: Make sure that the paper is set
under the clips of the Paper
Cassette. You can load about
500 sheets with standard weight
paper (20 lb. or 75 g/m
2
). For
paper specification see page
200.
(3) Set the proper paper size label.
6 Slide the Paper Cassette into the machine.
Note:
1. Your machine will properly print on A4, Letter and Legal size paper only. If other size of paper (B4, B5, A5) is used,
your machine may not print properly.
1 2
3
1
2 3
Clip
Clip
Clip
Recording Paper
Paper Cassette
Loading the Recording Paper
2
