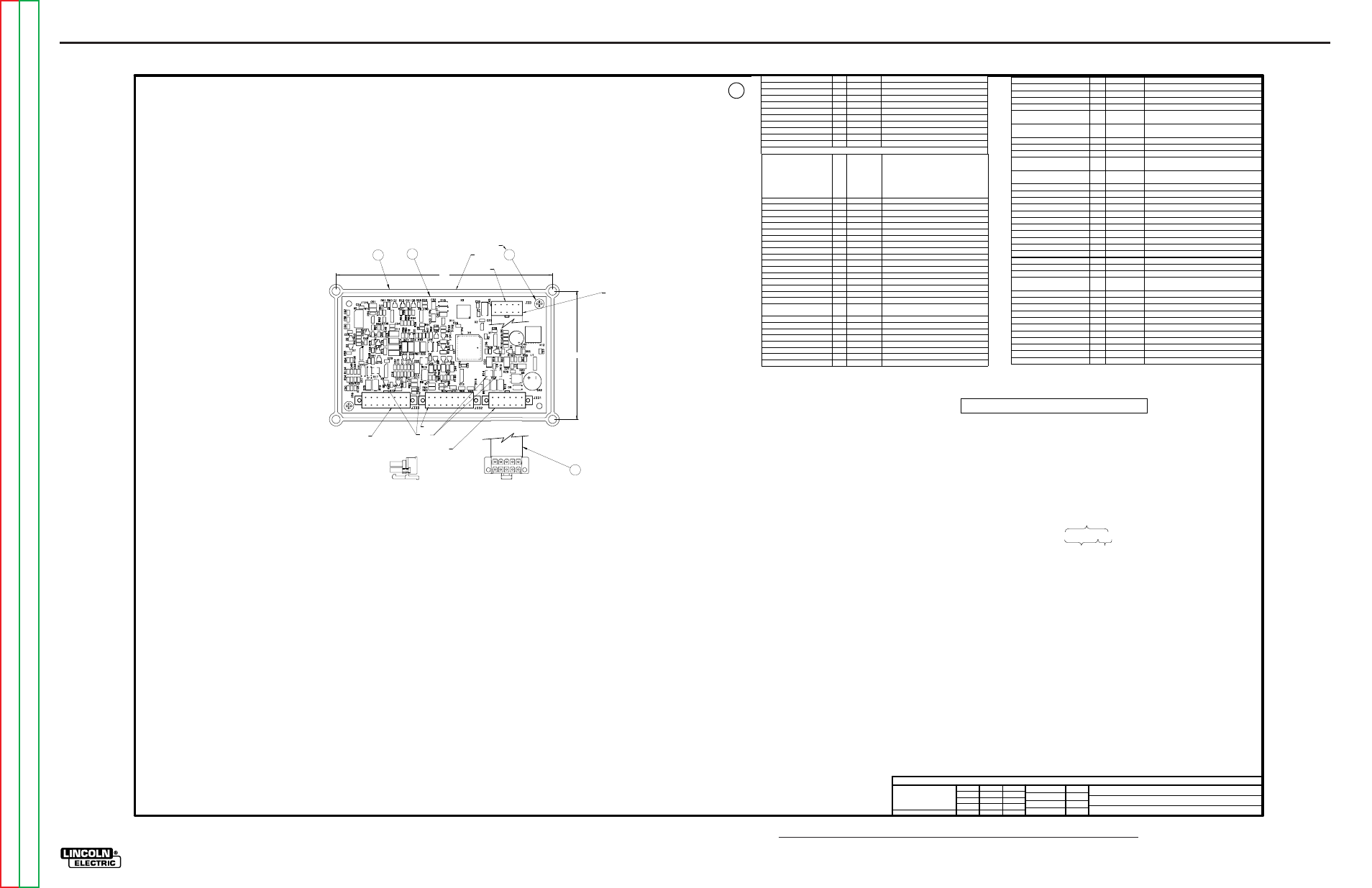

ELECTRICAL DIAGRAMS

G-18

V350-PRO

PC BOARD ASSEMBLY-SPI REMOTE

UNLESS OTHERWISE SPECIFIED:

CAPACITANCE = MFD/VOLTS
INDUCTANCE = HENRIES
RESISTANCE =

OHMS

P.C. BOARD BLANK REFERENCE INFORMATION

BUY COMPLETE AS G4018-C (4 LAYER BOARD PER E3281)

NOTES:
N.A.

CAUTION:

THIS DEVICE IS SUBJECT TO DAMAGE BY STATIC ELECTRICITY. SEE E2454

BEFORE HANDLING.

N.B. PROGRAM

X3 WITH ITEM 7.

N.C. PROGRAM

X4 WITH ITEM 8.

N.D. PROGRAM

X2 WITH ITEM 9.

N.E. ALL CONNECTORS MUST BE GREASED WITH

ITEM 6 PRIOR TO ENCAPSULATION.

N.F. ATTACH

ITEM 1 TO ITEM 2 WITH ITEM 3. TIGHTEN ITEM 3 TO .60 ± .05 Nm (5.3 ± .5 in-lbs.).

N.G. PLACE BARCODED ASSEMBLY NUMBER IDENTIFICATION AND BARCODED SERIAL

IDENTIFICATION IN AREA SHOWN.

N.H. THESE COMPONENTS MUST BE COMPLETELY COVERED WITH

ITEM 5.

N.K PLACE

ITEM 10 ON PIN 8 OF J332 AS SHOWN.

N.L. BOARD TO BE POTTED WITH

ITEM 4 LAYING ACROSS BOARD AS SHOWN.

ONLY 0.4" OR LESS OF

ITEM 4 TO BE COVERED WITH ITEM 5.

REMOTE

G4018-1

6.14

3.64

N.F.

N.E.

EN-170

MANUFACTURING TOLERANCE PER E2056

UNLESS OTHERWISE SPECIFIED TOLERANCE

DO NOT SCALE THIS DRAWING

ON 3 PLACE DECIMALS IS ± .002

THIS SHEET CONTAINS PROPRIETARY INFORMATION OWNED BY THE LINCOLN ELECTRIC COMPANY AND IS NOT TO BE REPRODUCED, DISCLOSED OR USED WITHOUT THE EXPRESS WRITTEN PERMISSION OF THE LINCOLN ELECTRIC COMPANY, CLEVELAND, OHIO U.S.A.

WITH PUBLISHED STANDARDS.

ON 2 PLACE DECIMALS IS ± .02

MATERIAL TOLERANCE (" ") TO AGREE

ON ALL ANGLES IS ± .5 OF A DEGREE

SCALE:

DESIGN INFORMATION

DRAWN BY:

SUBJECT:

ENGINEER:

EQUIPMENT TYPE:

DRAWING No.:

Ed Furman

MISCELLANEOUS

SPI REMOTE/UI P.C. BOARD ASSEMBLY

FULL

REFERENCE:

SUPERSEDING:

L11346-1

APPROVED:

4018-1

Chg. Sheet No.

"X" INFO.

1-25-02

DATE:

3-27-2001

F.V.

N.G.

N.E.

N.H.

G 4 0 1 8 - 1 C 0

PART NUMBER

IDENTIFICATION CODE

SCHEMATIC REFERENCE: G4017-1C0

BUY AS:

BUY PER E3867
TEST PER E3964-RM

N.K.

N.L.

R1,R2,R3,R4,R5,R6

S25000-1212SMT RESISTOR,SMD,METAL FILM,1/10W,12.1K,1%,S0805

S25000-2670SMT RESISTOR,SMD,METAL FILM,1/10W,267OHMS,1%,S0805

R8,R9,R10,R11,R12

S25004-2430SMT RESISTOR,SMD,1W,243OHMS,1%

R13,R14,R15,R16,R17

S18380-14

THERMISTOR,PTC,500OHMS,28mA

R18,R19

S25000-3320SMT RESISTOR,SMD,METAL FILM,1/10W,332OHMS,1%,S0805

R20,R21,R25,R26,R27,R28

S25000-4751SMT RESISTOR,SMD,METAL FILM,1/10W,4.75K,1%,S0805

R29,R30
R22,R23,R24,R36,R37,R45

S25000-1002SMT RESISTOR,SMD,METAL FILM,1/10W,10.0K,1%,S0805

R46,R47,R48,R49
R31,R32

S25000-2210SMT RESISTOR,SMD,METAL FILM,1/10W,221OHMS,1%,S0805

R33

S25000-1000SMT RESISTOR,SMD,METAL FILM,1/10W,100OHMS,1%,S0805

R34,R35

S25008-1002SMT RESISTOR,SMD,PREC,MF,1/10W,10.0K,0.5%,S0805

R50,R51,R52,R53,R54,R55

S25008-4751SMT RESISTOR,SMD,PREC,MF,1/10W,4.75K,0.5%,S0805

R56,R57,R58,R59,R60,R61
R62,R63,R64,R65,R66,R67

S25001-1211SMT RESISTOR,SMD,1.21K,1/4W,1206,1%,TR

R71,R72
R68,R69,R70

S25000-2671SMT RESISTOR,SMD,METAL FILM,1/10W,2.67K,1%,S0805

R74

S25001-1001SMT RESISTOR,SMD,1K,1/4W,1206,1%,TR

R75,R76,R77,R78

S25001-1000SMT RESISTOR,SMD,100OHMS,1/4W,1206,1%,TR

R79,R80

S25000-2211SMT RESISTOR,SMD,METAL FILM,1/10W,2.21K,1%,S0805

R81,R82

S25001-1213SMT RESISTOR,SMD,121K,1/4W,1206,1%,TR

R83,R84,R85,R86

S25000-3321SMT RESISTOR,SMD,METAL FILM,1/10W,3.32K,1%,S0805

R87,R88,R89,R90

S25010-3SMT

RESISTOR,SMD,MF,1W,20.0K,1%,SURGE

R91,R92

S25000-4752SMT RESISTOR,SMD,METAL FILM,1/10W,47.5K,1%,S0805

R93,R94

S25000-2001SMT RESISTOR,SMD,METAL FILM,1/10W,2.00K,1%,S0805

R95

S25000-3741SMT RESISTOR,SMD,METAL FILM,1/10W,3.74K,1%,S0805

R96

S25000-3011SMT RESISTOR,SMD,METAL FILM,1/10W,3.01K,1%,S0805

R97

S25000-2672SMT RESISTOR,SMD,METAL FILM,1/10W,26.7K,1%,S0805

R98,R99

S25000-2002SMT RESISTOR,SMD,METAL FILM,1/10W,20.0K,1%,S0805

R100,R101,R102

S25000-1001SMT RESISTOR,SMD,METAL FILM,1/10W,1.00K,1%,S0805

R103,R104,R105,R106,R107

S25000-5622SMT RESISTOR,SMD,METAL FILM,1/10W,56.2K,1%,S0805

R108

N.A. X1

S17900-8SMT

IC,SMD,CMOS,INVERTER,SCHMITT,HEX,HC14A(SS)

N.A. X2

S25070-11SMT

IC,SMD,CMOS,OSCILLATOR,DIVIDER,60MHZ,SOIC8,(SS)

N.A. X3

S25070-3SMT

CPLD,PROGRAMMABLE,XC9536,44-PIN,VQFP(SS)

N.A. X4

S25070-10SMT

IC,SMD,CMOS,CPLD,XC9572,PLCC44(SS)

N.A. X5

M15105-7SMT

IC,SMD,CMOS,CONVERTER,A/D,MPU,10-BIT(SS)

X6,X7,X8

S15128-18SMT

IC,OP-AMP,SMT,QUAD,HIGH-PERF,33074D

N.A. X9

S15018-11SMT

IC,SMD,CMOS,SWITCH,ANALOG,QUAD,201(SS)

X10

S15128-10SMT

IC,SMD,VOLTAGE REF,ADJ, PRECISION,431I,SOIC-8

N.A. X11

S15018-21SMT

IC,SMD,CMOS,DRIVER,MOSFET,4451, SOIC-8(SS)

X12

S25068-14SMT

IC,SMD,VOLTAGE REGULATOR,ADJ,FLYBACK,3A,TO-263

X13

M15102-4SMT

IC,ARRAY,DRIVER,PERIPHERAL,NPN,DARLINGTON

ITEM REQ'D PART No.

DESCRIPTION

G4018-C

SPI REMOTE/UI PC BOARD BLANK

M19436-3

POTTING TRAY

S8025-80

SELF TAPPING SCREW

L11166-1

FLEX CIRCUIT ASSEMBLY

4.00

fl oz

E2527

EPOXY ENCAPSULATING RESIN

.108

fl oz

E3539

ELECTRICAL INSULATING COMPOUND

N.B. 7

S25336-1

SOFTWARE CPLD (X3)

N.C. 8

S25337-1

SOFTWARE CPLD (X4)

N.D. 9

PROGRAM X2 to 250K Hz

N.K. 10

S24671

KEYING PLUG

C1,C2,C3,C4,C5,C6,C7,C8,C9

S25020-3SMT

CAPACITOR,SMD,CERAMIC,0.1MF,50V,10%,X7R,S0805

C10,C11,C12,C13,C14,C15
C16,C17,C18,C19,C20,C21
C22,C23,C24,C25,C26,C27
C28,C29,C30,C31,C32,C33
C34,C35,C36,C37,C48,C49
C50,C54,C55,C56,C57
C38,C39

S25020-5SMT

CAPACITOR,SMD,CERAMIC,2700pF,50V,5%,X7R,S0805

C40

S13490-183

CAPACITOR,ALEL,120MF,50V,20%

C41

S25020-17SMT

CAPACITOR,SMD,CERAMIC,0.27MF,50V,10%,X7R,S1812

C42

S13490-179

CAPACITOR,ALEL,1000,35V,20%

C43

S25024-10SMT

CAPACITOR,SMD,TANTALUM,22MF,25V,10%,S7343

C44,C45,C46

S25024-2SMT

CAPACITOR,SMD,TANTALUM,1.0MF,35V,10%,S3528

C47,C51,C52,C53

S25024-3SMT

CAPACITOR,SMD,TANTALUM,2.2MF,20V,10%,S3528

C58,C59,C60,C61,C62

S25020-2SMT

CAPACITOR,SMD,CERAMIC,0.022MF,50V,10%,X7R,S0805

D1,D2,D3,D4,D5,D6,D7,D8

S25049-4SMT

DIODE,SMD,DUAL,200MA,30V,SCHOTTKY,SOT-23

D9,D10,D11

S25040-1SMT

DIODE,SMD,1A,400V,FAST RECOVERY,DO-214BA

D12,D13,D14,D15

S25040-2SMT

DIODE,SMD,1A,400V,DO-214BA/AC

D16,D17

S25040-5SMT

DIODE,SMD,DUAL,0.200A,70V,UFR

D18,D19

S25040-4SMT

DIODE,SMD,DUAL,0.200A,70V,UFR

D20

S25049-2SMT

DIODE,SMD,1A,30V,SMA,SCHOTTKY

DZ1,DZ2

S25044-1SMT

ZENER DIODE,SMD,3W,5.1V,5%, SMB

DZ3,DZ4,DZ5,DZ6,DZ7,DZ8

S25044-3SMT

ZENER DIODE,SMD,3W,12V,5%, SMB

DZ9,DZ10

S25045-1SMT

ZENER_DIODE,SMD,225mW,12V,5%,SOT-23

FTP1,FTP2,FTP3,FTP4,FTP5

TESTPT_FUNTION FUNCTIONAL TEST POINT

FTP6
J33

S18248-10

CONNECTOR,MOLEX,MINI,PCB,10-PIN

J331

S24020-12

CONNECTOR,MOLEX,MINI,PCB,12-PIN,TIN

J332,J333

S24020-16

CONNECTOR,MOLEX,MINI,PCB,16-PIN,TIN

S25083-3SMT

CHOKE,SMD,POWER,47UH,10%,1.25A,

Q1,Q2,Q3,Q4

S25050-1SMT

TRANSISTOR,SMD,NPN,0.5A,40V,SOT-23,MMBT4401LT1

N.A. Q5,Q6

S25051-4SMT

TRANSISTOR,SMD,NMF,SOT-23,0.115A,60V,7002LT1(SS)

Q7,Q8

S25050-2SMT

TRANSISTOR,SMS,PNP,SOT23,0.5A, 40V,MMBT4403LT1

N.A. Q9

S25051-6SMT

TRANSISTOR,SMD,NMF,DPAK,TO-252,10A,100V(SS)

FOR ITEMS BELOW, REFER TO ELECTRONIC COMPONENTS DATABASE FOR COMPONENT SPECIFICATIONS

G-18
