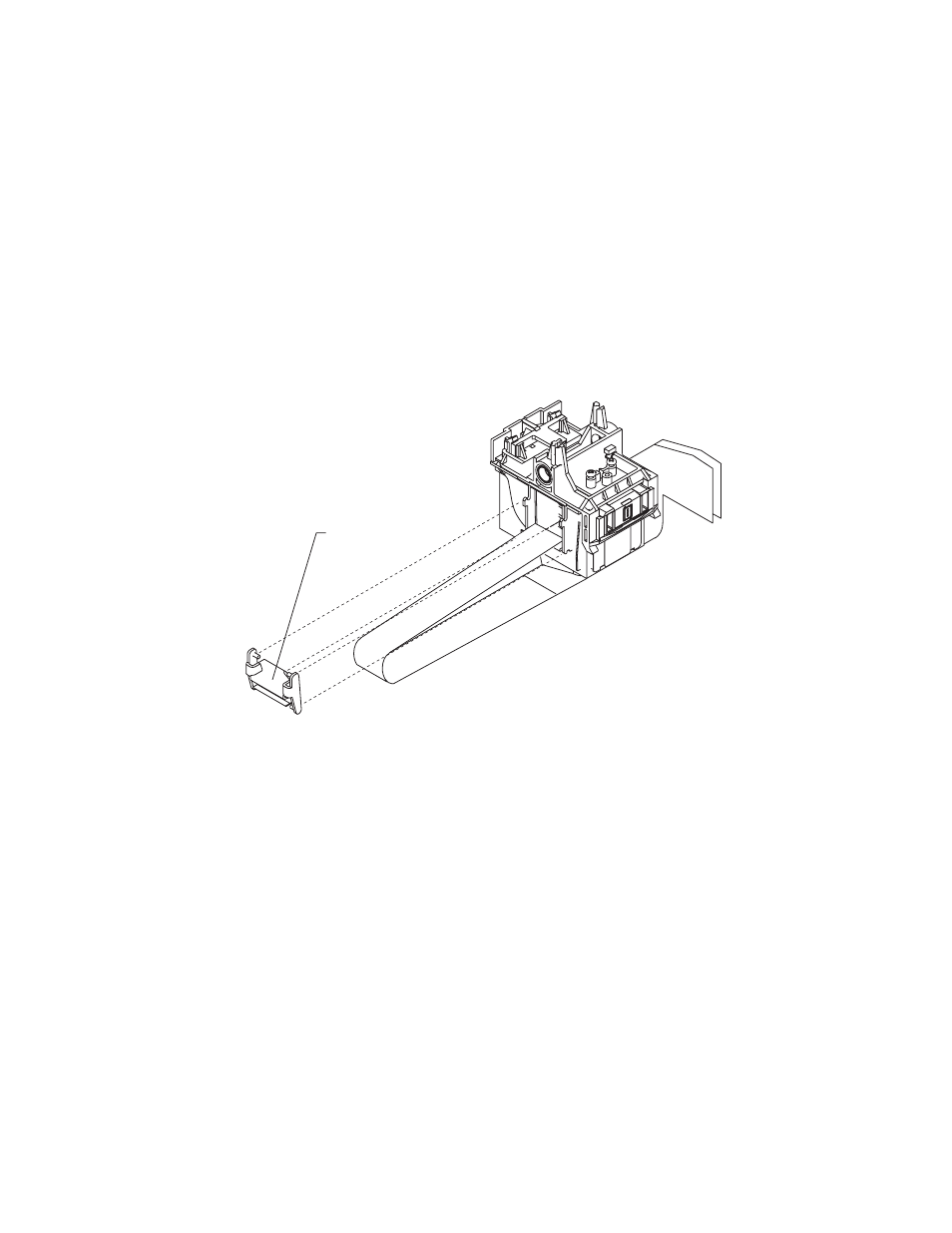

Print Head Cable Removal
1. Remove the top cover.
2. Remove the print cartridge.
3. Remove the carrier.
4. Remove the cable clip [A] from the left side of the carrier.
5. Remove the pointer from the front of the carrier.
6. Remove the 2 sensor mounting screws.
7. Push down the 2 latches that secure the cradle to the carrier and
pull the cradle up from the carrier.
8. Remove the print head cable from the alignment pins.
The new cable comes without the folds in it. Place the new cable
next to the old cable and fold the new cable in the appropriate
places.
A
