Chapter 2: Getting to Know the
Cable/DSL Wireless-Ready Router

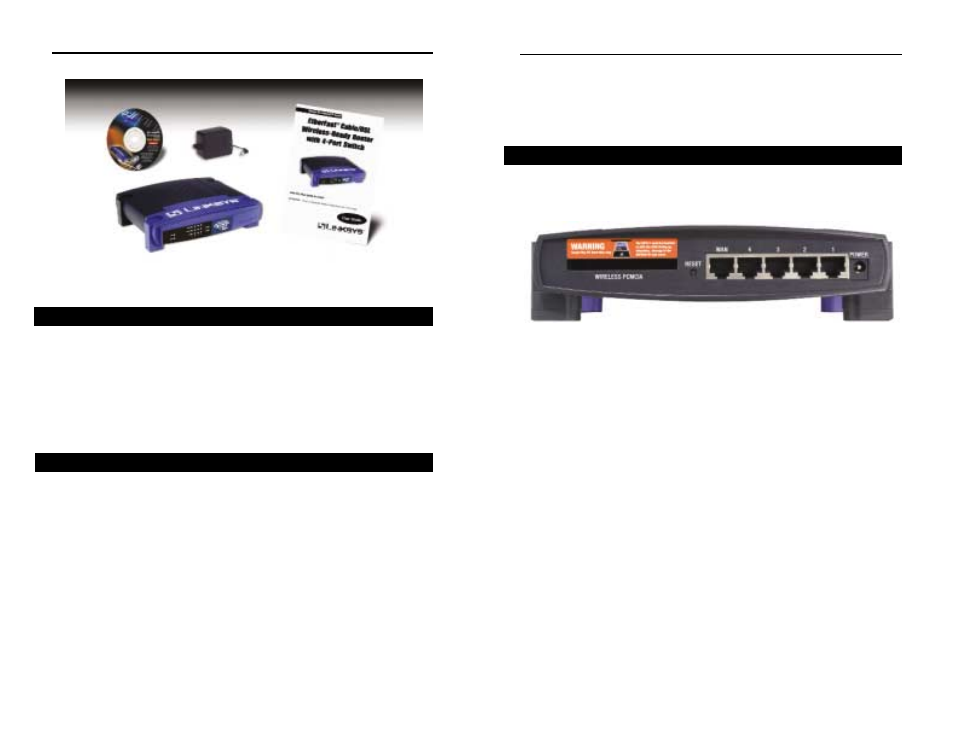

The Cable/DSL Wireless-Ready Router’s Rear Panel
The back panel of the Router is where all of the Router’s connections are made.
WAN
The WAN (Wide Area Network) Port is where you
will connect your cable or DSL modem.
Ports 1-4
These four LAN (Local Area Network) ports are
where you will connect networked devices, such as
PCs, print servers, and any other Ethernet devices
you want to put on your network. These ports will
auto-detect the use of crossover or straight RJ-45
cables.
Power
The Power Port is where you will connect the
included AC Power adapter.
PCMCIA Slot
This is where you can connect the optional wireless
PC card (not included) for wireless features.
3
Figure 2-1
2
Package Contents
• One Linksys EtherFast
®
Cable/DSL Wireless-Ready Router with 4-Port
Switch (1)
• One Power Adapter (2)
• One TechHelper CD-ROM (3)
• One User Guide (4)
• Quick Installation (not shown)
• One Registration Card (not shown)
Minimum Requirements
• Network Adapter with Ethernet (UTP CAT 5) Cabling and TCP/IP Protocol
Installed per PC
• Internet Explorer 4.0 or Netscape Navigator 4.7 or Higher for Web-Based
Configuration
• Cable or DSL Modem with Ethernet Connection and Internet Access
• CD-ROM Drive
• WPC11 for Wireless Connection (sold separately)
