OMMUNICATIONS
8.1 Communications Interface Port
The UPStation GXT 2U UPS has a standard DB-9 serial port female
connector located on the rear of the UPS unit. Several signals are pro-
vided on this port and are assigned as follows:
* Maximum voltage and current on pins 1, 7, 8, and 9 is 60VDC; 10.0 mA.
8.2 Pins 4 & 5 - Remote Shutdown on Battery
This pin is functional only when the UPS is in battery mode. If the UPS
is being powered by the mains, Pin 4 will ignore any signal on this pin.
Pin 4 requires a 5-12 VDC signal to shutdown. This normally comes
form the serial port using Liebert’s contact closure cable. It cannot be
used with just a contact closure unless the relay is used to switch a
voltage source. A 5-12 VDC signal for 1.5 seconds or greater is
required to signal a shutdown. Signals for less than 1.5 seconds will be
ignored. After Pin 4 receives a shutdown signal for 1.5 seconds, the
command cannot be canceled.
A battery shutdown signal on Pin 4 will NOT cause an immediate shut-
down. A shutdown signal will start a 2-minute shutdown timer. The
timer cannot be stopped. After 2 minutes, the UPS will shut down.
Pin Assignment Description
1 Low Battery (open collector)
2 UPS TxD (typical RS-232 levels)
3 UPS RxD (typical RS-232 levels)
4 Remote Shutdown (5-12VDC, 10-24 mA max); battery operation
5 Common
6 Remote Shutdown (short to pin 5); all modes of operation
7 Low Battery (open emitter)
8 Mains Fail (open emitter)
9 Mains Fail (open collector)

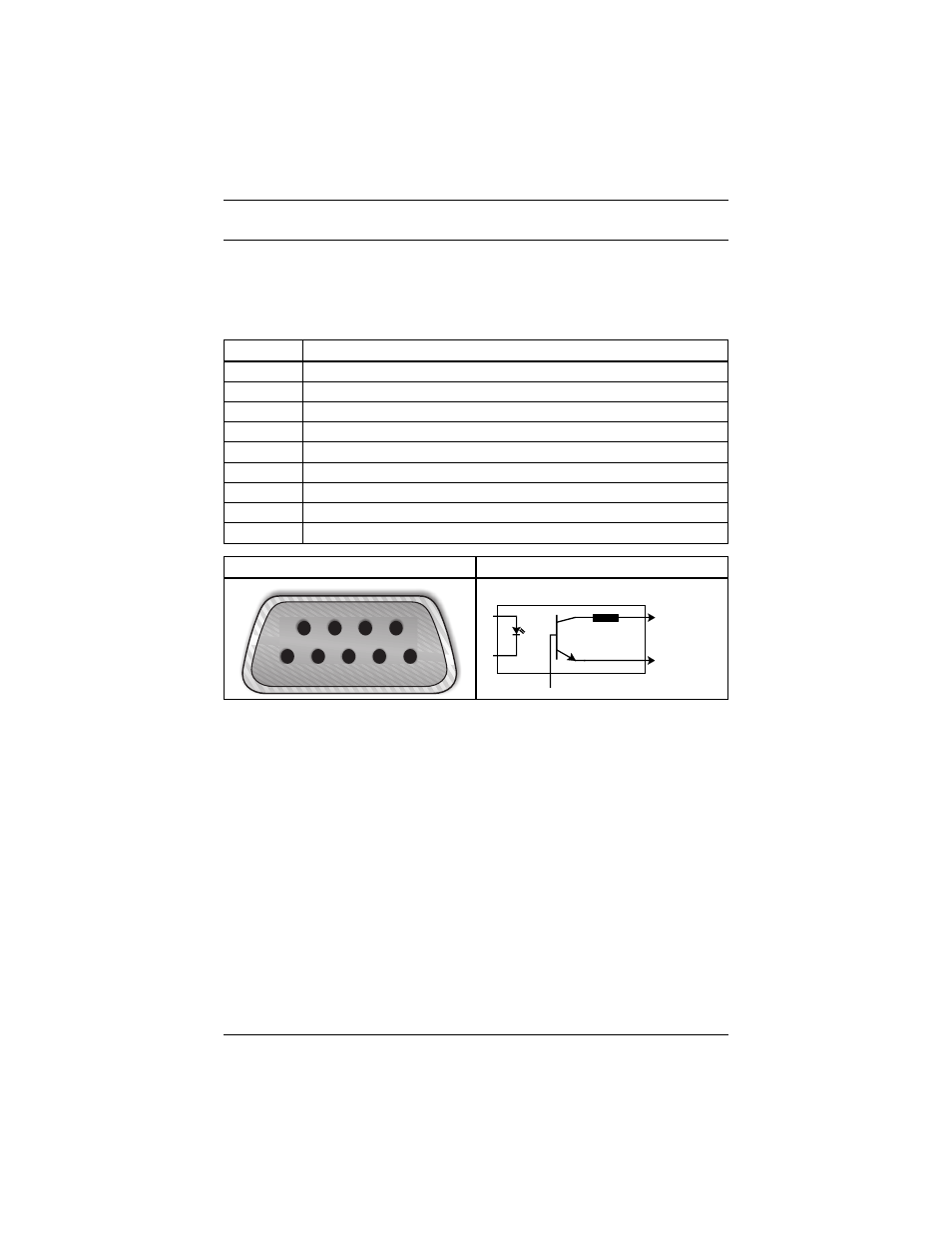

Pin Assignment Collector to Emitter*
5 4 3 2 1
6 7 8 9
(-)
(+)
330 Ohms
Open
Collector
Open
Emitter
