2.6.6 LSI40919H Connector
The LSI40919H I/O bracket is configured as shown in
. One
HSSDC connector is used to connect the adapter channel to the Fibre
Channel subsystem.

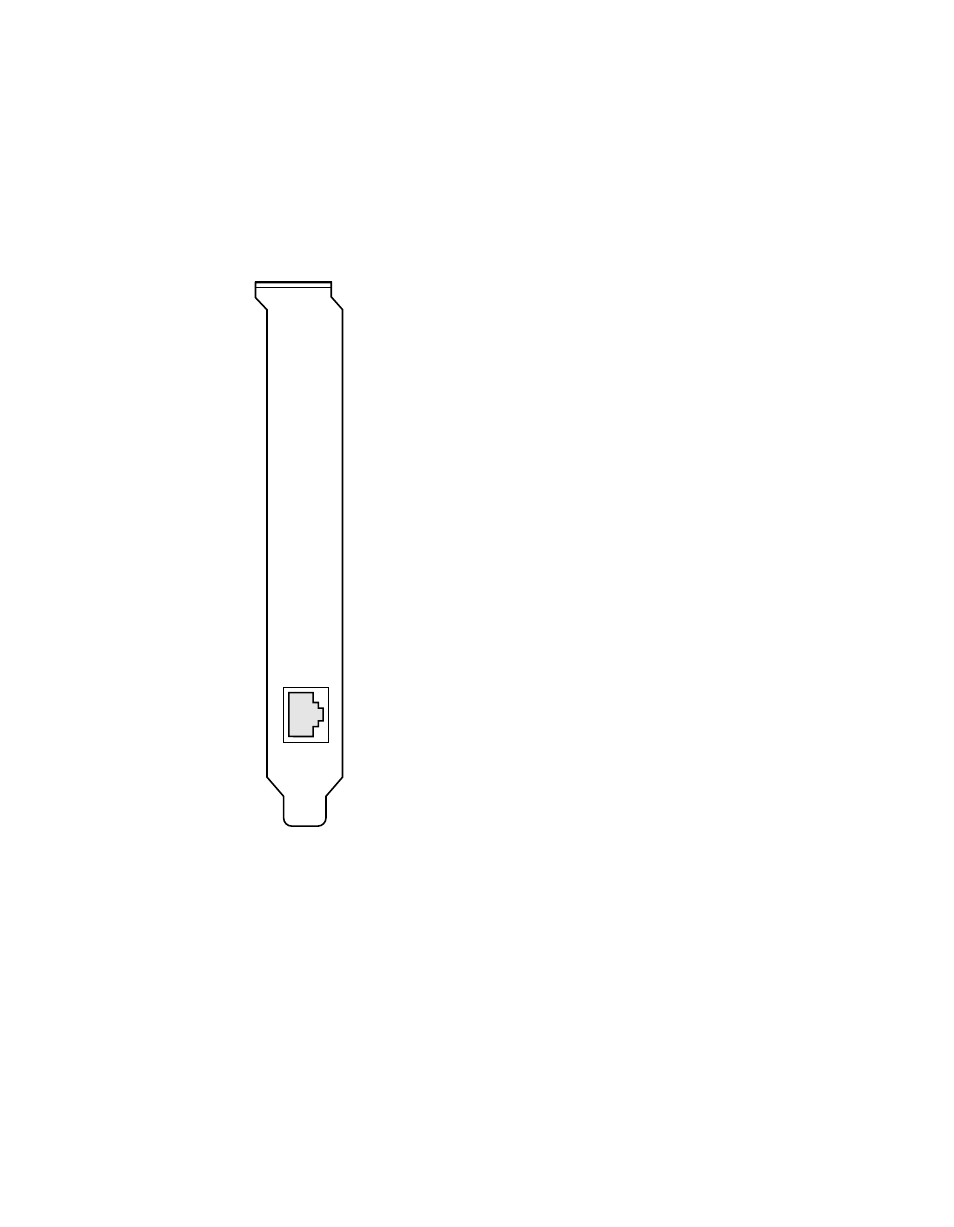

Figure 2.6
LSI40919H Connector
Channel 0
