20
Connections (Continued)

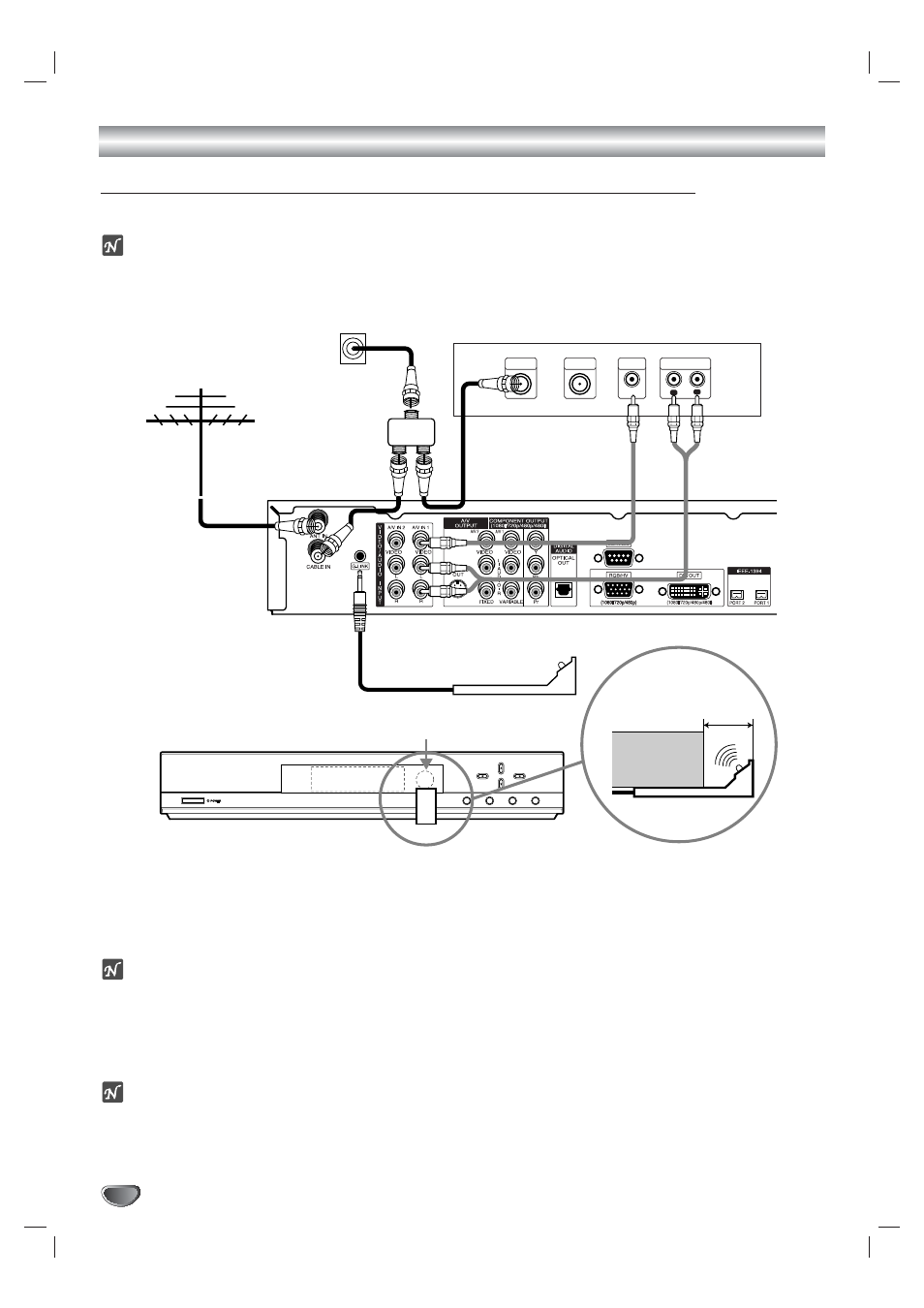

Cable Box Connections using “A/V IN 1” jack and splitter
You can use a splitter if you cable box does not have a “LOOP OUT” jack.
ote
A splitter is not included in the package and must be purchased separately.
1 Connect the your cable TV (CATV) service to the splitter and connect the splitter to the “CABLE IN” jack on
your Cable Box and to the “CABLE IN” jack on the HD DVR with coaxial RF cables.
2 Connect the “AUDIO OUT” and “VIDEO OUT” jacks from your Cable Box to the “A/V IN 1” jack on the HD DVR
with standard RCA-type cables.
ote
The HD DVR cannot receive program information if you connect the “VIDEO OUT” jack from your Cable Box to the
“A/V IN 2” jack on the HD DVR.
3 You can watch terrestrial digital broadcasting if you connect your Antenna to the “ANT IN” jack on the HD DVR
with a coaxial RF cable.
otes
• Select “Cable Box” menu option to watch cable broadcasting via cable box.
• Select “Digital” menu option to watch unscrambled digital terrestrial/cable broadcasting.
L R
AUDIO INPUT VIDEO
INPUT
HD DVR Connection Panel
Cable Box Connection Panel
Cable Box (front view)
IR Sensor
Cable Box Controller
Cable TV
Wall Jack Panel
Antenna
Splitter
CABLE
INPUT LOOP OUT
Cable Box
(side view)
1/2" to 1"
