Connections (Continued)

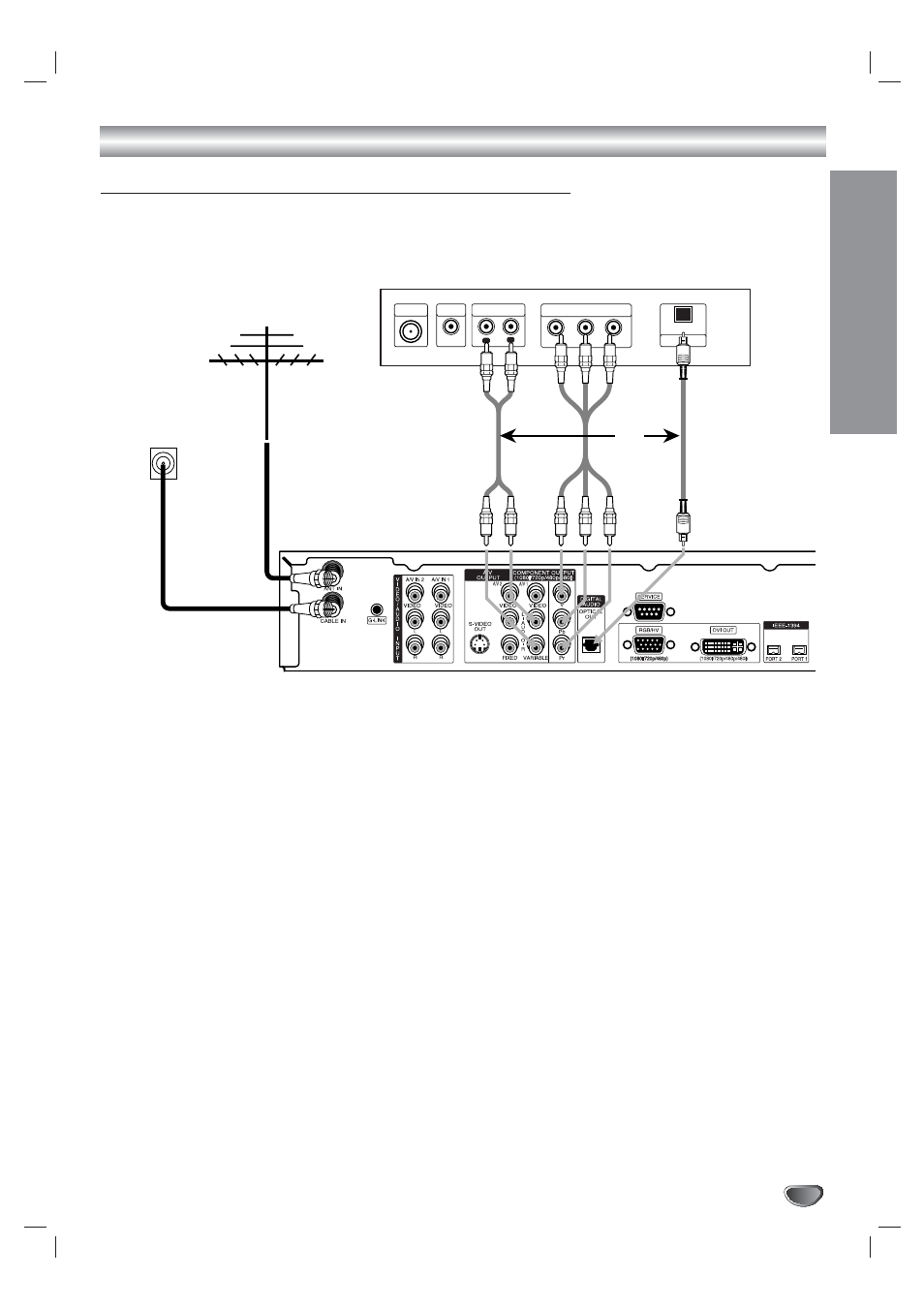

HD Monitor Component (YPbPr) Connections
1 Connect your Antenna to the “ANT IN” jack on the HD DVR with a coaxial RF cable.
2 Connect your cable TV (CATV) service to the “CABLE IN” jack on the HD DVR with a coaxial RF cable.
3 Connect the “COMPONENT OUT” jacks from the HD DVR to the “COMPONENT IN” jacks on your TV with
RCA-type cables. (The Output Selection must be set to YPbPr, refer to Setting the Display Format, see page
23).
4 Connect the L/R “AUDIO OUT” jacks from the HD DVR to the L/R “AUDIO IN” jacks on your TV with RCA-type
cables. If your TV is equipped with a “Digital Audio Input (Optical)” jack, connect to “DIGITAL AUDIO (OPTICAL
OUT)” jack.
Cable TV
Wall Jack Panel
Antenna
Y Pb Pr
COMPONENT VIDEO INPUT
L R
AUDIO INPUT VIDEO
INPUT
ANTENNA
INPUT
HD Ready TV Connection Panel
HD DVR Connection Panel
DIGITAL INPUT
OPTICAL
OR
