Connections (Continued)

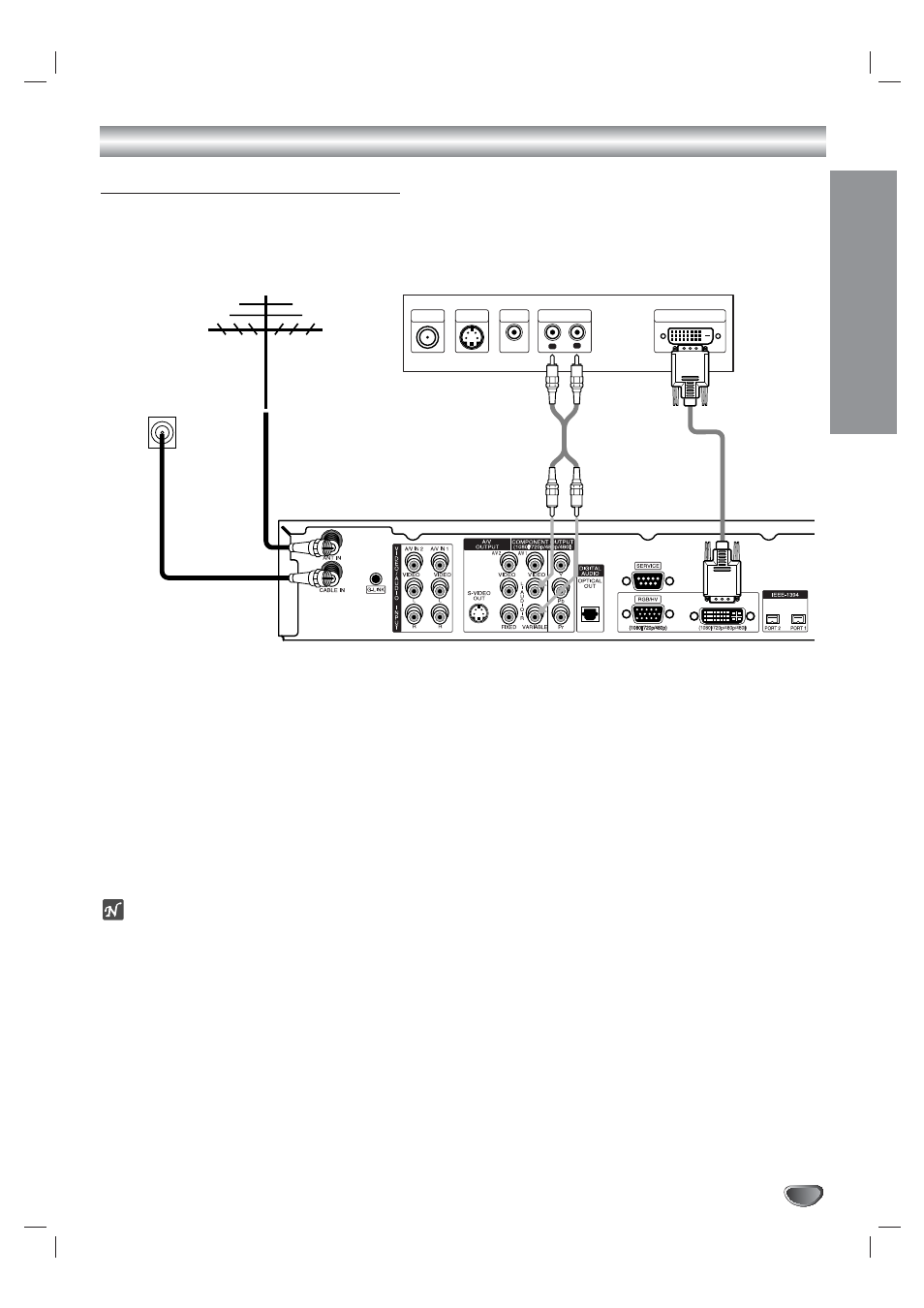

HD Monitor DVI Connections
1 Connect your Antenna to the “ANT IN” jack on the HD DVR with a coaxial RF cable.
2 Connect your cable TV (CATV) service to the “CABLE IN” jack on the HD DVR with a coaxial RF cable.
3 Connect the “DVI OUT” jack from the HD DVR to the “DVI IN” jack on your TV with a DVI-type connector. (The
Output Selection must be set to DVI, refer to Setting the Display Format on page 23.)
4 Connect the L/R “AUDIO OUT” jacks from the HD DVR to the L/R “AUDIO IN” jacks on your TV with standard
RCA-type cables.
otes
• A DVI-HDTV input is one that is compliant with EIA-861 and HDCP specifications. Check your TV or monitor’s
user manual to find out if the TV or monitor’s DVI input is compliant with these specifications.
• Some HD Monitors designed for PC applications using DVI-D may not work with this connection.
Cable TV
Wall Jack Panel
Antenna
L R
AUDIO INPUT DVI-HDTV INPUT VIDEO
INPUT
S-VIDEO
INPUT
ANTENNA
INPUT
HD Ready TV Connection Panel
HD DVR Connection Panel
