3-2. Port Configuration
Five functions, including Port Status, Port Configuration, Port Description,
Simple Counter and Detail Counter are contained in this function folder for port
monitor and management. Each of them will be described in detail orderly in the
following sections.
3-2-1.Port Status
The function Port Status gathers the information of all ports’ current status
and reports it by the order of port number, link status, port state, Auto-Negotiation
status, speed/duplex and flow control. An extra media type information for the
module port 9 to 24 is also offered (See Fig. 3-11).

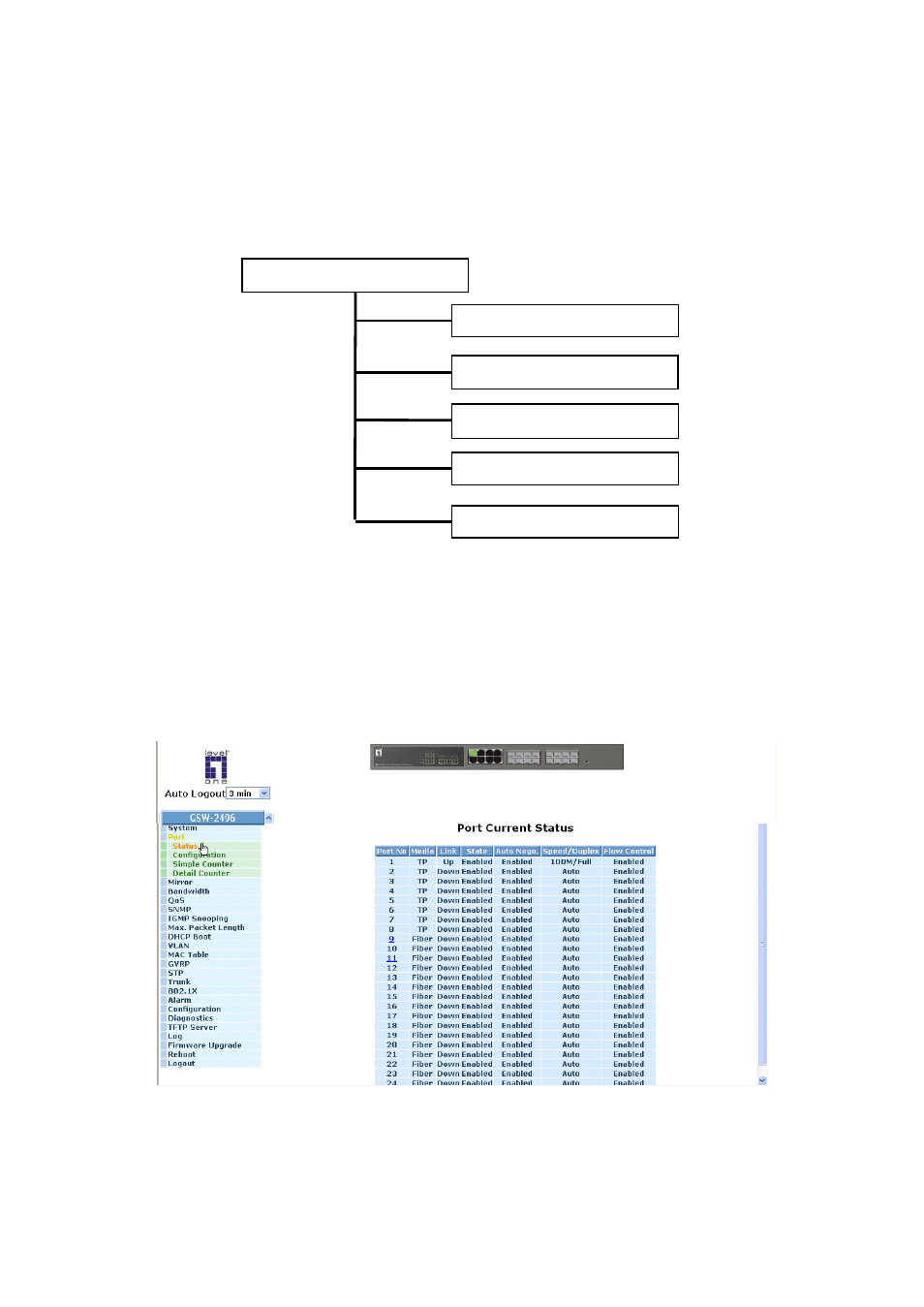

Fig. 3-10
Status
Configuration
Description
Simple Counter
Port Configuration
Detail Counter
