Observe LED Behavior
3-4
INA Module Installation and Configuration Guide

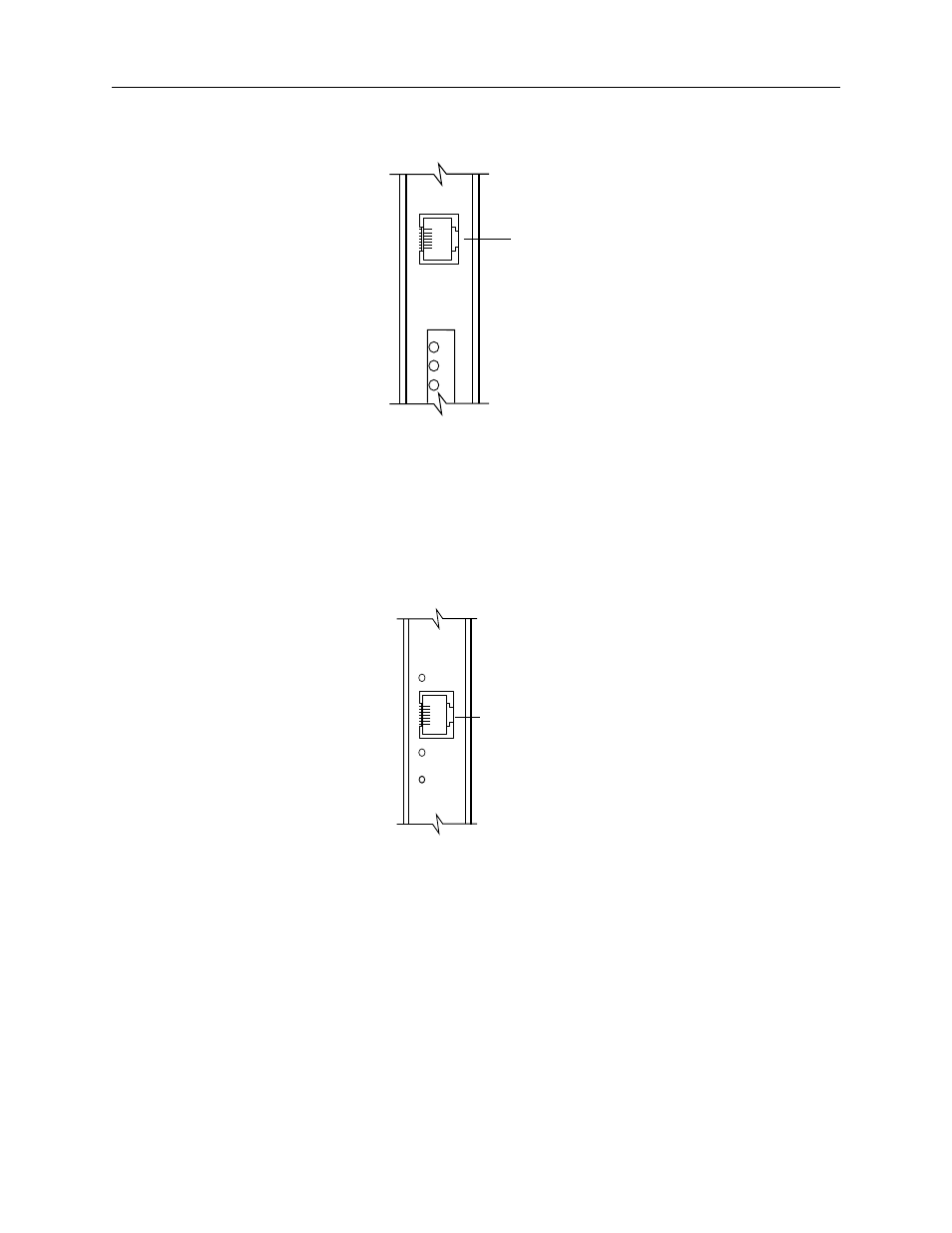

Figure 3-4
T1/PRI Connection
Connect an Ethernet Cable
Use a category 5 twisted pair cable, as specified by the EIA/TIA-568-B wiring standard,
with an RJ-48C connector to connect the INA Ethernet connector (Figure 3-5) to the
nearest network hub. See “Ethernet Interface” on page B-2 for more information.
Figure 3-5
Ether0 Connection
Observe LED Behavior
Check the T1/PRI, system, and Ethernet LEDs to verify that the installed INA module is
operating properly.
T1/PRI LEDs
These LEDs (Figure 3-6) indicate the status of the T1/PRI line and operate in the same
way as on a 100D module. Make sure they indicate that the T1/PRI line is operating
properly.
T1/PRI port
1210-003
M
O
N
D
S
1
M
O
N
Ethernet port (Ether 0)
1210-004
E
T
H
E
R
N
E
T
