Calculite ® HID Downlight
C4T4VM
Page 4 of 4 4½" Aperture, 2pc Vertical, GU6.5 Medium Beam
20W GU6.5 GE ConstantColor CMH Lamp, Lumen Rating = 1615 lms, Aromat Electronic Ballast, CL Finish Trim
39W GU6.5 GE Constantcolor CMH Lamp, Lumen Rating = 3400 lms, Aromat Electronic Ballast, CL Finish Trim
ANGLE MEAN CP LUMENS
0 1243
5 1199 113
10 1100
15 964 271
20 800
25 635 299
30 512
35 423 258
40 287
45 112 101
50 8
55 0 2
60 0
65 0 0
70 0
75 0 0
80 0
85 0 0
90 0
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 683 42.31 65.45
0-40 941 58.3 90.19
0-60 1043 64.64 99.99
0-90 1043 64.64 100
40-90 102 6.34 9.81
60-90 0 0 0.01
90-180 0 0 0
0-180 1043 64.64 100
LUMINANCE SUMMARY CD. / SQ. M.
ANGLE MEAN CD/SQ M
45 15493
55 0
65 0
75 0
85 0
**EFFICIENCY = 64.6%** CERTIFIED TEST REPORT NO. 3832FR
SC = .8

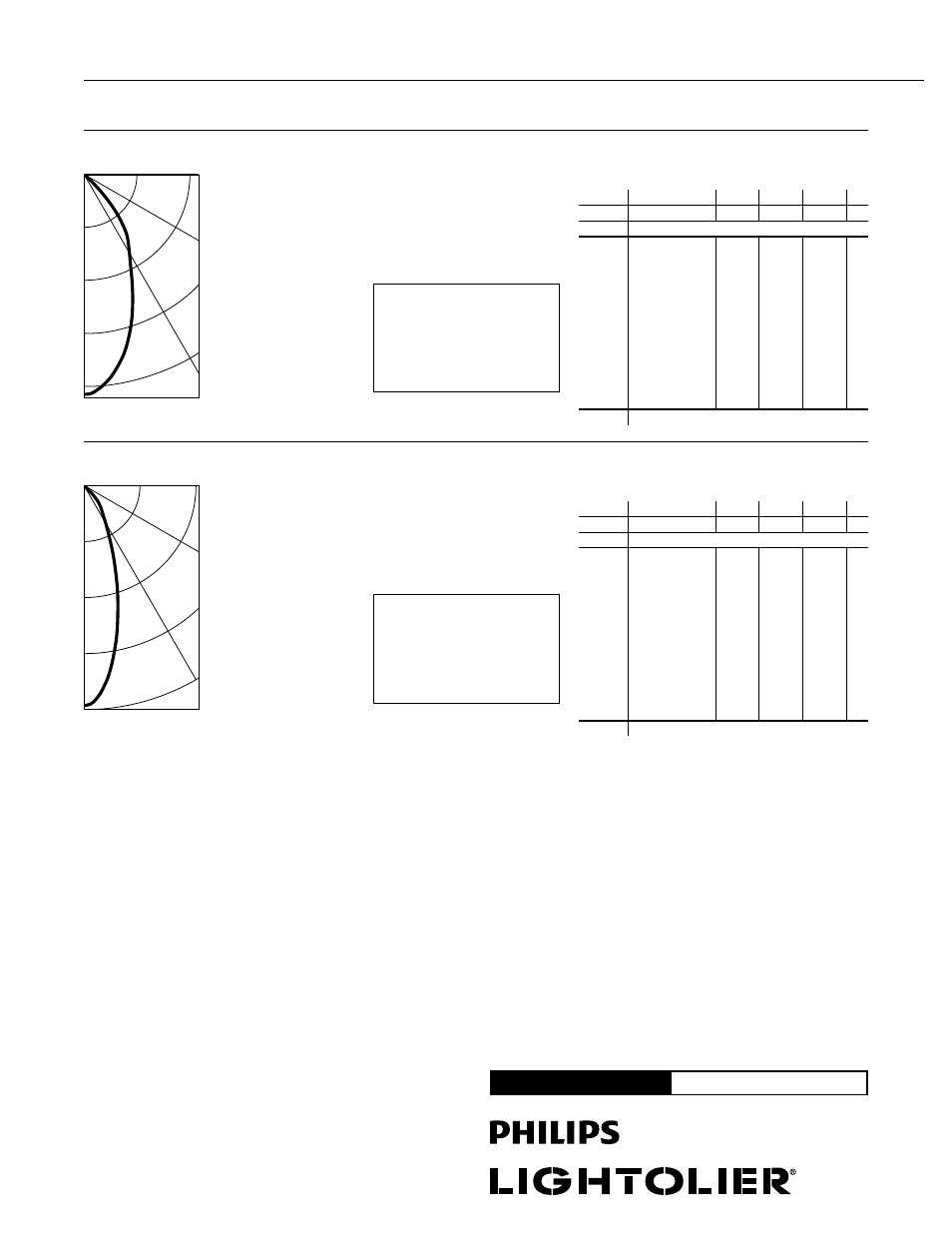

CANDLEPOWER DISTRIBUTION
30°
60°
Coefficients of Utilization
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
0 .77 .77 .77 .77 .75 .75 .72 .72 .69 .69 .65
1 .74 .72 .71 .70 .71 .69 .68 .67 .66 .65 .62
2 .71 .68 .66 .64 .67 .63 .65 .62 .63 .61 .59
3 .68 .64 .62 .59 .63 .59 .62 .58 .60 .57 .55
4 .65 .61 .58 .56 .60 .55 .59 .55 .58 .54 .52
5 .62 .57 .54 .52 .57 .51 .56 .51 .55 .51 .49
6 .59 .54 .51 .49 .54 .48 .53 .48 .52 .48 .47
7 .57 .51 .48 .45 .51 .45 .50 .45 .49 .45 .44
8 .54 .48 .45 .43 .48 .42 .47 .42 .47 .42 .41
9 .51 .46 .42 .40 .45 .40 .45 .39 .44 .39 .38
10 .49 .43 .39 .37 .43 .37 .42 .37 .42 .37 .36
LUMINAIRE INPUT WATTS = 25
ANGLE MEAN CP LUMENS
0 3930
5 3674 342
10 3063
15 2333 665
20 1661
25 1129 543
30 774
35 564 364
40 418
45 178 150
50 1
55 0 0
60 0
65 0 0
70 0
75 0 0
80 0
85 0 0
90 0
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 1550 45.61 75.09
0-40 1914 56.32 92.73
0-60 2064 60.73 100
0-90 2064 60.73 100
40-90 150 4.42 7.27
60-90 0 0 0
90-180 0 0 0
0-180 2064 60.73 100
1000
2000
3000
4000
LUMINANCE SUMMARY CD. / SQ. M.
ANGLE MEAN CD/SQ M
45 24675
55 0
65 0
75 0
85 0
**EFFICIENCY = 60.7%** CERTIFIED TEST REPORT NO. 3915FR
SC = .6
CANDLEPOWER DISTRIBUTION
30°
60°
Coefficients of Utilization
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
0 .72 .72 .72 .72 .71 .71 .67 .67 .65 .65 .61
1 .70 .68 .67 .66 .67 .65 .65 .63 .62 .61 .58
2 .67 .65 .63 .61 .64 .61 .62 .59 .6 .58 .56
3 .65 .62 .59 .57 .61 .57 .59 .56 .58 .55 .54
4 .62 .59 .56 .54 .58 .54 .57 .53 .56 .53 .51
5 .60 .56 .53 .51 .56 .51 .54 .51 .54 .50 .49
6 .58 .54 .51 .49 .53 .49 .52 .48 .52 .48 .47
7 .56 .51 .48 .46 .51 .46 .50 .46 .49 .46 .45
8 .54 .49 .46 .44 .48 .44 .48 .44 .47 .43 .43
9 .51 .47 .44 .42 .46 .42 .46 .41 .45 .41 .41
10 .49 .44 .42 .40 .44 .40 .44 .40 .43 .39 .39
LUMINAIRE INPUT WATTS = 45
1000
2000
3000
4000
300
600
900
1200
