Lightolier IC Series - Manual

Lens
IC Series
Page 1 of 2

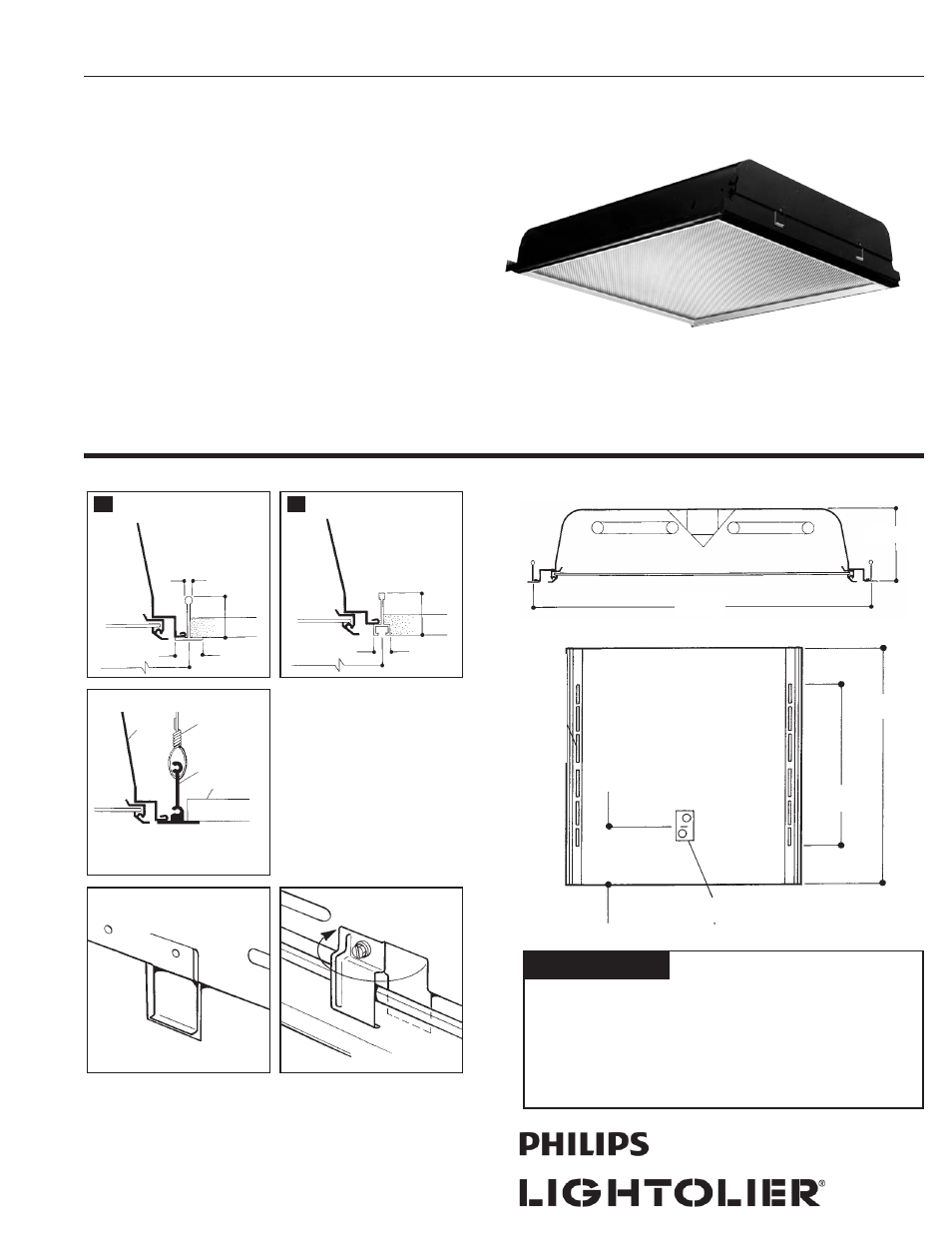

2' x 2' Recessed Fluorescent, IC Lens Frame Troffer
Static, 2-6" U Lamp T8
Mounting Methods Dimensions
• UL Listed Type IC Recessed Luminaire
(Intended for Direct Thermal Insulation Contact).
• Construction provides optimum thermal performance.
• Ballast mounted with thermal heat sink.
• Ideal for fire rated ceilings.
• Black exterior for cooler ballast operating temperature.
• 5" deep body.
• 71.6% efficient
• 2-9/16" lamp to lens for better lamp obscuration.
• Hemmed over side rails for maximum safety.
• Fixture ends turned-in for safe handling.
• Built-in earthquake clips.
• True Mitered corner steel lens frame.
• Spring loaded rooster head latches.
• 18 gauge steel hinges.
• Flat and regressed aluminum doors available.
• Construction to meet Chicago Plenum requirements is available.
23-7/8"
(606mm)
5"
(127mm)
15-11/16"
(398mm)
2"x 2-1/2" access plate
with two K.O.s (7/8" dia.)
24" (610mm)
5" (127mm)
G exposed T-grid ceiling. T exposed slot T-grid ceiling.
drywall kit. (See options)
1/4" max.
1-1/2" max.
15/16"
or 1" 24"
Type “G”
Fixture
Support
(by others)
Drywall Kit
(See Options)
Drywall
(by others)
1-7/8" max.
9/16"
24"
earthquake clip
installed
(lay-in grid)
earthquake clip
before
installation
Order Catalog Number: FK92X2.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
For Factory Technical Information: (978) 657-7600 • Fax (978) 658-0595 08/10
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © Philips Group
Section 7/Folio Q80-10 Rev. A
