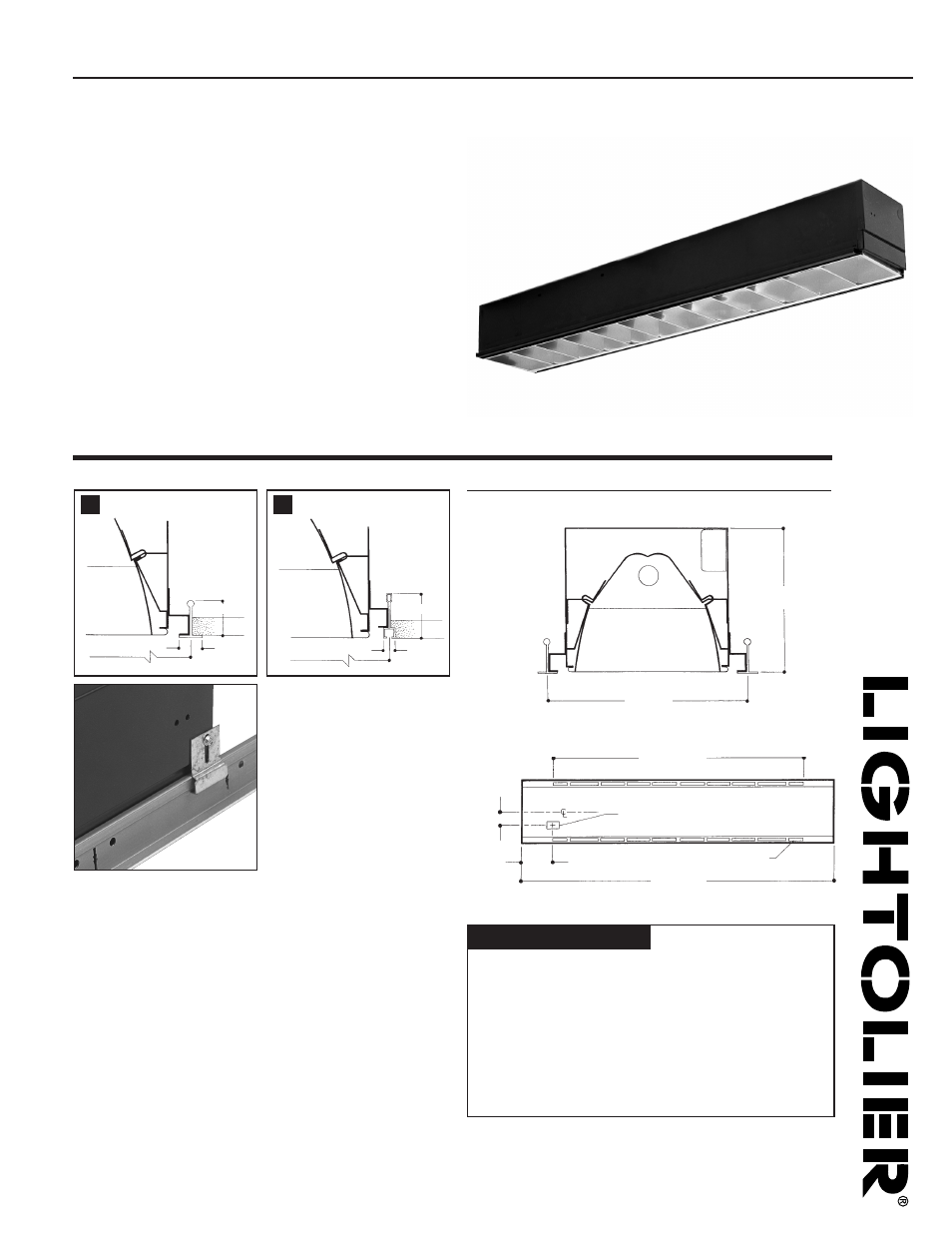

Lightolier Lytecel LIS9G12PR132 - Manual

Lytecel Recessed Fluorescent
LIS9G12PR132
Page 1 of 2 9" x 48", 12 Cell (1 Row) Parabolic Louver, Static or Air Supply/Return, 1 Lamp T8
IES RP1 For VDT Areas
Features
• Meets IES RP1 for lighting VDT areas.
• 65.2% efficient (T8).
• 1.5 spacing mounting ratio.
• Specular, low iridescence, pre-anodized aluminum louver.
• Vertical grain on louver eliminates reflected lamp image on cross
baffle.
• Louver frame with positive light stop.
• Spring loaded latches (self centering).
• Reversible louver hinging.
• Louver has protective dust guard.
• Only 6-1/8" deep body.
• Black housing exterior for cooler ballast operating temperature.
• Turned-in edges for safe handling.
• UL-Listed twin knockout access plate.
• Air closure strips (optional).
• Construction to meet NYC Code or Chicago Plenum is available.
• Optional DALI ballast accepts digital dimming commands from
computers, scene controllers and automatic control devices.
Mounting Methods Dimensions
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier a Genlyte Thomas Company www.lightolier.com
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
Copyright 2003 Lightolier
Section 2/Folio G07-10
G exposed T-grid ceiling.
9"
9/16"
to 1"
T exposed slot T-grid ceiling.
9"
1-1/2" max.
9/16"
1-1/2" max.
9" (229mm)
6-1/8"
(156mm)
2" x 2-1/2" Access Plate
with (2) 7/8" K.O.s
2-5/32"
(55mm)
48" (1219mm)
5" (127mm)
39-1/4" (997mm)
Air Supply Slots
(LIA only)
4 hold-down clips
supplied with fixture
5/03
