Lightolier Guardsman GVB Series 2X2 - Manual

GUARDSMAN
GVB SERIES 2X2

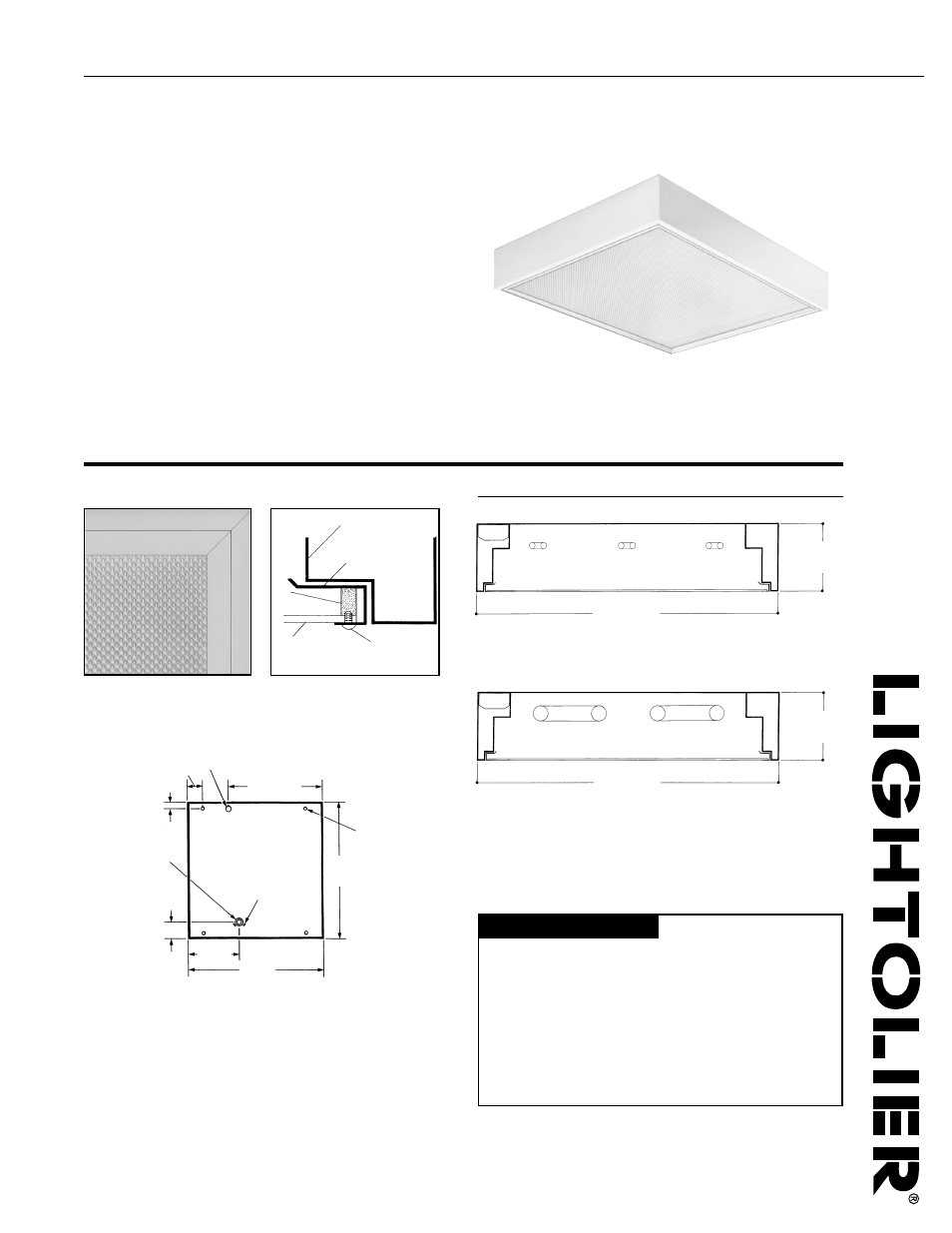

Page 1 of 2 VANDAL RESISTANT, 2'x2' SURFACE BOX FLUORESCENT, 2 LAMP T8 OR 3 LAMP TT5
FEATURES DIMENSIONS
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier a Genlyte Thomas Company www.lightolier.com
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902
Section 6A/Folio P40-12
Features
• Excellent for locations where vandal resistance is required.
• 20 gauge steel body.
• Prismatic lens is 3/16" thick, pattern 12, minimum impact strength,
130 foot pounds.
• Full perimeter gasketing (closed cell Neoprene) between door frame
and lens.
• Tamper resistant holt head screws secure lens to housing.
• 45° mitered corners (body and door frame).
• Only 5-1/2" deep.
• 55.5% efficient (2U lamp T8).
• Side mounted ballast for cooler operation.
• Fully enclosed wiring.
• Meets NYC Code requirements.
24" (610mm)
5-1/2"
(140mm)
3"
(76mm)
1-1/4"
(32mm)
2" (51mm)
7/8" K.O.
7/8" Dia. K.O.
within
1-7/8" dia. K.O.
24"
(610mm)
24"
(610mm)
9/32"
mounting
hole
3/16" x 5/8"
K.O.
16-1/2"
(419mm)
9-1/2"
(241mm)
Fixture
Lens
Door
Frame
Holt Head
Screw
Gasketing Details (FS) Flat steel frame.
Gasketing
(Close Cell Neoprene)
24" (610mm)
5-1/2"
(140mm)
