1

Service

Service Manual

28

The History Screen shows the status of various counters and faults. Within the History Screen there are three separate screens. These
screens are the “Lockout Faults”, “Blocking Faults” and “Runtime History”.

The default screen is the “Lockout Faults” screen. This screen allows you to view the last ten (10) lockout faults. Preceded by each
fault is the date and time of when the fault occurred. The lockout faults can be reset by pressing the RESET FAULTS button.

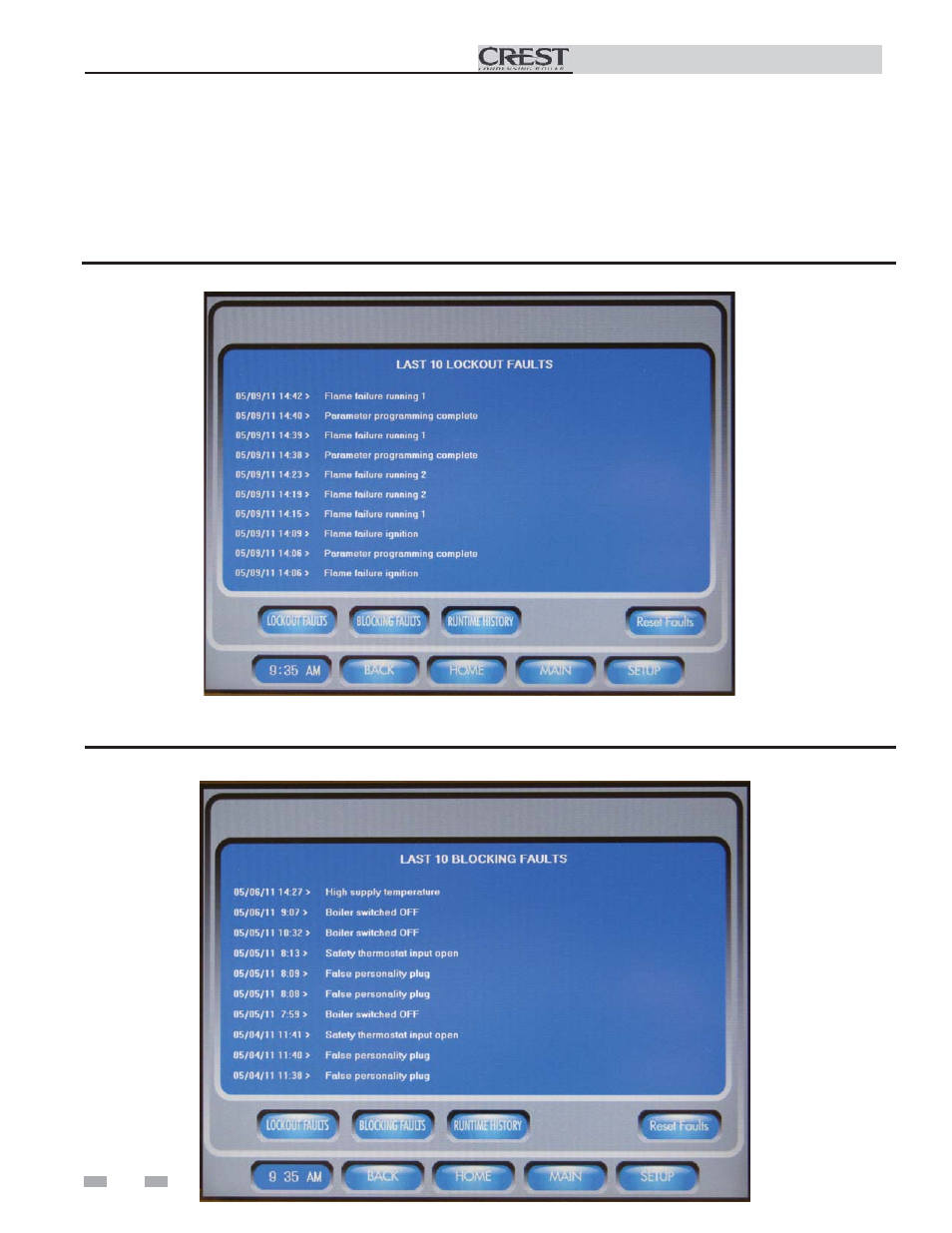

Figure 1-11 History Screen_Lockout Faults

History Screen

Figure 1-12 Graph Screen_Blocking Faults

The next screen is the “Blocking Faults” Screen. This screen allows you the view the last ten (10) blocking faults. Preceded by each
fault is the date and time of when the fault occurred. The blocking faults can be reset by pressing the RESET FAULTS button.
