Connecting the Wireless Receiver
15
LED Indicators on the Wireless Receiver
Use the LED indicators on the wireless receiver to observe the status of the receiver, cameras,
and SD card.
The blue LEDs indicate the following:
•
MANUAL: Channel switching set to manual
•
AUTO: Channel switching set to Auto – Auto Sequence Viewing Mode enabled
NOTE: By default, Auto Sequence Viewing Mode is enabled when you first power on the wireless
receiver.
•
M: Manual recording enabled
•
A: Motion recording enabled
•
NEW: A new video file has been recorded to the SD card
•
FULL: The SD card is full
NOTE: The “Full” light will only appear if Overwrite is disabled. For details, see “Overwrite” on
page 37.

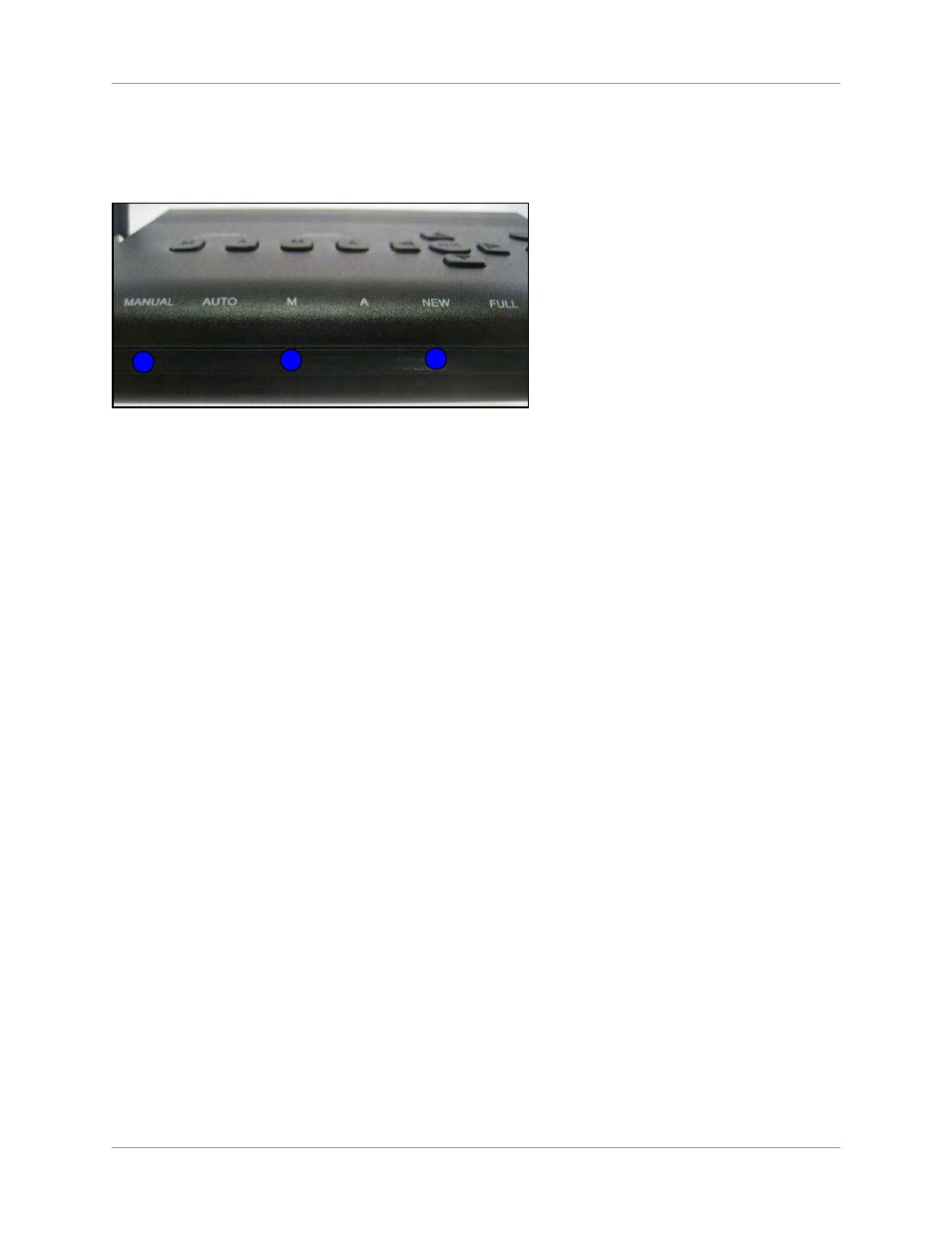

Figure 3.2 LED indicators on wireless receiver
