Connecting the Wireless Receiver
14
Connecting the Wireless Receiver
To set up the wireless receiver:
1. Connect the Black cable from the AV cable to AV Out port on the left panel of the receiver.
Connect the Yellow video cable and White audio cable (mono) to your TV, DVR, or
observation system.
2. Insert the included SD card into the SD Card slot on the right panel of the receiver until you
hear a “click.”
NOTE: The receiver is compatible with most major brands of SD card up to 16 GB. For recording
times on SD cards, see “Appendix F: Estimated Recording Times on SD Cards” on page 53.
3. Place the receiver in a place that will have a clear reception to your camera*.
4. Connect the cable from the power adapter to the 9V DC port on the left panel of the receiver,
and then connect the power adapter to an outlet or surge protector.
5. Change the video input on your TV or monitor to the corresponding input of the video cable
(i.e. Video 1, Video 2, Auxiliary, etc.).
6. OPTIONAL : Connect the included IR extender to the IR Extension port on the right panel of
the receiver. Use the IR extender to if you want to hide the receiver from plain sight. You can
conceal the sensor of the IR Extender in a bookcase, flowers, etc., and still fully control the
system using the included remote control.
*Avoid installing in a location which requires the wireless signal to pass through cement, concrete, and metal
structures. This will reduce the range of transmission.
POWER
ADAPTER
IR EXTENDER
SD CARD
RECEIVER (RIGHT PANEL)

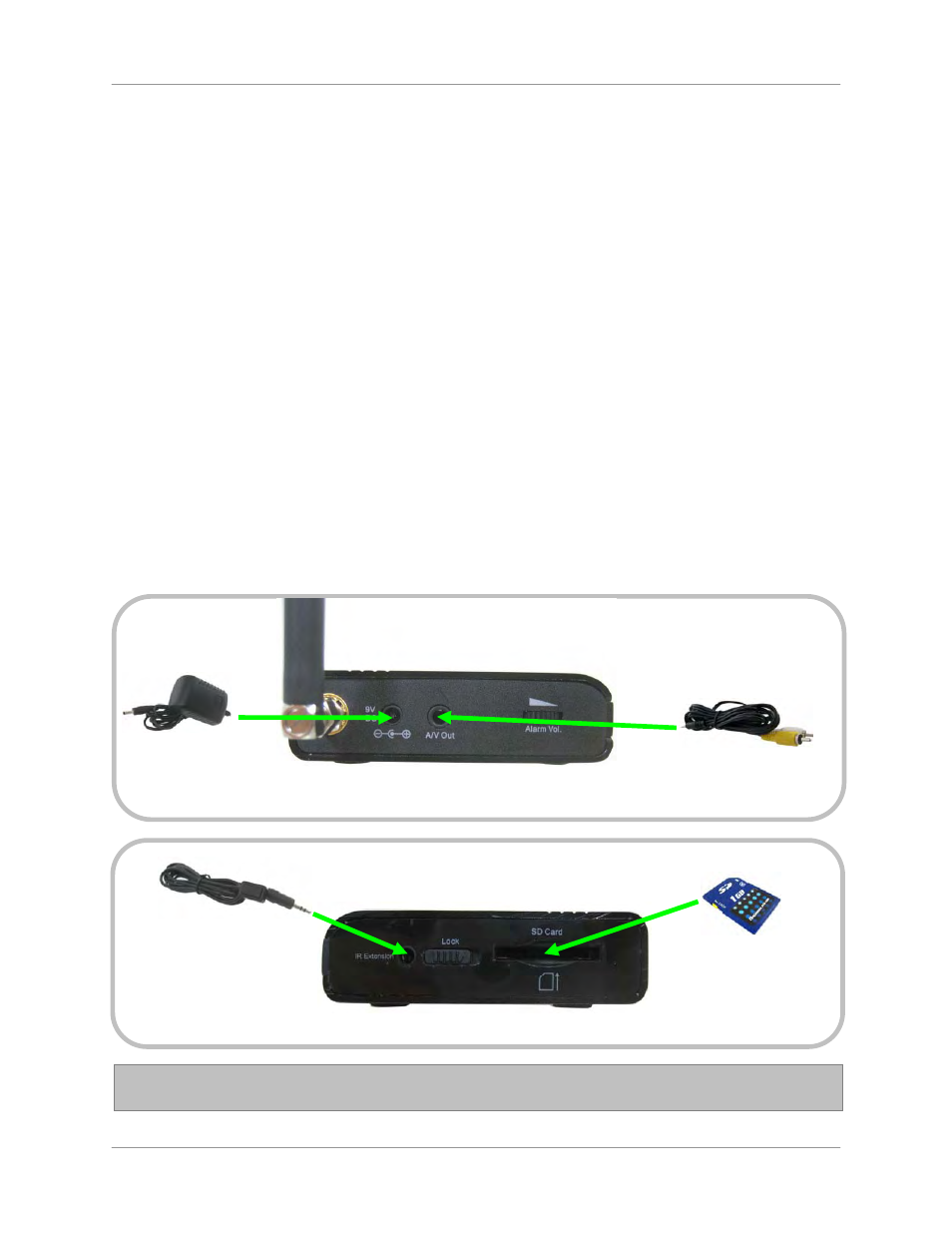

Figure 3.0 Connect the power adapter, and AV cable
Figure 3.1 Connect the IR extender (optional) and insert the SD card
AV CABLE
RECEIVER (LEFT PANEL)
