Camera
11

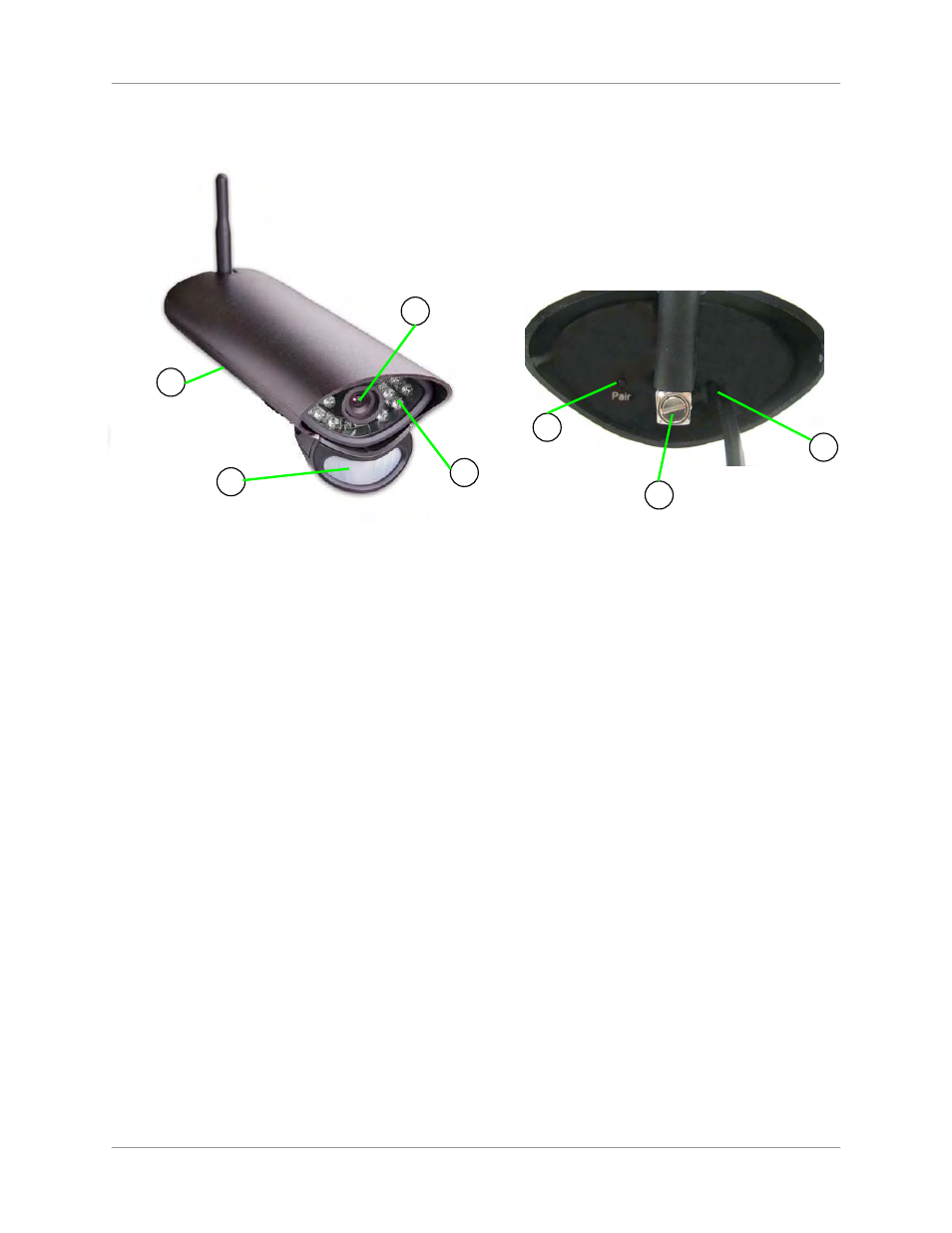

Camera
1. PIR Sensor: Passive IR motion sensor for more accurate motion recording.
2. Microphone: Built-in microphone underneath camera body.
3. Lens: Camera lens.
4. Night Vision IR: Night vision IR LEDs used for viewing in complete darkness.
5. Pair: Pairing button. For more details, see “Pairing” on page 38.
6. Antenna: Wireless antenna.
7. Power Cable: Connect the included power adapter to the cable extending from the camera.
3
4
1
5
6
7
2
