Configuring the Windows XP Firewall
4. Select
UDP.
5. Click
OK.
To add your TCP port to the firewall:
1. On
the
Exceptions tab, click the Add Port button. The Add a Port window
displays.

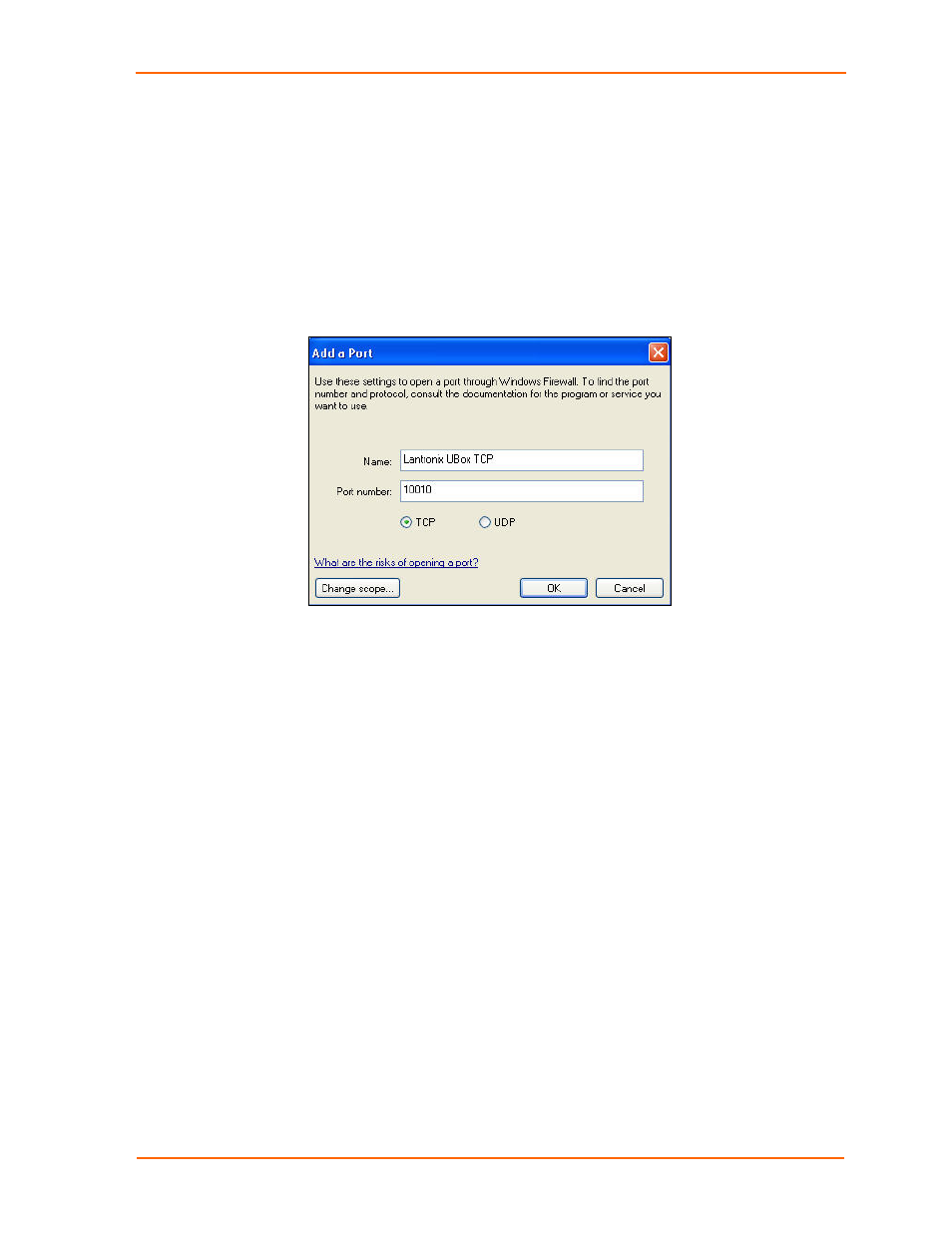

Figure 7-12. Add a Port Window - TCP
2. In
the
Name field, enter something descriptive like “Lantronix UBox TCP.”
3. In the Port number field, type 10010.
4. Select
TCP.
5. Click
OK.
To close the remaining windows:
1. Click
the
OK buttons on the remaining windows.
Your firewall is now configured to allow access to the Lantronix UBox. If you have
multiple computers, please repeat these steps for every computer that will access the
UBox.
