Configuring the Windows XP Firewall
Step 2 – Access Your Firewall Software (Windows XP and XP
Service Pack 1 Only)
You need to know your UBox's UDP/TCP port numbers and IP address before
configuring your firewall. If you already know this information, skip ahead to
Add Settings to the Firewall to Allow Communication with the UBox
To obtain your UDP and TCP port numbers:
The Lantronix UBox defaults to using UDP port 10010 and TCP/IP port 10010.
If you have not changed these settings, we will use these port numbers when we
configure your firewall. If you have changed the UBox's UDP and/or TCP port
numbers, use that number instead of 10010.
To obtain your IP address:
To obtain your IP address:
1. Open the Lantronix UBox application.
2. Click
the
Servers tab and locate your UBox.
3. Select your UBox. Its IP Address displays in the Server Details area.

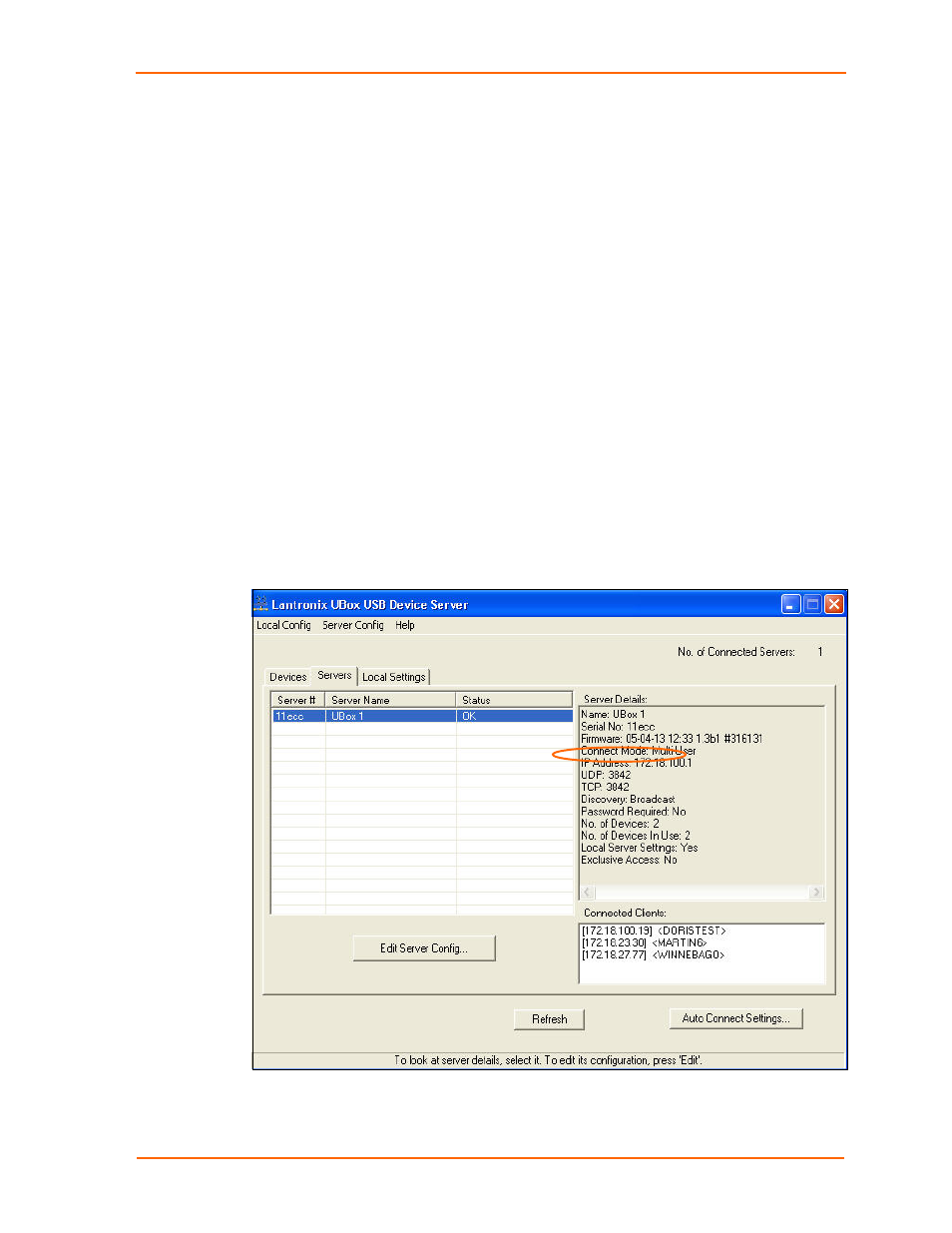

Figure 7-4. IP Address on Servers Tab
Note:
If the Edit Server Configuration Network tab is set to Automatic,
DHCP or Zeroconfig, the UBox is obtaining an IP address dynamically.
