A: Status Light Behavior
The Lantronix UBox comes equipped with ten LED lights that report the status of the
Lantronix hardware.

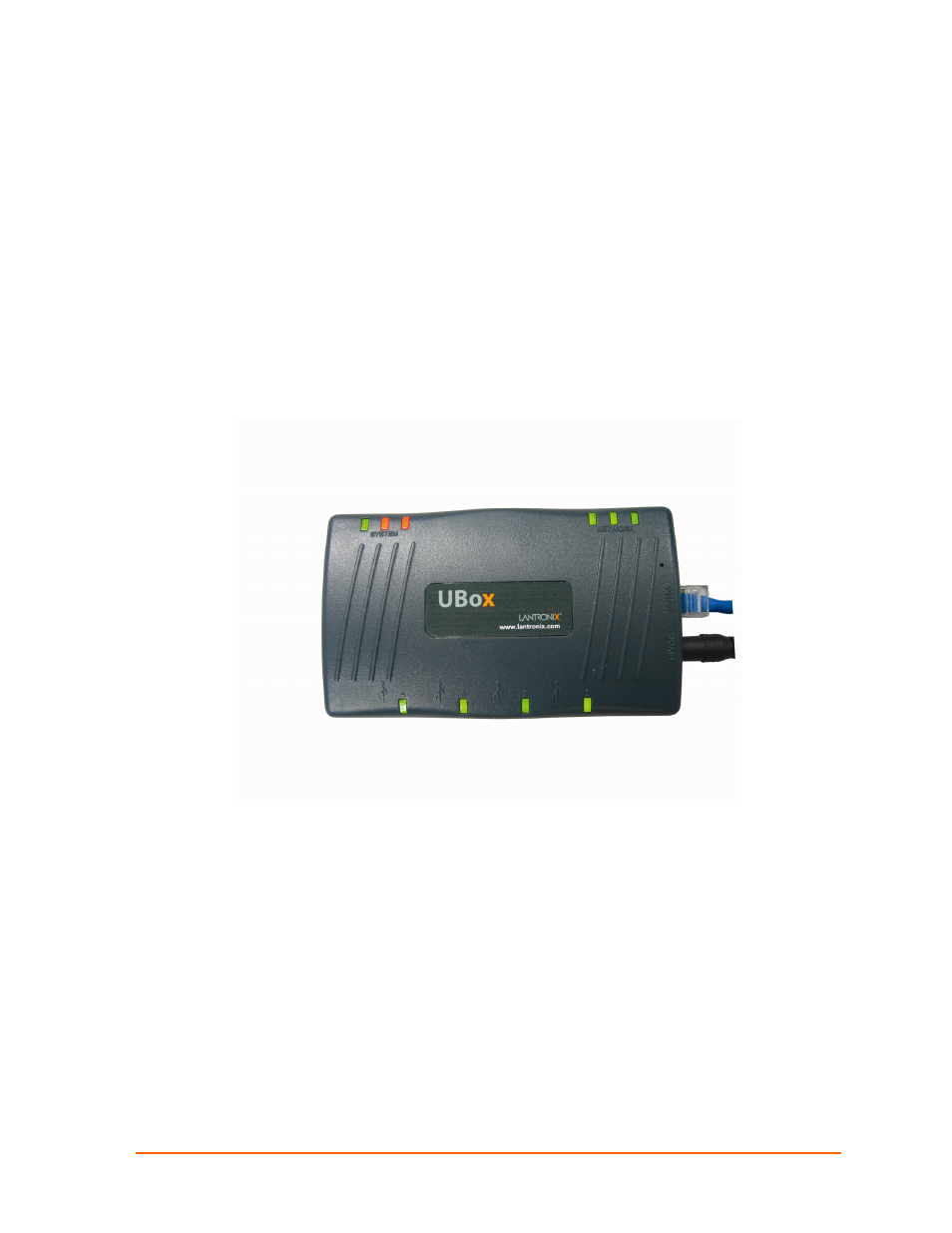

Figure 7-3. Position of Status Lights on the UBox
SYSTEM
NETWORK
1
2 3
1
2 3
4 3 2 1
USB
The meaning of these lights changes depending on whether the UBox is booting up
(you have just turned on the UBox), or if it is running.
The two tables on the following pages show all of the possible states of these LED
lights and what they mean.
Note:
If you are having problems with your UBox, please use this information
in conjunction with the information in
to diagnose the
problem.
UBox User Guide
58
