Commercial Pool Heaters
INSTALLATION Continued
B.
C.

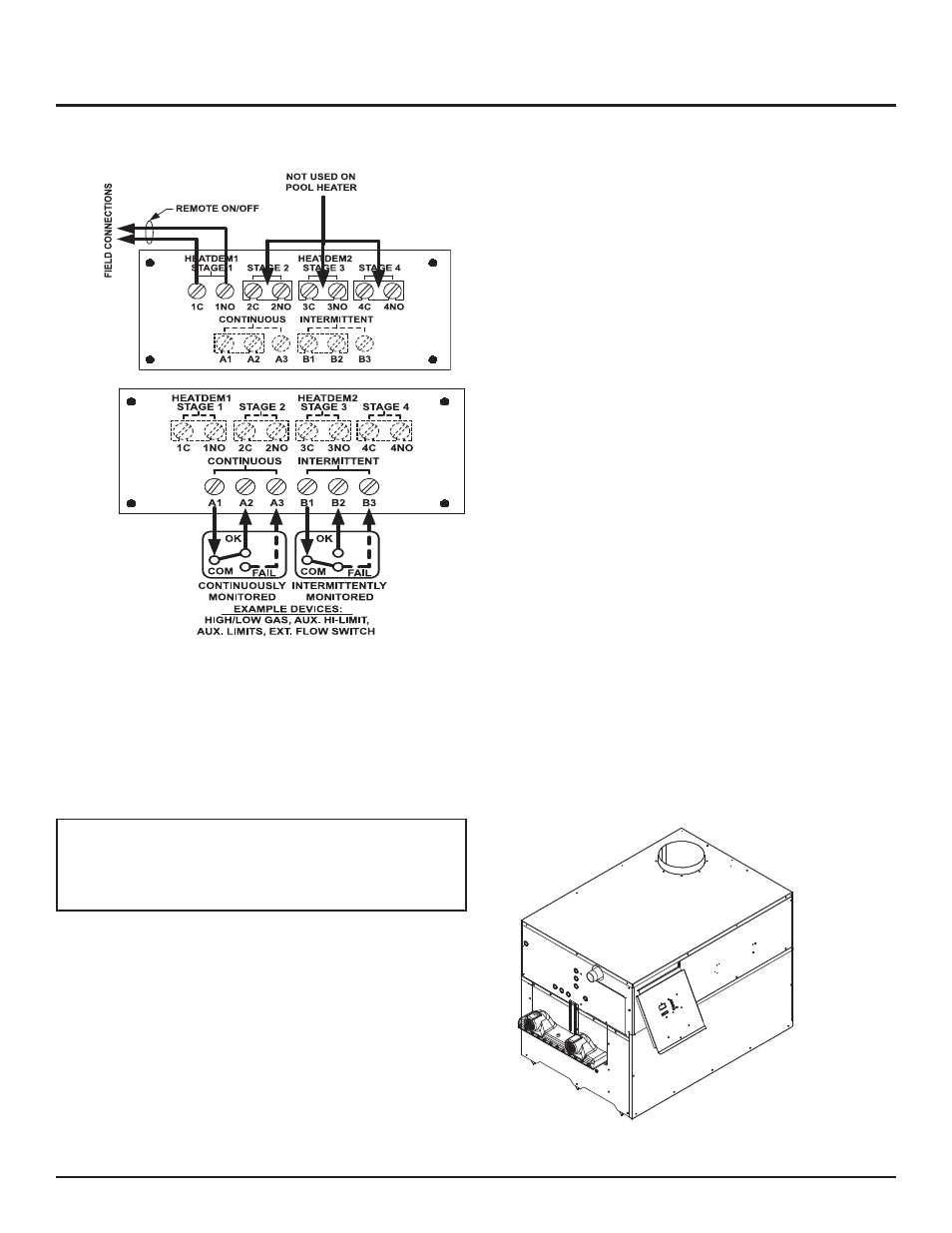

Figure 40 (A-C) - Terminal Strip Connection
ƽ
WARNING: If you do not follow these
instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss
of life.
OPERATION
FOR YOUR SAFETY READ BEFORE
OPERATING
A. This pool heater does not have a pilot. It is equipped with an
ignition device which automatically lights the burner. Do not
try to light the burner by hand.
B. BEFORE OPERATING, smell around the pool heater area for
gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle to the floor.
WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
• Do not touch any electric switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to turn the gas control lever. Never use
tools. If the lever will not turn by hand, don’t try to repair it,
call a qualified service technician. Force or attempted repair may
result in a fire or explosion.
D. Do not use this pool heater if any part has been under water.
Immediately call a qualified service technician to replace the
pool heater. The possible damage to a flooded pool heater can
be extensive and present numerous safety hazards. Any
appliance that has been under water must be replaced.
Lighting Instructions
1. STOP! Read the safety information.
2. Program the temperature control to the desired settings (see
Operating Temperature Control, page 40).
3. Loosen knurled screw at the bottom of control panel cover (see
Figure 41).
4. Grasp the bottom of the control panel cover and pull out.
5. Locate the ON/OFF switch inside control area. Switch is located
to the left of the pull out control circuitry tray (see Figure 42).
6. Turn the power switch to the “OFF” position.
7. This pool heater is equipped with an ignition device which
automatically lights the burners. Do not try to light the burners
by hand.
Figure 41 – Control Panel Cover
