Installation and Service Manual
COPPER OR CPVC
(SEE TABLE)
RECOMMENDED
ISOLATION VALVE
ALTERNATE POOL
RETURN SENSOR
LOCATION
VALVE
TO POOL
3'
MINIMUM
FROM FILTER
AUTOMATIC
BYPASS VALVE
PVC MINIMUM
(SEE TABLE)
FACTORY POOL
RETURN SENSOR
LOCATION
110° LIMIT
20' MAXIMUM
MODEL NO. BYPASS PIPE SIZE
CP (N,L) 501 - 751
CP (N,L) 991 - 2071
2” MINIMUM
2 1/2” MINIMUM

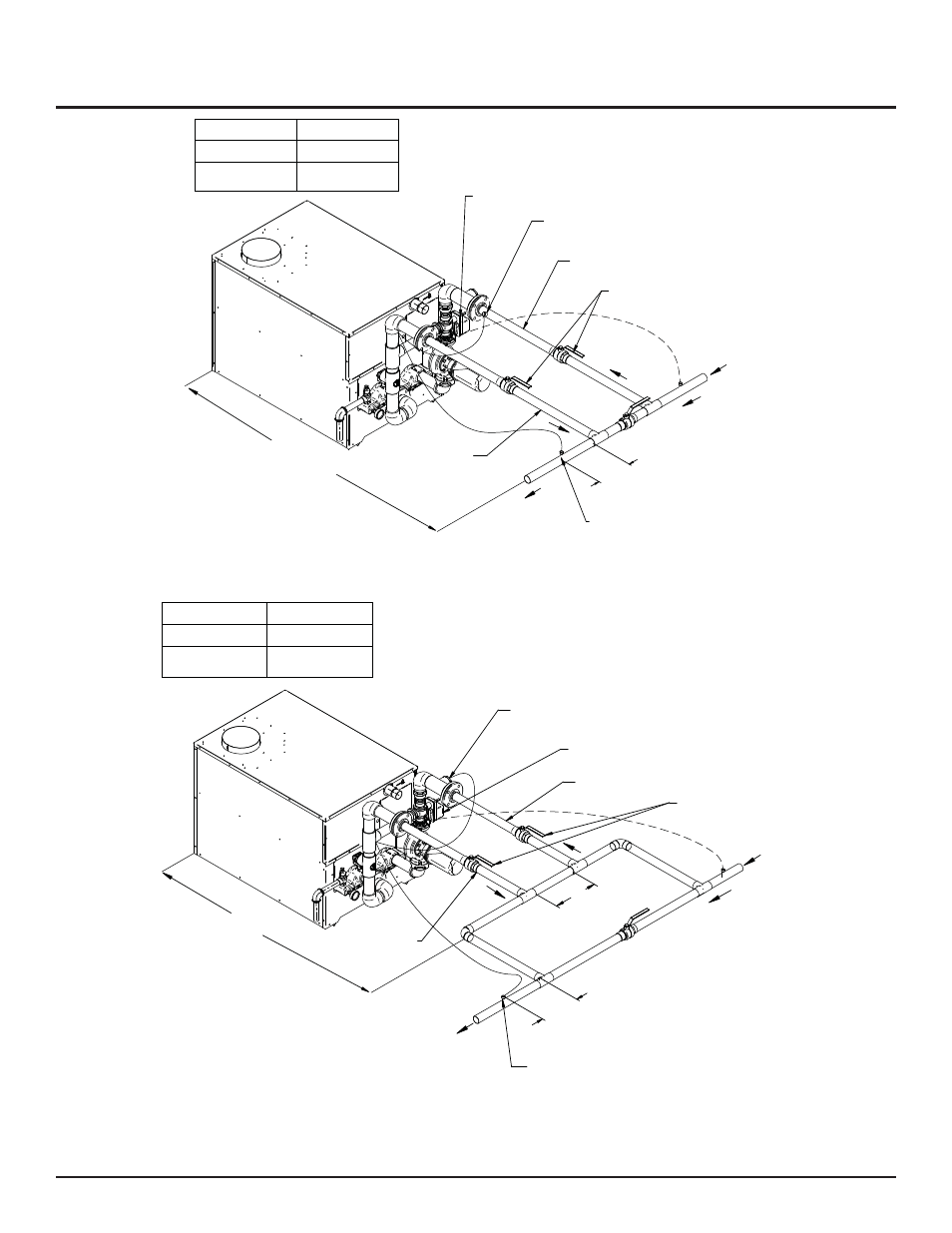

Figure 34 - Heater is Within 15 Feet of Pool Piping
COPPER OR CPVC
(SEE TABLE)
RECOMMENDED
ISOLATION VALVE
ALTERNATE POOL
RETURN SENSOR
LOCATION
VALVE
TO POOL
FROM FILTER
AUTOMATIC
BYPASS VALVE
PVC (SEE TABLE)
FACTORY POOL
RETURN SENSOR
LOCATION
110° LIMIT
20' MAXIMUM
3'
MINIMUM
12"
OR FOUR PIPE
DIAMETERS
MAXIMUM
MODEL NO. BYPASS PIPE SIZE
CP (N,L) 501 - 751
CP (N,L) 991 - 2071
2” MINIMUM
2 1/2” MINIMUM
Figure 35 - Heater is Beyond 15 Feet of Pool Piping
33
