Little Wonder Xtra - Manual (Page 3)

The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects or other reproductive harm.
13 Blade cover reduces the risk of flying
debris and direct contact with the feet or
hands.
10 Cross blade set rotates when engine speed
is increased above idle.
52 Wheel for moving and guiding edger.
27 Grass shield reduces flyback of stones
and foreign material.
68 Cross-brace attaches downwards on
handles
35, The handles of the Xtra Lawn
36 Edger are held by both hands.
50 The ON/OFF switch and throttle
trigger which increases speed of engine
for automatic safety clutch to engage and
thus rotate blade.
85 Handle nut for holding handles onto
housing (and adjusting anti-vibration of
handle).
71 Height adjustment for adjusting depth of
cutting blade.
P
ARTS AND
C
ONTROLS
DANGER!
KEEP HANDS & FEET AWAY
ROTATING BLADE
DIRECTION OF ROTATION
WARNING
KEEP INSIDE OF BLADE GUARD CLEAN,
ESPECIALLY IN WET CONDITIONS. A CLOGGED
GUARD CAN SLOW DOWN OR STOP BLADE
ROTATION AND MAY CAUSE DAMAGE TO
AUTOMATIC SAFETY CLUTCH. ALWAYS OPERATE
BLADE AT HIGH SPEED WHEN EDGING.
3
Key #21
Key #22
Key #25

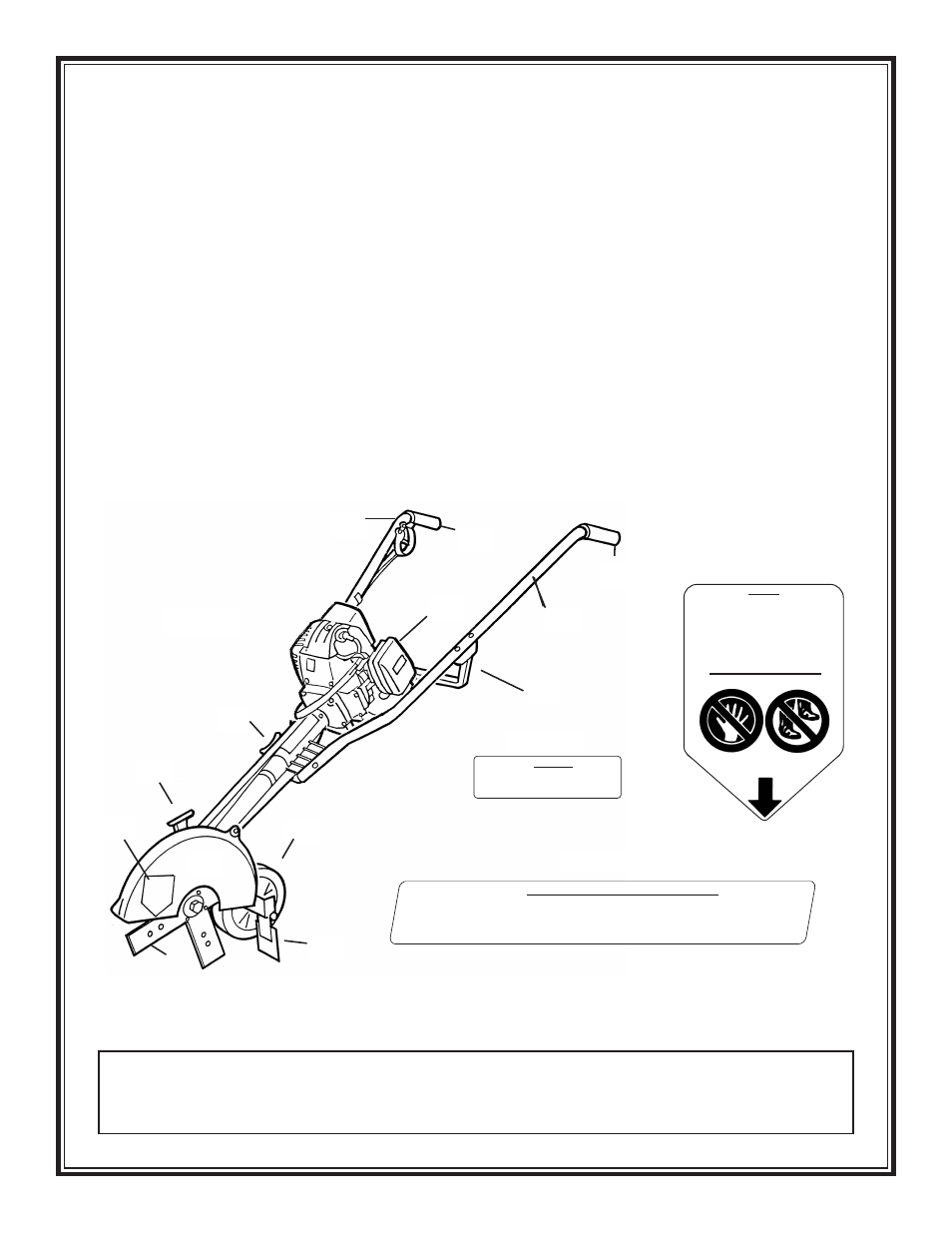

FIG 1
WARNING
● ALWAYS REPLACE FUEL CAP SECURELY.
● METAL PARTS OF ENGINE HOT DURING &
AFTER USE. DO NOT TOUCH.
WARNING - TO PREVENT SERIOUS INJURY
FOLLOW ALL SAFETY PRECAUTIONS IN OPERATOR MANUAL - IMPROPER USE CAN CAUSE SERIOUS OR FATAL
INJURY
● OBJECTS MAY BE THROWN OR RICHOCHET IN ALL DIRECTIONS - ALWAYS WEAR EYE PROTECTION
● KEEP BYSTANDERS AT LEAST 50FT (16M) AWAY ● ALWAYS WEAR EAR PROTECTION ● WEAR SNUG FITTING
CLOTHING
● MINORS SHOULD NEVER BER PERMITTED TO USE THIS EDGER ● WEAR STURDY SHOES WITH
NON-SLIP SOLES ● DO NOT LEND, RENT OR SELL THIS EDGER WITHOUT THE OPERATOR MANUAL.
(FORM No.43133)
▲
! WARNING:
50
36
21
35
25
68
85
71
52
10
13
27
22
