Lake Shore Model 642 Electromagnet Power Supply User’s Manual
2-6 Magnet System Design

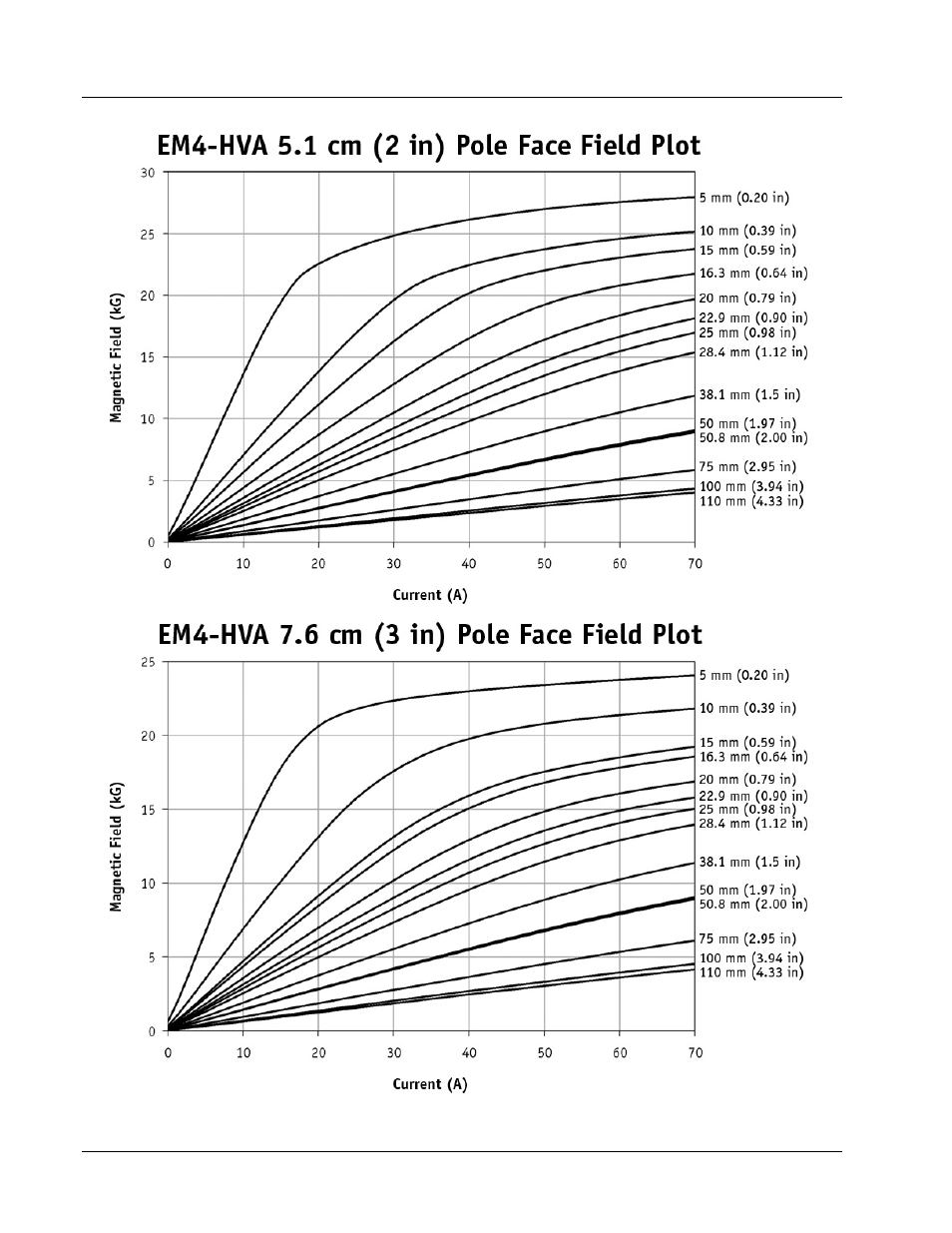

Figure 2-5. Typical Curves of Field vs. Current for Various Air Gaps and Pole Cap Sizes (Sheet 2 of 3)
