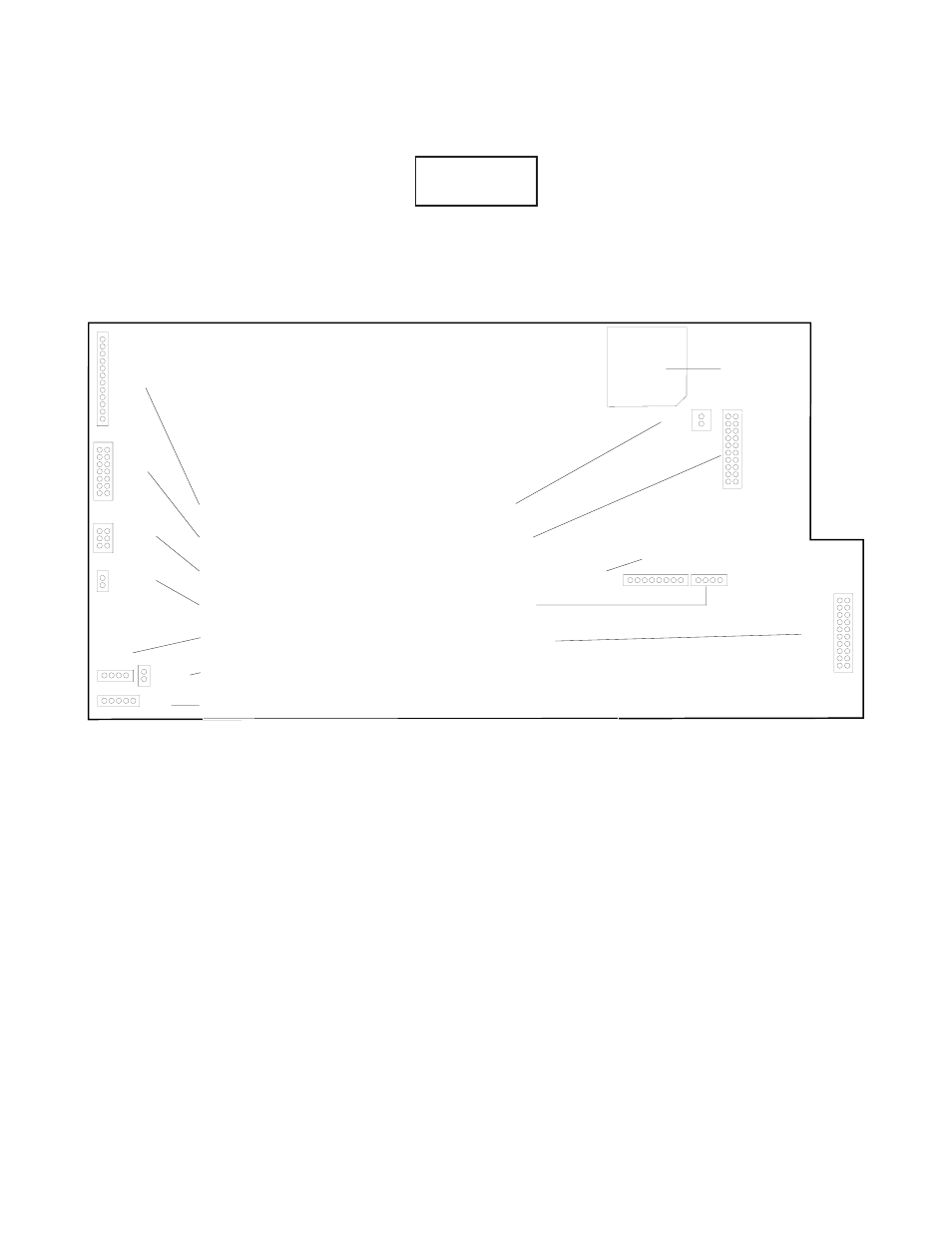

Master Board PCB Connectors
CAUTION
During the assembly take care that all CONNECTORS are correctly plugged in!
MASTERBOARD
Component Side
SMD
J5
J2
J13
J11
J9
J6
J12
P1
J10 J3
J4
J1
BACK PANEL PCB MIRROR MOTOR
KEYBOARD PCB ACCESSORY SLOT
AUTO FOCUS PCB CAM and SHUTTER SENSOR
FOCUS MOTOR SLIDE LIFT MOTOR
TRANSPORT MOTOR POWER SUPPLY PCB
SHUTTER SOLENOID
TRAY MOTION PCB
PLCC
PIN-GRID
SOCKET
SM2547-1 Service Manual
Kodak AG, Stuttgart 4-23 03/98
